Locate the main power distribution panel on the driver side dashboard edge behind a removable cover, then verify each slot using the printed layout card before touching any component. This step prevents incorrect removal and helps match circuits like headlights, infotainment, and fuel system accurately.
Each slot is assigned a specific amperage, typically from 5A to 40A, depending on load requirements. Lower ratings protect interior electronics, while higher values handle systems such as radiator fan or ABS. Use a multimeter to confirm continuity instead of relying on visual inspection, since hairline breaks are not always visible.
Under the hood, a secondary panel near the battery contains high-current links for starter, alternator, and cooling systems. These components rarely fail but should be checked if multiple systems stop working at once. Always disconnect the negative battery terminal before inspecting high-load circuits.
Match replacements strictly by amperage and slot position, not by color alone. Incorrect installation can cause overheating or repeated failure. Cross-check the printed layout with the vehicle configuration, as equipment packages may shift circuit assignments slightly.
2013 VW Jetta and GLI Fuse Diagram and Circuit Layout Guide

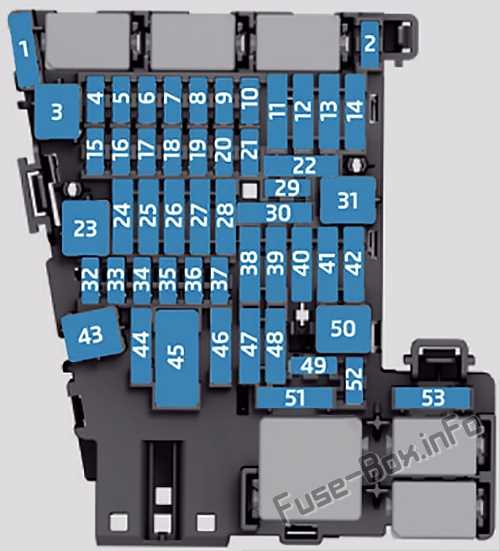

Check the printed layout card inside the side dashboard panel first, as it lists slot numbers, amperage values, and assigned systems such as lighting, infotainment, and engine control.
Each numbered position corresponds to a specific circuit, with ratings typically ranging from 5A to 40A. Lower values are used for cabin electronics like radio and interior lights, while higher ratings support systems such as ABS, cooling fan, and power steering modules.
Use slot numbers for identification rather than relying on color coding, since previous replacements may not match original specifications and can mislead during troubleshooting.

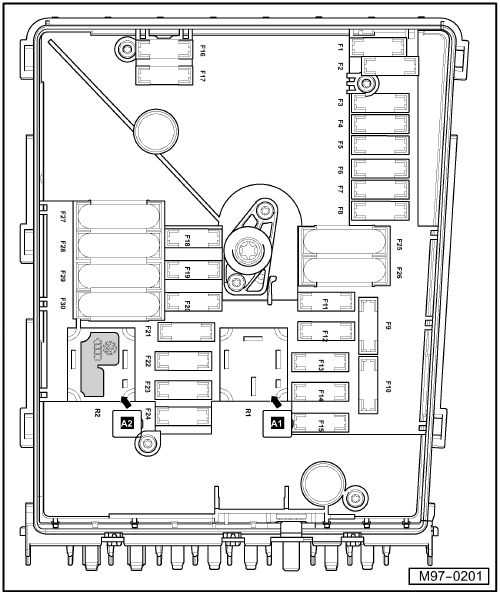

The engine compartment panel near the battery handles high-current protection for starter motor, alternator, and radiator fan. Failure in this area often results in multiple systems shutting down at once.
Compare the layout with the vehicle equipment level, as optional features like heated seats or upgraded audio can shift circuit assignments and change slot usage.
When diagnosing a fault, test continuity across the metal strip inside each component using a multimeter instead of visual inspection, since small breaks may not be visible.
Replace any damaged unit with the exact same amperage rating and ensure it is seated fully into the correct slot to maintain stable electrical flow and prevent overheating.
Where the fuse panels are located in 2013 VW Jetta and GLI models
Open the driver door and remove the side dashboard cover to access the primary electrical panel; it sits at the end of the instrument panel and is held by plastic clips that release with light pressure.
Under the hood, a secondary power distribution unit is positioned near the battery and air intake housing. This section contains high-current links for systems such as cooling fan, ABS, and charging circuit, and is protected by a snap-on cover that must be lifted straight up.
A third location may be found above the driver footwell behind a trim panel, depending on configuration, where additional relays and smaller current protection elements are installed for interior electronics and comfort features.
