Use the cabin and engine compartment panel maps to quickly identify blown safety links and restore power without guesswork. The interior block is located beneath the dashboard on the driver’s side, while the under-hood unit sits near the battery, each containing clearly numbered slots tied to specific circuits such as lighting, audio system, climate control, and ignition components.
Interior panel details: slots 1–7 typically control accessories like the radio unit, dashboard illumination, and power outlets; slots 8–15 are tied to safety systems including airbags and central locking. If the infotainment system stops responding, inspect the corresponding 7.5A or 10A element in the lower section. Always match amperage ratings exactly to prevent wiring damage.
Engine bay panel specifics: higher-capacity links (30A–80A) manage critical systems such as the starter motor, ABS module, and cooling fans. A no-start condition with intact battery charge often points to a failed high-amperage link near the main relay position. Check for visible breaks in the metal strip or discoloration inside the transparent casing.

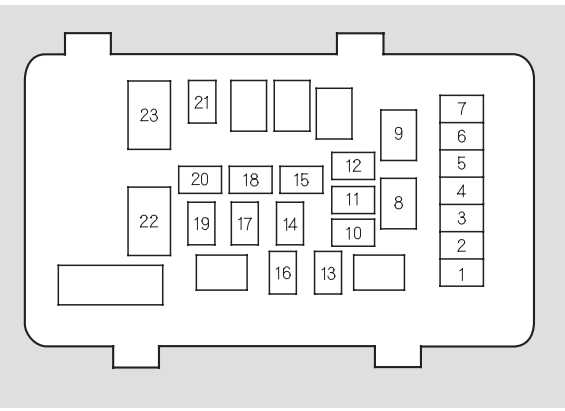

For precise identification, refer to the numbering printed on the panel cover; it corresponds directly to the circuit allocation chart. Misplacing even a single element can disable multiple systems, so verify placement before powering the vehicle. Keep a spare set of correctly rated components in the glove compartment to handle unexpected electrical interruptions on the road.
07 Honda Accord Fuse Diagram: Practical Guide to Fuse Identification and Troubleshooting
Check the interior panel under the dashboard first: use the legend printed on the cover to match each circuit breaker to its function, then verify amperage values before pulling anything out. For this 2007 mid-size sedan, cabin box slots typically control lighting, audio unit, and accessory sockets, while the engine bay block handles radiator fan, ignition coils, and ABS module. If a circuit stops working, compare the rating stamped on the plastic body (e.g., 10A, 15A, 20A) with the slot specification to avoid installing a higher value that could damage wiring.
For quick identification, rely on color coding: red usually indicates 10A, blue 15A, yellow 20A, and green 30A. Use a puller tool stored in the panel cover to remove the component without bending terminals. Inspect the metal strip inside–if it is broken or shows burn marks, replacement is required. When diagnosing intermittent faults, test continuity with a multimeter instead of visual inspection alone, since hairline fractures may not be visible.
Engine Bay Block Layout
The under-hood distribution box sits near the battery and contains high-load protection elements. Key slots include the main relay supply, cooling fan circuits, and charging system links. If the vehicle fails to crank or shows no power at all, check the large 40A–100A links first; these act as primary safeguards for the entire electrical network. Corrosion on contacts is common in this area–clean terminals with electrical contact cleaner and ensure tight seating after reinstalling components.
Common Fault Tracing Tips
When multiple systems fail simultaneously, trace shared power lines rather than inspecting each slot separately. For example, loss of radio, dome light, and power mirrors often points to a single accessory line interruption. Always switch off ignition and disconnect the negative battery terminal before working on high-current sections. Keep spare components of the correct ratings in the glove box to reduce downtime during roadside issues.
How to Locate Interior and Engine Bay Fuse Boxes in a 2007 Honda Accord
Open the driver’s door and check the lower left section of the dashboard, just above the footwell panel; the interior electrical block is hidden behind a removable plastic cover that can be pulled off without tools. Use a flat trim tool if the panel feels tight. Inside, you’ll see rows of mini blade protectors with labels stamped on the back of the cover. Key positions include slots for lighting, radio, power windows, and climate control. For quick orientation:
- Driver side, beneath dashboard edge
- Behind snap-on panel near hood release lever
- Label guide printed on inner cover surface
- Access without removing screws
Lift the hood and move to the right side of the engine compartment (passenger side in left-hand drive models) to find the main power distribution box. It sits near the battery and is secured with a clipped lid; press the side tabs and lift upward. Inside are larger cartridge-style protectors and relays responsible for ignition, cooling fans, ABS, and charging system. Moisture sealing is integrated into the lid, so reseat it firmly after inspection. For precise identification:
- Locate battery, then look slightly forward and inward
- Rectangular black housing with locking tabs

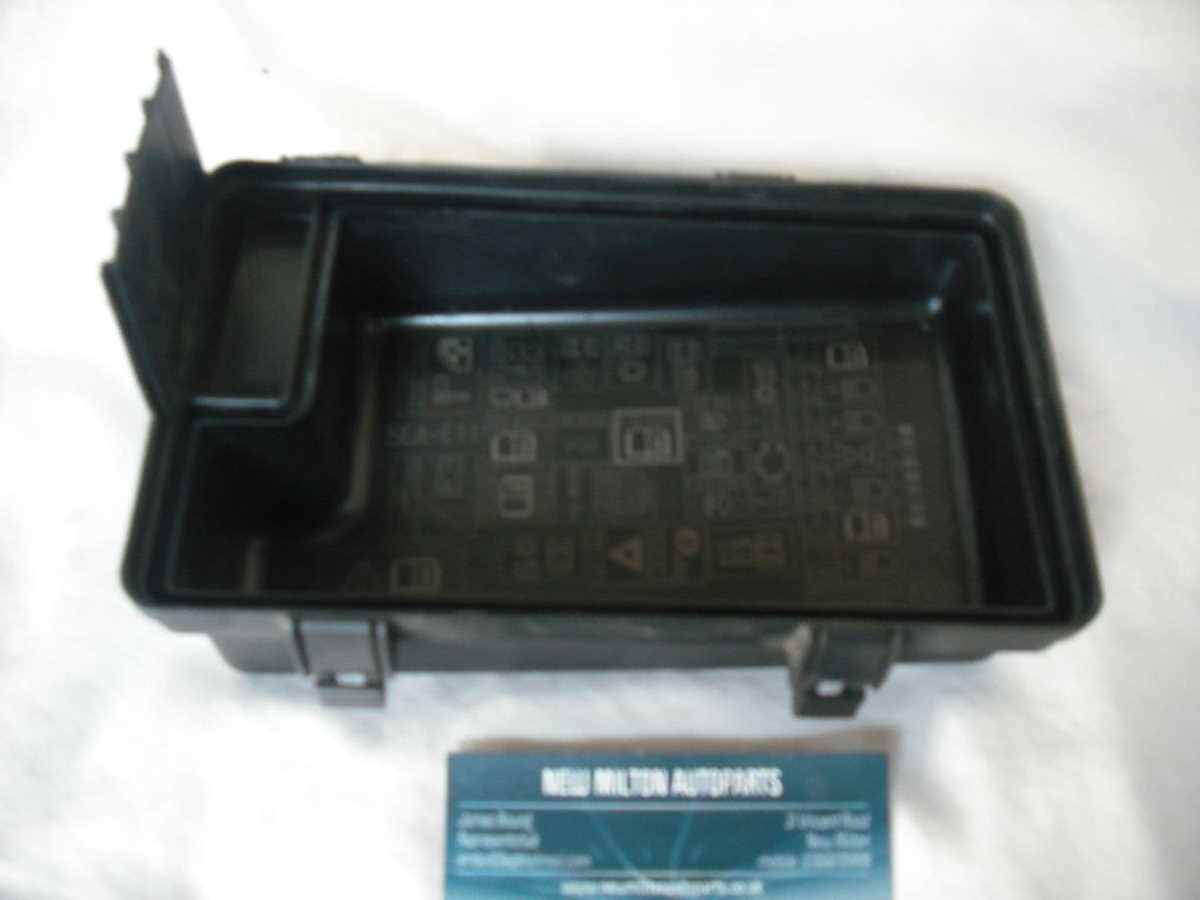

- Internal layout map molded into lid underside
- Use puller tool stored in the box for safe removal
