Check the trunk-mounted power distribution panel first, as many control modules and rear systems are connected through this area. Lift the right-side trunk lining to access a protected compartment containing multiple rows of circuit protectors and relays.
Inside the cabin, locate an additional panel behind a side trim section near the dashboard or footwell. This section manages interior electronics such as seat adjustment, infotainment, and climate control systems.
Under the hood, find another distribution unit near the battery or firewall, enclosed in a sealed housing. This area handles high-current circuits including cooling systems, ignition supply, and braking electronics.
Use the printed layout on each cover to match slots with their assigned circuits, paying close attention to amperage ratings like 5A, 10A, 20A, and 40A to avoid incorrect replacements.
2008 Bentley Continental GT Fuse Diagram and Circuit Identification
Check the layout chart printed on the cover of the electrical panel first, then match each slot number with its assigned circuit to avoid pulling the wrong component and interrupting unrelated systems.
Inside this luxury coupe, power distribution is divided into several protected circuits controlling lighting modules, infotainment, climate control, seat motors, and control units. Each slot is rated in amperes, typically ranging from 5A for signal circuits to 40A or higher for motors and heating elements. Use the rating printed on the plastic housing to confirm proper replacement and prevent overheating or wiring damage.
Identify circuits by tracing labels such as “HVAC blower,” “audio system,” or “control module supply,” which are usually grouped logically. Lower rows often handle cabin electronics, while upper positions may supply higher-load components. Pay attention to relay positions placed alongside blade-style protectors, as they manage switching for items like cooling fans and ignition-controlled accessories.
Use a multimeter to verify voltage at both terminals of each slot. A reading of 12V on one side only indicates a blown element, while equal voltage on both sides confirms continuity. This method avoids guesswork and speeds up troubleshooting for non-working features like power seats or dashboard lighting.
For accurate circuit mapping, compare the panel numbering with the service manual legend, which lists each slot alongside its function and amperage. This cross-reference helps isolate faults in complex systems such as air suspension control or electronic steering assistance without dismantling large sections of the interior.
Locations of interior trunk and engine bay fuse panels in 2008 Bentley Continental GT
Open the passenger-side dashboard end cover first to access the main cabin power distribution unit; it sits behind a trim panel visible when the door is fully opened, and contains low- to mid-amperage slots for interior electronics, climate systems, and control modules.
Additional power centers are placed in separate zones for load distribution:
- Rear compartment: lift the trunk floor panel and locate the unit near the right-side lining, supplying audio amplifiers, battery management, and rear lighting circuits.

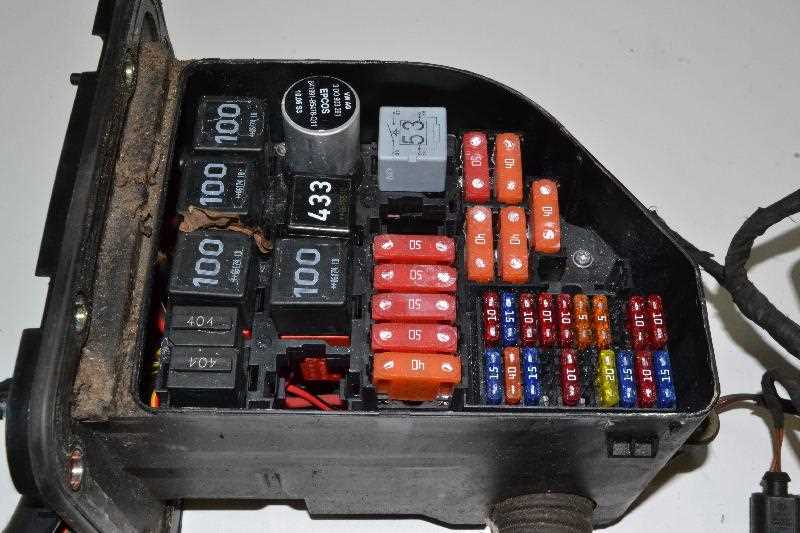

- Engine compartment: positioned near the firewall on the driver side under a sealed cover, handling high-current circuits such as cooling fans, ignition feeds, and engine control systems.
- Secondary cabin area: in some configurations, a smaller carrier may sit beneath the steering column trim for quick-access circuits tied to dashboard functions.
Each section uses labeled covers and color-coded elements; always match slot numbers with the printed legend before removal to avoid disabling unrelated systems.
