Check the interior panel on the driver side near the dashboard edge first, as many electrical faults originate there; remove the cover and verify each slot using a multimeter to confirm current flow before removing any component.
The engine compartment power distribution unit is located near the battery and contains high-load protection links for systems such as cooling fans, ignition, and braking modules. These components typically range from 30A to 60A, and installing an incorrect rating can lead to wiring damage or system failure.
Cabin circuits manage lighting, infotainment, power windows, and accessory outlets. A failed insert often shows a broken metal strip or heat discoloration. Focus on frequently used systems like power sockets and window controls, as they are more prone to overload conditions.
Keep spare inserts and a puller tool in the vehicle for quick checks. Matching each slot with its assigned circuit using the panel legend reduces errors and helps restore proper function without unnecessary replacements.

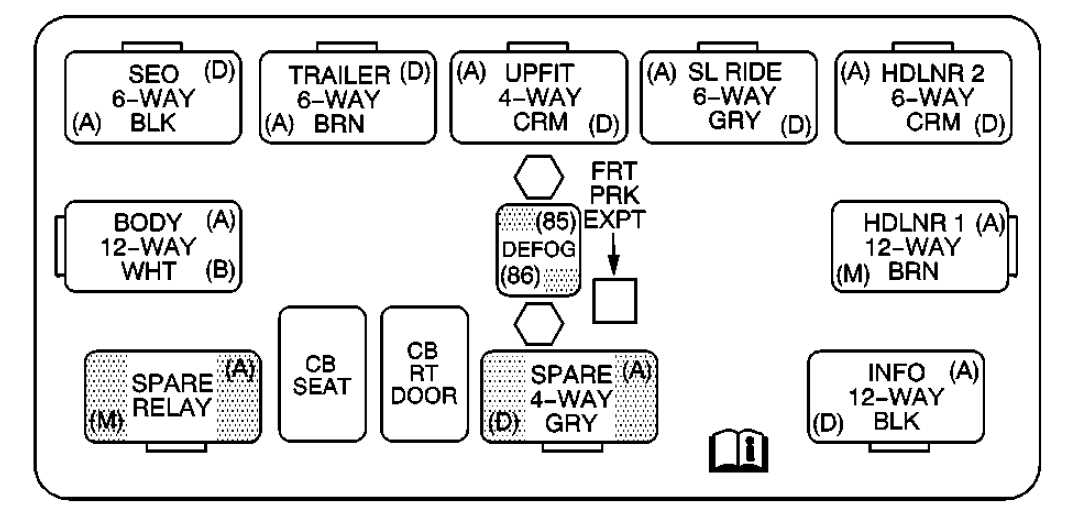

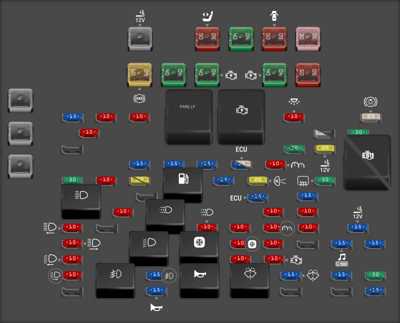

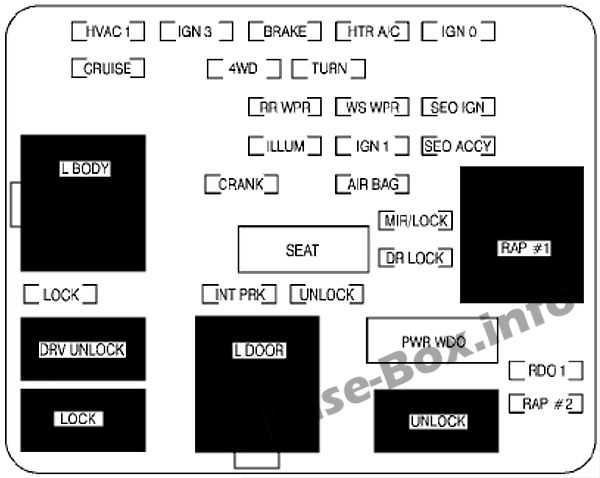

2007 Chevy Silverado 1500 Fuse Diagram with Fuse Box Layout and Circuit Details
Locate the interior electrical panel on the driver side dashboard edge and match each slot to its assigned circuit using the legend printed on the cover; confirm voltage on both contacts with a multimeter before removing any insert.
Low-amperage positions between 5A and 15A typically support interior lighting, radio, and control modules, while 20A to 30A slots handle power windows, seat controls, and accessory outlets.
- 5A–10A for lighting and electronics
- 15A–20A for control modules and smaller motors
- 25A–30A for high-demand interior systems
The engine compartment power distribution unit near the battery contains high-load protection links for cooling fans, ignition, and braking systems, with ratings commonly ranging from 30A to 60A.
Inspect each insert for a broken metal strip or signs of overheating, verify continuity with a tester, and ensure each component is firmly seated to maintain stable electrical flow across all systems.
Fuse box locations under hood and inside cabin with access steps
Open the driver door and remove the side dashboard cover to reach the interior electrical panel; the access point is visible when the door is fully open.
Pull the cover straight outward to release retaining clips, avoiding twisting that can break plastic tabs.
Use a flashlight to clearly see the slot layout, as the panel sits in a recessed position behind trim.
Check the legend printed on the inside of the cover to identify each circuit before removing any insert.
Release the hood latch and locate the main power distribution unit near the battery; it is housed in a sealed plastic enclosure designed for high-current components.
Press the locking tabs on both sides of the cover and lift it upward carefully without using metal tools that may crack the housing.
Disconnect the negative battery terminal before handling high-load elements and ensure each insert is fully seated after inspection to maintain stable electrical connection.
