Start by locating the main power distribution block, typically found under the dashboard on the driver’s side. Removing the panel cover will give you access to the various circuit connectors, each responsible for different electrical components in your vehicle. The cover will often have a map showing which slot corresponds to each system, such as lighting, climate control, or power windows.
When troubleshooting electrical issues like non-functioning lights or malfunctioning electronics, check the appropriate connections for damage. Identifying a blown component involves simply removing the part from its slot and visually inspecting it. If the metal strip inside the piece is broken, it’s time to replace it.
After identifying the correct spot and removing the faulty item, replacing it is simple. Use a component of the same amperage and ensure it fits securely. Misplaced or incorrect amperage parts can lead to more serious electrical issues, so be sure to double-check specifications before proceeding with the replacement.
2006 Focus Power Distribution Layout
Start by identifying the two main electrical blocks: one under the dashboard and the other in the engine compartment. These blocks control various systems such as lighting, air conditioning, and windows. The first panel, located beneath the steering wheel, handles internal circuits, while the one under the hood manages high-power components.
Driver-Side Fuse Panel
On the driver’s side, behind a plastic cover, you’ll find the first set of connections. These are mostly responsible for the interior components like the radio, windshield wipers, and seat adjustments. Each slot will be clearly marked with a number, which correlates to a specific system. If the radio or dashboard lights stop working, the issue likely lies here.
For easier troubleshooting, always have a flashlight on hand to inspect the inside of the panel. Pull out the faulty parts using a fuse puller or tweezers to avoid damaging any surrounding components. Checking the amperage on the side of the part helps ensure you replace it with the correct value.

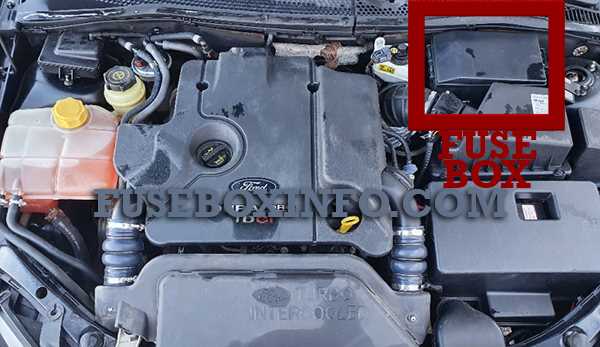

Engine Compartment Fuse Block
The second block, located under the hood, governs more powerful components such as the headlights, alternator, and AC compressor. This block is more complex, with high-amperage connections that require more caution. Use a multimeter to check the components for continuity before replacing them.
It’s important to replace blown parts in this section with high-quality replacements, as these are critical for the vehicle’s overall function. If electrical failures occur with major systems like the alternator or headlights, inspect this area first. As these parts are crucial to safe operation, always double-check that each component is securely connected after installation.
Be sure to check the manual for a detailed layout of the engine compartment fuse block. Knowing which circuit corresponds to which system will save valuable time during troubleshooting. The layout map is often located directly on the cover, but if it’s missing, refer to the manual for accurate references.
In both panels, a damaged fuse can usually be identified by looking for a broken or burnt wire inside the component. Replacing the part with one of the same amperage is critical to prevent future issues. After installation, check the newly installed parts for proper functionality by testing the corresponding systems before closing the panel covers.
Locating the Main Fuse Box in a 2006 Focus
The primary power distribution panel is located beneath the dashboard, on the driver’s side. To access it, pull off the plastic cover near the footwell area. Once removed, you’ll see a series of electrical connectors that control various components inside the vehicle, such as the interior lights, dashboard, and entertainment systems.
Steps to Access the Main Fuse Panel
Here’s a simple guide to locate and open the panel:
- Start by sitting in the driver’s seat and looking at the lower corner of the dashboard, near the door.
- Look for the rectangular plastic cover that is held in place by clips.
- Carefully pull the cover away to expose the block inside.
Once the cover is off, you’ll see a grid of fuses, each slot corresponding to a different electrical system. This layout will be marked either on the cover itself or on a label inside the cover to indicate which fuse controls what component.
What to Look for Inside the Panel
Inside, you’ll find multiple rows of circuits. Some of these may be smaller components that regulate the radio, air conditioning, and wipers, while others are more substantial, dealing with higher-power systems like the headlights or alternator. To help with identification, each fuse will be labeled with its respective amperage value.
- The smaller fuses are typically for low-power circuits such as interior lights and radio.
- Large fuses control high-power systems, including headlights, battery charging, and the engine control unit.
Pay attention to the labels on the cover. The numbers next to each fuse correspond to a specific function, and using the layout will guide you in finding the exact fuse that needs to be replaced or checked for damage.
If you notice a malfunction in any of the electrical systems, inspect the components in the panel. To check for issues, pull the fuse out with a fuse puller or a pair of tweezers. If the metal strip inside the fuse is broken, the part is faulty and should be replaced immediately with one of the same amperage.
