Check the panel behind the lower dashboard cover and match each numbered slot with the legend printed on the plastic insert before replacing any blown element; incorrect amperage leads to wiring damage.
The electrical distribution unit in this model uses a horizontal row layout with clearly numbered positions. Lower-value inserts such as 5A or 10A protect sensors, interior lighting, and control modules, while higher ratings like 20A or 30A are assigned to window motors, heater fan, and rear defogger circuits.
Relays are mounted above the main panel and identified by large printed numbers on their housings. These control switching for systems like fuel pump, horn, and wipers. Swapping identical relays is a quick method to confirm faults without specialized tools.
Frequent issues involve lighting failure, non-working wipers, or inactive blower motor. Use a multimeter to test continuity instead of visual inspection, since internal breaks may not be visible. Consistent failures in the same slot point to a short circuit or overloaded component rather than a simple replacement need.

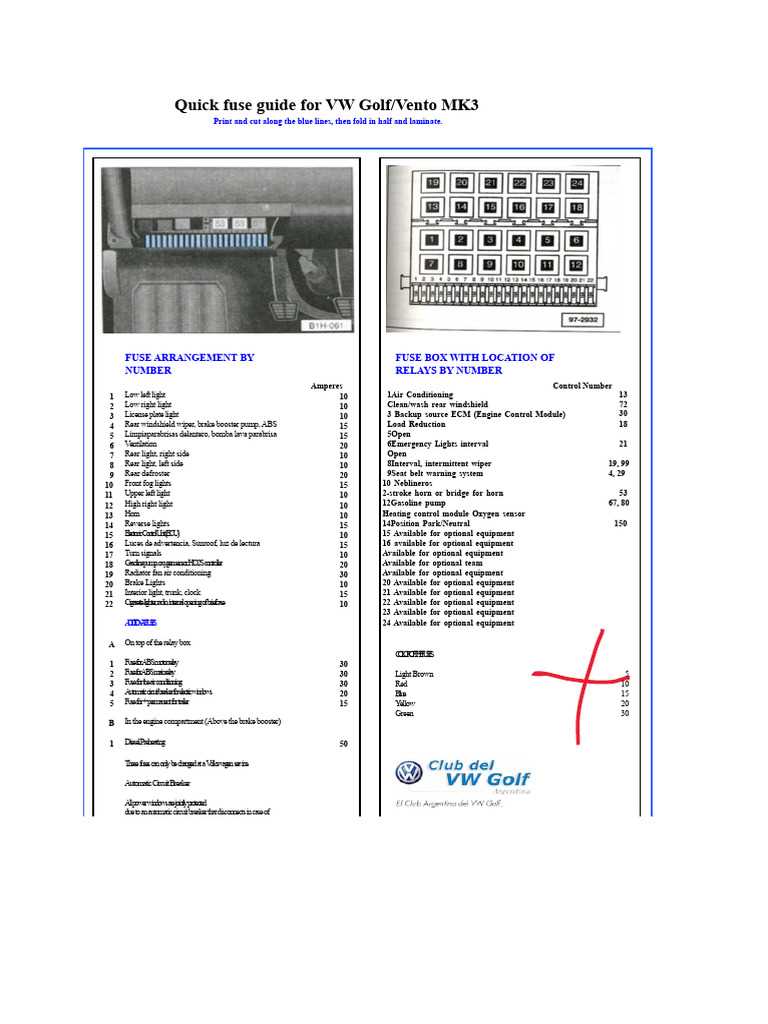

VW Golf 3 Fuse Box Layout with Fuse Numbers and Relay Details
Remove the lower dash cover and read the slot numbering from left to right, then cross-check each position with the legend card to confirm circuit assignment before replacing any element.
The panel uses a linear layout with grouped functions and clearly marked ratings:
- 5A–10A for dashboard instruments, interior lamps, and sensors
- 15A for wipers, horn, and audio system
- 20A–30A for window motors, heater blower, and rear defogger
Relays are mounted above the panel and labeled with large identification numbers, controlling systems such as fuel delivery, cooling fan, and lighting circuits; swapping identical units helps isolate faults quickly.
Dashboard fuse panel location and slot numbering for Golf 3
Check the driver-side lower dash behind the removable cover; the panel sits above the footwell near the steering column, and access requires only a flat trim tool to release clips without damage.
The slot grid is arranged in horizontal rows with sequential numbering from left to right; positions 1–10 usually handle lighting and interior electronics, while mid-range slots support wipers, heater blower, and instrument cluster. Each position uses color-coded ratings such as 5A (beige), 10A (red), 15A (blue), and 20A (yellow), allowing quick visual identification during inspection.
Common slot assignments include low-beam lights near the first row, hazard indicators and horn in central positions, and rear window defogger in higher-amperage locations. Relays are mounted above the panel on a separate carrier, labeled with large numbers like 18, 53, or 167, indicating functions such as fuel pump control, intermittent wiper timing, and load reduction.
Remove power before handling components, then use a puller to extract each insert and inspect the metal strip for breaks; replace only with matching amperage to avoid wiring damage or malfunction in connected systems.
After reinstallation, confirm operation of lights, indicators, and cabin electronics to ensure each circuit responds correctly and no slot was misplaced during service.
