Locate the power distribution panel under the driver’s side dash to identify circuits controlling headlights, ignition, and auxiliary components. Each slot is labeled with amperage and function; keeping a printed or digital reference nearby ensures quick troubleshooting.
Inspecting the connectors and relays regularly prevents unexpected shorts and voltage drops. Corrosion or loose terminals can trigger multiple system warnings, making early visual checks a practical precaution for long-term reliability.
Use a systematic approach to trace each circuit when diagnosing non-functional electronics. Mark active and inactive terminals, and compare readings with the vehicle-specific schematics to isolate issues without unnecessary part replacements.
Replace malfunctioning protective links with exact amperage equivalents to maintain safety and avoid electrical overloads. Avoid improvisation with mismatched ratings, as this can damage control modules or wiring harnesses.
Document modifications and repairs in a personal log. Noting changes to connectors, add-on devices, or relocated terminals helps prevent confusion during future maintenance or upgrades, ensuring consistent performance across the truck’s electrical network.
2004 Avalanche Electrical Panel Layout
Locate the main distribution center under the dashboard on the driver’s side for direct access. Each relay slot is clearly numbered, allowing you to identify circuits for headlights, power seats, and the climate system without guesswork.
Refer to the insert on the lid for amperage ratings. Slots 3, 7, and 12 handle high-current components like the starter motor and cooling fan, while slots 1, 4, and 9 are reserved for interior electronics and auxiliary sockets.
Relay and Connector Mapping
Relays are positioned with their coil terminals facing inward. The horn relay sits near the top right corner, and the fuel pump relay is adjacent to the ignition line. Use a test light to confirm live circuits before replacing any defective elements.
Wire color codes follow GM standards: red/white for constant power, black/white for ground, and yellow/blue for switched ignition. Ensure connections are snug to prevent arcing or intermittent failures during vehicle operation.
Maintenance Tips
Periodically inspect for corrosion around terminals and moisture accumulation. Spraying dielectric grease on metal contacts can prolong service life and prevent voltage drops in critical systems.
Locating the Fuse Compartment in a 2004 Avalanche

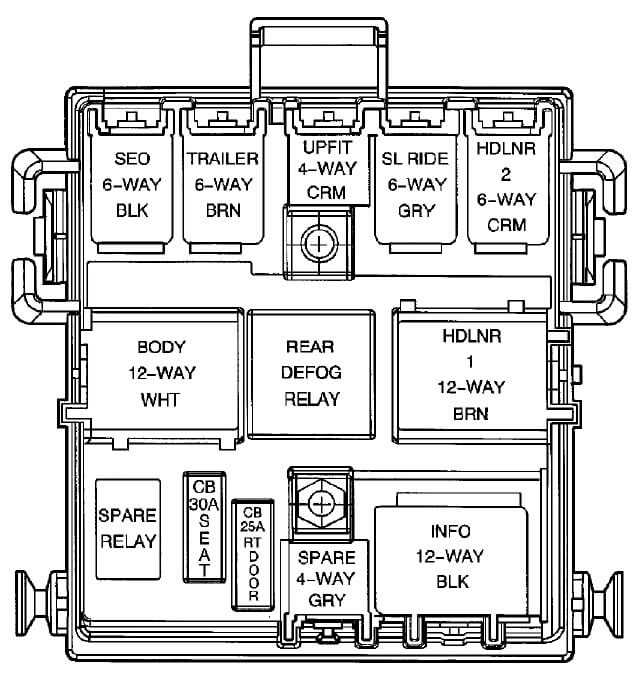

Access the electrical panel under the driver’s side dashboard by opening the lower trim panel. The compartment is mounted near the left kick panel, just above the footwell, secured with two plastic clips that can be gently pried with a trim tool. Removing this cover reveals a series of relays and circuit protectors organized in rows with clear labeling for each system.

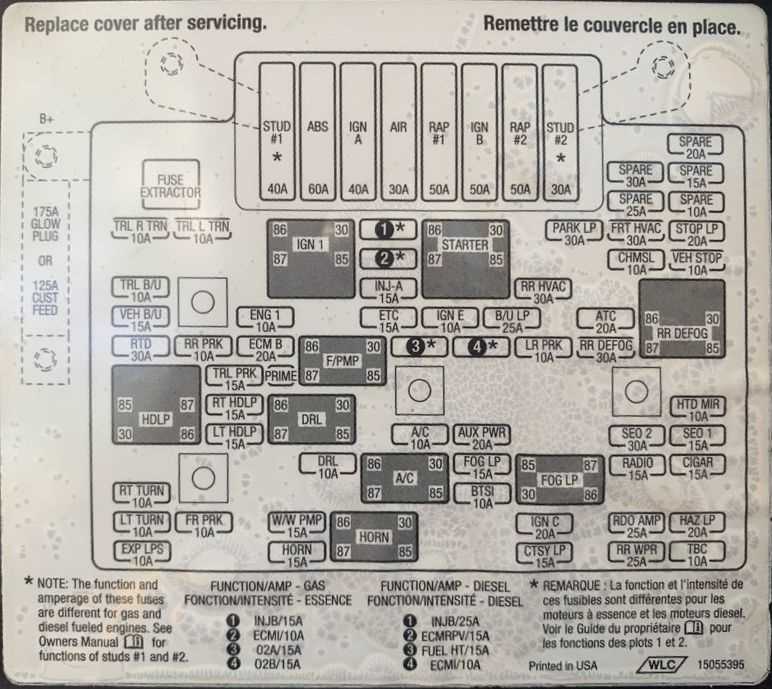

For the engine compartment section, lift the hood and look toward the rear driver-side near the firewall. The protective casing is rectangular and black, with a snap-on lid marked by small ridges for easy gripping. Inside, the main circuits for lighting, cooling, and auxiliary accessories are grouped and can be identified by the printed legend on the inside of the cover.
If an auxiliary panel is present, it is typically found behind the glove compartment. Detach the compartment by releasing the two hinge screws, allowing the glove area to swing down. This exposes the secondary set of power distribution points, primarily handling convenience features such as the stereo system, power outlets, and climate controls, all labeled for quick reference.
