1990 Ford Bronco II Fuse Panel Diagram with Circuit Details and Fuse Locations

1990 ford bronco 2 fuse panel diagram

Check the interior power box under the driver-side dash first and match each slot to its circuit using a labeled chart before replacing any blown link. Use the correct amperage rating–installing a higher value can damage wiring, switches, and connected components.

This compact SUV uses a grouped electrical layout where lighting, ignition, HVAC, and accessory lines are divided across separate protected circuits. Each slot is marked with a number and rating, typically ranging from 5A to 30A, with color-coded inserts indicating capacity. A clear layout reference allows quick identification of circuits tied to issues like non-working headlights, radio failure, or inoperative wipers.

Power distribution relies on both interior and engine-bay protection blocks. The cabin unit handles most low-current systems, while higher-load circuits such as charging and cooling fans are routed through relays and links in the engine compartment. Always inspect for corrosion, loose terminals, or heat damage before assuming a failed component, as poor contact often mimics a blown link.

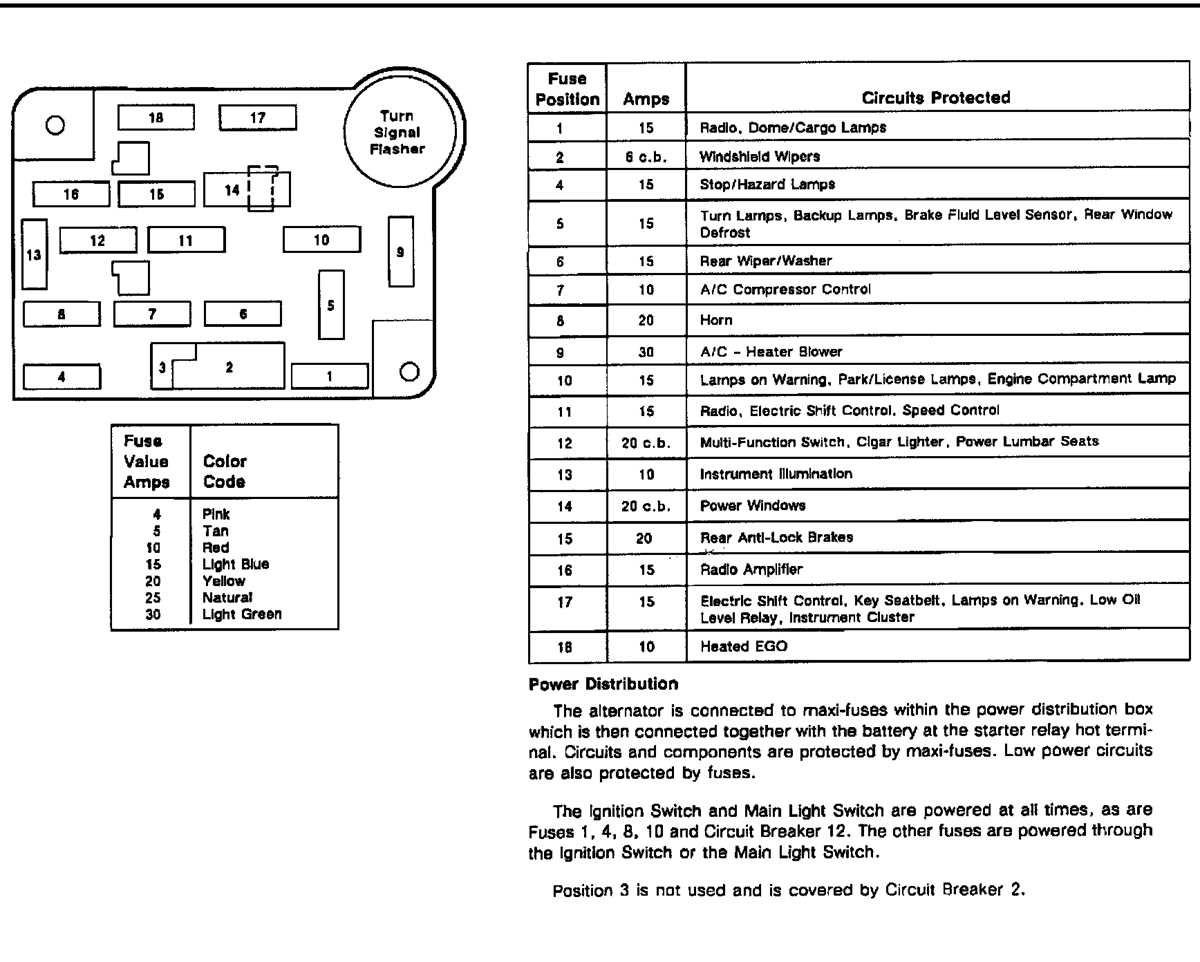

1990 Ford Bronco II Fuse Panel Diagram and Circuit Reference

Match each slot number in the driver-side electrical box with its assigned circuit before replacing any protective link, and confirm amperage printed on the housing or cover insert.

The interior block typically includes 12–16 positions, with ratings from 5A to 30A. Lower values handle dashboard lighting, radio memory, and instrument cluster, while mid-range slots (15A–20A) support wipers, heater motor, and turn signals. Higher ratings are reserved for power windows and accessory outlets, which draw more current during operation.

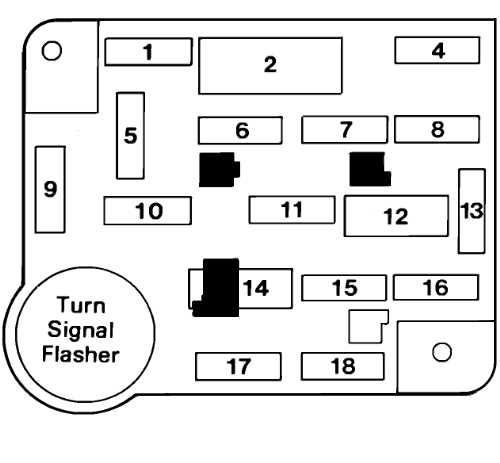

Numbered positions are arranged in rows, often with labeling molded into the plastic frame. For example, slot 1 may control tail lamps, slot 5 handles stop lights, and slot 9 feeds the ignition switch circuit. Cross-checking this layout prevents misplacement during replacement.

Under-hood protection links supplement the cabin unit and carry higher loads such as charging system output and cooling fan supply. These are not interchangeable with interior inserts and should be inspected separately when diagnosing repeated failures or no-start conditions.

Use a test light or multimeter to confirm voltage on both sides of each installed link. A working circuit shows power entering and exiting the slot; a break inside the insert interrupts flow despite appearing intact. Visual inspection alone is not reliable for hairline failures.

When troubleshooting lighting or accessory faults, isolate the circuit by removing the corresponding insert and checking continuity. If the new part fails immediately, trace wiring for shorts near common wear points such as door hinges, steering column joints, and engine bay pass-through grommets.

Always install the same amperage rating and type to maintain circuit protection and avoid overheating wires or damaging switches.

Exact Fuse Panel Location and Access Steps in 1990 Bronco II

1990 ford bronco 2 fuse panel diagram

Look under the driver-side dashboard, slightly left of the steering column, and locate the rectangular electrical block mounted against the firewall.

Access requires lowering your head below dash level and using a flashlight, as the unit is recessed and partially hidden by trim. No tools are needed for basic access, but removing the lower dash cover with a screwdriver improves visibility and hand clearance.

The cover is secured by plastic clips and can be pulled off by hand. Once removed, a printed layout or molded markings inside the cover indicate circuit assignments and amperage values. Keep the cover nearby to avoid confusion during reinstallation.

If access is restricted by wiring bundles or aftermarket additions, gently move harnesses aside without pulling or twisting connectors. Avoid working with the ignition on, as exposed terminals can cause short circuits if contacted with metal tools.

For better reach, slide the driver seat fully back and open the door wide to create space. This position allows a direct view and easier handling when checking or replacing individual inserts.
