Locate the main control module beneath the dashboard on the driver’s side to identify the circuitry allocations. Each connection point carries a specific amperage rating clearly marked on the cover, enabling rapid troubleshooting without testing each line individually.

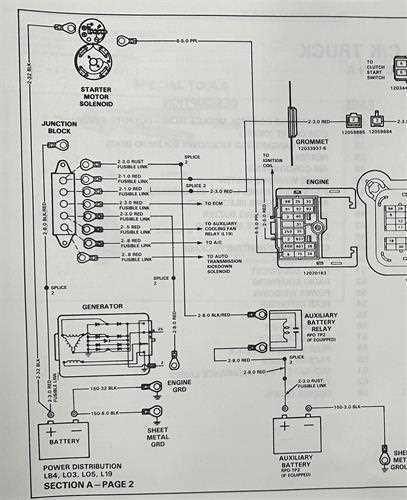

Reference the internal schematic to confirm which conductors supply power to headlights, brake systems, and auxiliary outlets. For vehicles of this era, small relays often control multiple circuits simultaneously, so tracing the path carefully avoids accidental disconnections.
Replace worn connectors with identical gauge terminals to maintain consistent current flow. Corrosion or loose fittings can cause intermittent failures that mimic component malfunctions, creating unnecessary replacement of switches or lamps.
Document any modifications before performing upgrades, such as adding auxiliary lighting or audio enhancements. Marking each lead and noting its original slot prevents confusion and ensures the vehicle remains safe under all operating conditions.
Use the fuse allocation chart inside the cover for quick verification of spare capacities. High-demand systems like air conditioning or rear defoggers often share common lines, so confirming proper distribution prevents overload and protects sensitive electronics.
1988 Chevrolet Utility Electrical Panel Reference
Access the main control panel under the dashboard on the driver’s side. Each slot is labeled with amperage and corresponding system, such as 10A for dome lights or 20A for the radio and climate control. Verify each connector matches its intended function before replacing any component.
Key circuit positions include:
- Headlamps and marker lamps
- Ignition and starter motor
- Power windows and door locks
- Windshield wipers and washer pump
For inspection, disconnect the battery first. Remove the protective cover and check each connector for corrosion, burn marks, or loose terminals. Replace defective holders with equivalent-rated units to maintain system integrity.

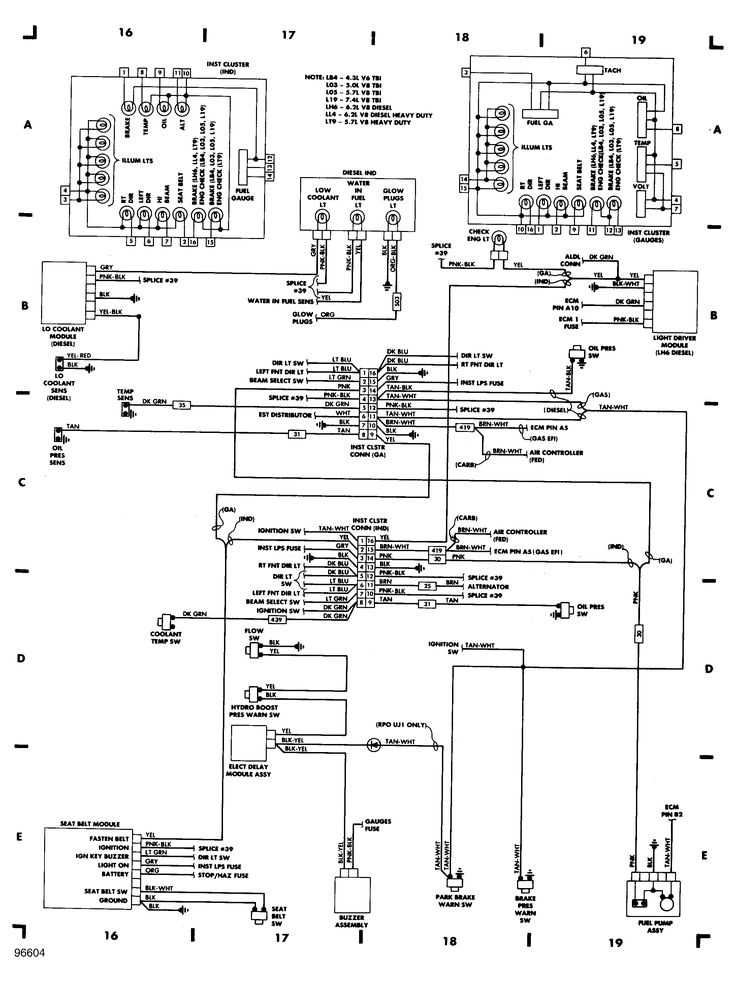

Use the schematic inside the panel cover to trace each wire. Color coding helps identify proper routing for relays, lighting circuits, and auxiliary power outlets, minimizing errors during maintenance or replacement.
Preventative care includes cleaning terminals with a soft brush and applying dielectric grease. Regular checks of the electrical assembly ensure consistent operation of headlights, HVAC, engine controls, and convenience accessories without unexpected failures.
Locating the Electrical Panel in a 1988 Suburban

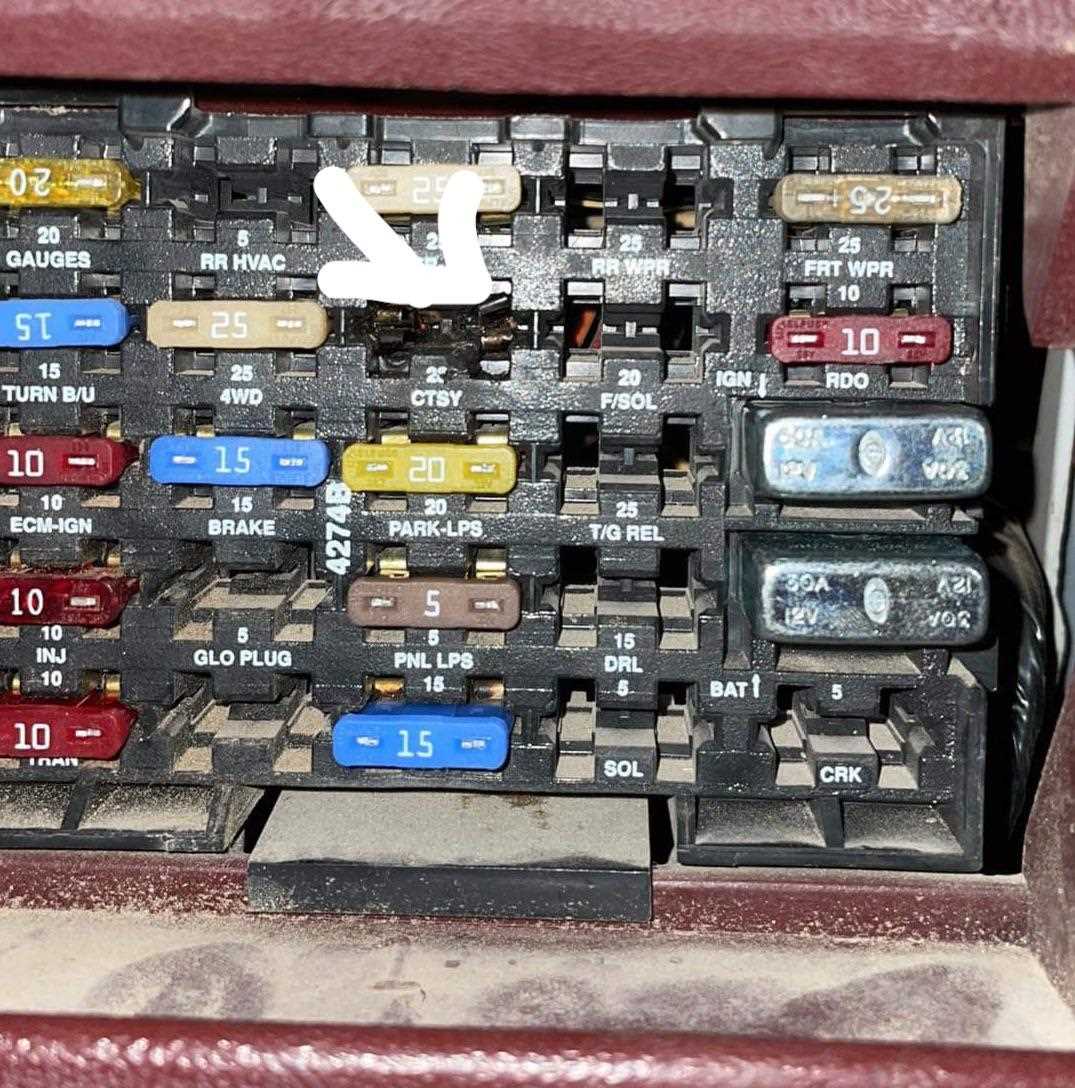

Check beneath the dashboard on the driver’s side; the control module is often hidden just under the steering column, slightly recessed behind a small plastic cover. Removing this cover reveals the panel with individual switches for circuits.
Another access point sits under the hood near the firewall on the passenger side. Look for a rectangular enclosure secured by clips or screws; it houses multiple relays and miniature circuit protectors. This section is typically marked with a molded label indicating amperage ratings.
If interior access seems limited, examine the lower kick panel on the passenger side. Some models route auxiliary connections here for lights and accessories. Lifting the panel exposes a compact tray where circuit protectors are arranged in rows.
Tips for Identifying Specific Circuit Protectors
Each switch in the panel is stamped or color-coded. A red plastic tab usually signifies higher amperage. Keep a small flashlight handy to clearly see the numbers and symbols.
When locating the main power interrupter, trace the thick wiring from the battery; it leads directly to the primary enclosure. Avoid guessing–these connectors handle significant current and improper handling can cause shorts.
For models with dual enclosures, one is often dedicated to engine functions while the other controls cabin electronics. Labels on the inside cover clarify which circuits are protected, helping you pinpoint the exact switch needed.
Routine inspection involves gently pressing each tab to ensure it’s seated. Dust and debris can interfere with connections, so a soft brush or compressed air can clear the compartment without damaging the components.
