Check the power distribution layout before replacing any protective element to avoid installing the wrong amperage and causing damage to wiring or onboard modules. Match each slot with its assigned circuit using the panel label.
This mid-size SUV uses multiple electrical panels located in the engine compartment and inside the cabin. The under-hood unit controls high-load systems such as cooling fan, ABS, and power distribution relay, while the interior panel supports lighting, audio system, and power accessories.
Use a multimeter or test light to check continuity across each metal strip after removal. A break usually indicates overload or a short in the connected circuit. Repeated failure in the same position often points to wiring issues or a faulty component, not just a worn-out insert.
Follow amperage ratings printed on each element, typically ranging from 5A to 40A depending on the circuit. Installing a higher-rated piece can allow excess current flow, increasing the risk of melted insulation and malfunction of control units.
2005 Ford Explorer XLT Fuse Box Diagram with Locations and Circuit Details
Match each electrical slot with its assigned circuit using the panel layout before removing any protective insert to avoid incorrect amperage selection and potential wiring damage.
The vehicle uses two main power distribution areas: one under the hood for high-load systems like cooling fan, ABS module, and starter relay, and another inside the cabin for lower-load components such as lighting, audio, and power windows. Each position is tied to a specific function, so checking the label under the cover helps identify the correct circuit during troubleshooting.
Fuse Box Locations in 2005 Ford Explorer XLT and How to Access Each Panel

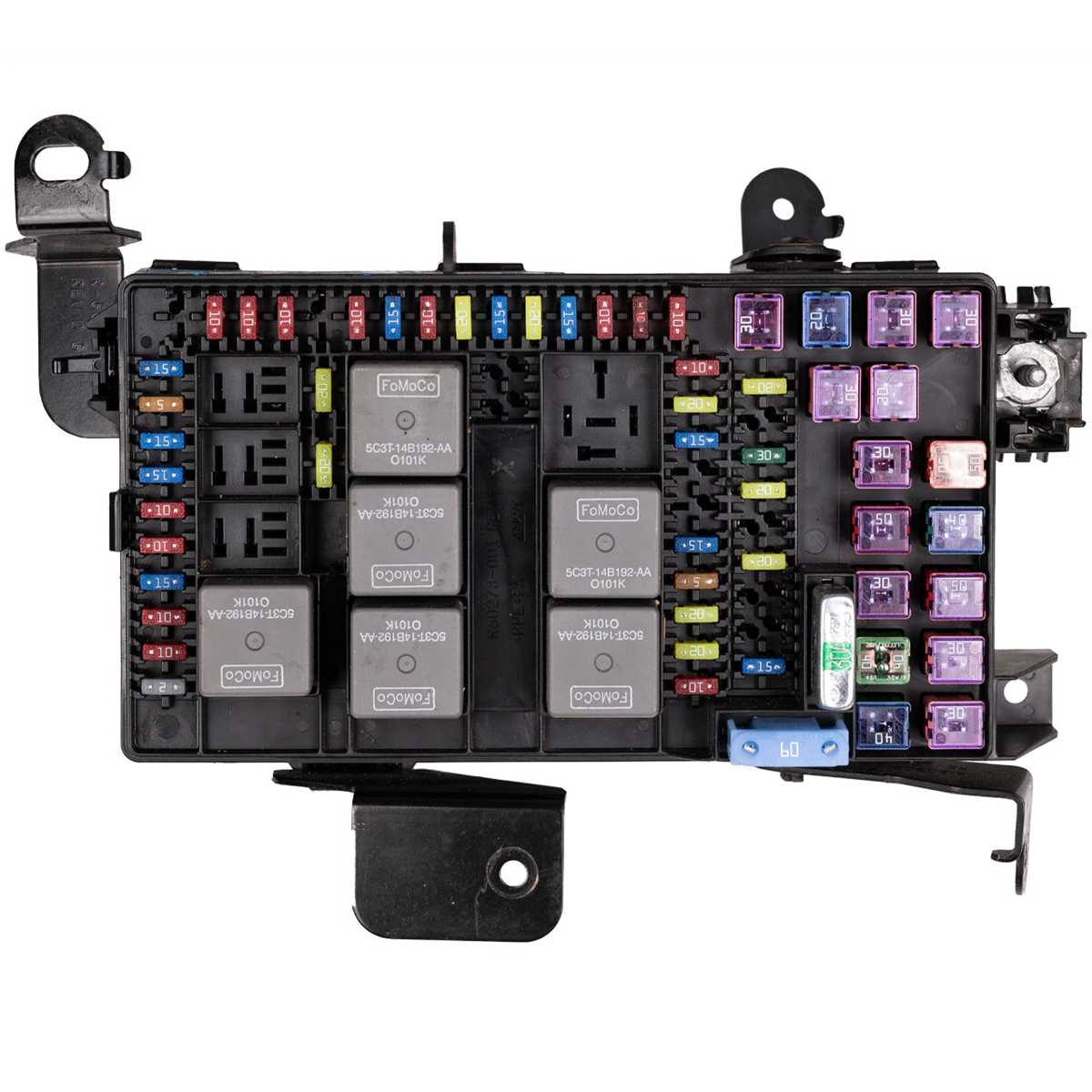

Open the hood and locate the main power distribution unit near the battery on the driver side; press the retaining tabs and lift the cover to access high-current circuits.
This under-hood section supplies systems such as cooling fans, ABS, and primary relays, so handle components carefully and avoid contact with exposed terminals.
Inside the cabin, find the interior panel mounted on the driver side below the dashboard. Remove the trim cover by pulling it outward to expose circuits linked to lighting, audio, and control switches.
Use proper lighting when working under the dashboard, as limited visibility can make it difficult to read slot labels and identify circuits correctly.
Follow these steps for safe access:
- Turn off ignition and remove the key
- Disconnect the battery for added safety
- Remove panel covers without forcing clips
- Keep track of screws and fasteners
Always confirm slot labels before removing any component to avoid confusion during reassembly.
The rear compartment may include an additional panel behind a side trim section, used for auxiliary systems and rear accessories.
Secure all covers after inspection to protect internal connections from dust and moisture exposure.
