Check the exact panel mapping by matching amperage values and circuit labels printed on the cover, as this provides the fastest way to identify each protective element without removing multiple trim pieces. The main distribution unit in this vehicle class is typically positioned beneath the steering column and inside the engine compartment, where separate clusters handle lighting, ignition, and auxiliary systems.
Interior circuits are commonly grouped in a compact panel near the driver’s side, with ratings ranging from 5A to 30A. For example, low-amperage slots often protect dashboard electronics, radio modules, and interior illumination, while higher ratings are assigned to climate control blowers and power outlets. A second cluster under the hood usually manages engine-related components such as fuel delivery, cooling fans, and control modules.
Use the numbering sequence stamped beside each slot to cross-reference functions like headlamps, brake lights, and windshield wipers. This numbering is not random: lower indices often correspond to cabin features, while higher ones are linked to drivetrain systems. Misidentifying these can lead to incorrect replacements and repeated electrical faults.
Pay attention to relay positions adjacent to the protective elements, as they govern switching for high-load systems like starter motors and heating circuits. These relays are frequently arranged in rows and may share identical housings, so verifying their position against the panel legend is necessary before swapping components.
2005 Mercedes Sprinter Fuse Box Diagram: Practical Guide
Locate the electrical panel under the steering column first and verify each circuit using a multimeter before replacing any protective link; relying on visual inspection alone often leads to misdiagnosis.
The van uses several distribution panels: one in the cabin near the driver’s knee area, another under the seat, and an additional unit inside the engine compartment. Each section manages separate systems such as lighting, ignition, auxiliary sockets, and control modules, so identifying the correct panel reduces unnecessary disassembly.
Cabin panel layout typically assigns lower amperage links (5A–20A) to interior lighting, radio, dashboard cluster, and central locking. If the radio and dome light fail simultaneously, check adjacent slots rather than isolated positions, as they often share a common feed line.
Engine compartment panel contains higher-rated elements (30A–80A) responsible for cooling fans, ABS pump, and glow plug control. A failed cooling fan circuit often traces back to a 40A strip element rather than the motor itself; confirm continuity under load conditions.
Seat base distribution unit handles power for heated seats, additional heaters, and optional equipment. Corrosion is common here due to moisture accumulation, so inspect connectors for oxidation and clean contacts with electrical cleaner before inserting new protection elements.
Use the amperage rating stamped on each link as a strict guideline; installing a higher-rated component risks wiring damage. If a circuit repeatedly fails, trace downstream components such as relays or wiring harnesses instead of increasing capacity.
Color coding varies: red typically indicates 10A, blue 15A, yellow 20A, and transparent or metal strip types denote higher ratings. Matching both color and numeric marking prevents confusion, especially when previous repairs introduced mismatched parts.
For accurate troubleshooting, map each slot manually on paper during inspection. Label systems like “left headlamp,” “fuel pump,” or “blower motor” as you verify them. This personalized reference often proves more reliable than generic схемы found online.
Exact Location of Fuse Boxes in the 2005 Mercedes Sprinter and How to Access Them Safely

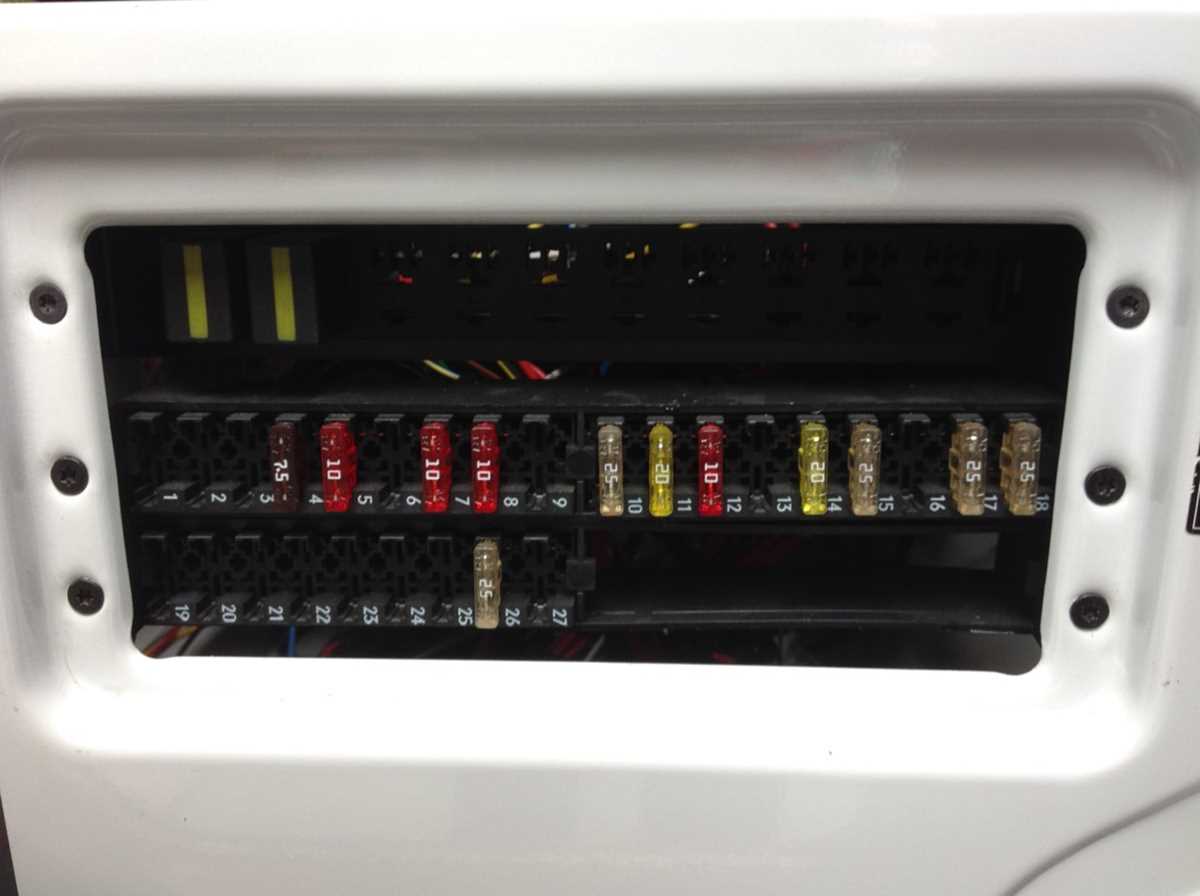

Open the driver’s door and inspect the side of the dashboard panel; the primary electrical protection unit is mounted behind a removable plastic cover on the left edge of the instrument panel. Use a flat trim tool to pry the cover gently from the notch at the bottom to avoid cracking the clips.
A second distribution panel is installed beneath the steering column, slightly above the driver’s footwell. Remove the lower dash trim by unscrewing two Torx fasteners, then pull the panel toward you. Wiring harnesses sit close to this area, so keep movements controlled and avoid pulling the trim abruptly.
Under the driver’s seat sits another relay and protection cluster. Slide the seat fully forward, then release the locking tabs on the seat base cover. Lift the lid vertically; do not tilt it sideways, as several connectors are attached beneath.
Engine Compartment Location
Lift the hood and locate the power distribution unit near the battery on the left side of the engine bay. A black rectangular housing with snap latches protects high-current circuits. Press both side clips simultaneously and raise the lid evenly to prevent seal damage.
- Ensure ignition is off before opening any electrical housing
- Disconnect the negative battery terminal when working with high-amperage links
- Use insulated tools only
- Keep moisture away from exposed contacts
Safe Access Procedure
Before touching any internal components, switch off all electrical consumers such as lights, radio, and HVAC system. Wait at least one minute after turning off the ignition to allow control modules to power down completely.
- Remove the cover using minimal force
- Identify the correct slot using the legend printed on the inside of the lid
- Extract the element with a puller tool, not fingers
- Check for melted metal strips or discoloration
- Insert a replacement with identical amperage rating
Never substitute a higher-rated component, as this can lead to wiring overheating and insulation failure. If repeated failures occur in the same slot, inspect the circuit for shorting rather than replacing the protective element again.
Reinstall all covers firmly after inspection. Loose panels can allow dust intrusion or accidental contact with live terminals, especially in the engine bay where vibration levels are higher.
