Locate the exact relay and protection map inside the vehicle’s manual or under the panel cover before attempting any repair, as incorrect identification can disable critical systems such as ignition, lighting, or climate control. The full-size executive sedan from the early 2000s uses multiple protection blocks positioned in the engine bay, trunk, and cabin, each responsible for separate subsystems.
The front compartment panel typically handles high-load components like cooling fans, control modules, and lighting circuits. Inside the cabin, a secondary block governs comfort features–power seats, infotainment, and interior illumination–while the rear section often distributes current to fuel delivery and suspension electronics. Each slot is marked with amperage ratings and abbreviated system labels, requiring careful interpretation rather than guesswork.
Pay close attention to color coding and numeric indexing: low-amperage slots (5–15A) protect sensitive electronics, while higher ratings (30A and above) correspond to motors and heavy-duty equipment. Using an incorrect replacement can lead to wiring damage or module failure. Cross-referencing the panel markings with a verified layout ensures precise troubleshooting and prevents unnecessary component replacement.
For diagnostics, combine the layout reference with a multimeter test to confirm continuity and voltage presence. This approach allows isolation of faults such as short circuits, blown links, or failing relays without dismantling large sections of the vehicle. Clear identification of each circuit path reduces repair time and avoids unintended system shutdowns.
2001 Mercedes-Benz S500 Fuse Diagram: Practical Identification and Troubleshooting
Check the trunk-mounted power distribution panel first: lift the right-side lining and locate the numbered slots printed on the cover; match the slot index with the component list to quickly isolate a failed circuit instead of probing randomly.

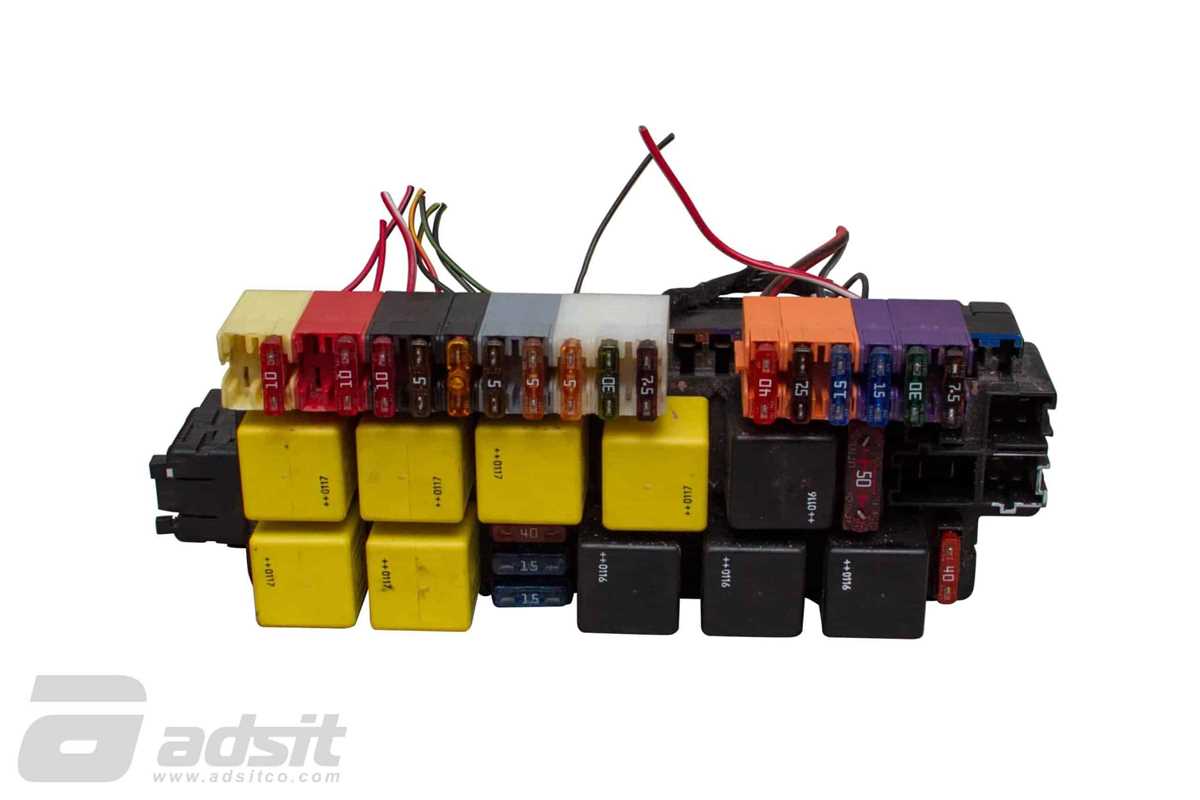

The luxury sedan in the W220 series uses multiple protection blocks: one under the hood near the brake booster, one in the dashboard side panel, and another in the luggage compartment. Each block has a distinct layout, and the cover insert provides amperage ratings (5A–40A). Never replace a blown element with a higher rating, as this can damage control modules such as the SAM (Signal Acquisition Module).
Lighting issues often trace back to low-amperage slots (5A or 7.5A) in the front panel. If headlights or interior lamps fail intermittently, inspect for hairline breaks rather than complete burnout; use a multimeter set to continuity mode instead of visual inspection alone.
Cooling fan and climate control faults usually relate to higher-rated positions (25A–40A) in the engine bay block. If the HVAC system stops responding, check both the main slot and the auxiliary relay nearby; corrosion on contacts is common in older vehicles and can mimic a blown element.
Numbering and Label Interpretation
Slot numbering is not sequential across all blocks. The trunk panel may begin at a higher index than the dashboard panel. Cross-reference the numbering with the printed legend: for example, a slot labeled for “COMAND system” or “central locking pump” can help pinpoint issues with infotainment or door operation. Misreading the numbering leads to replacing the wrong component.
For intermittent electrical faults, gently wiggle the inserted element while monitoring the affected system. If the system flickers, the problem may be poor contact tension rather than a failed strip. Cleaning contacts with electrical cleaner and slightly tightening the terminals often restores stable operation.
Diagnostic Shortcuts
Use a test light across both terminals without removing the element: power on one side and not the other confirms failure instantly. Keep a spare set of correctly rated replacements in the glove box. Repeated burnout in the same slot signals a downstream short–inspect wiring harnesses near hinges, under seats, and around the trunk lid where insulation wear is frequent.
Exact Fuse Box Locations in 2001 Mercedes-Benz S500 and How to Access Them Safely

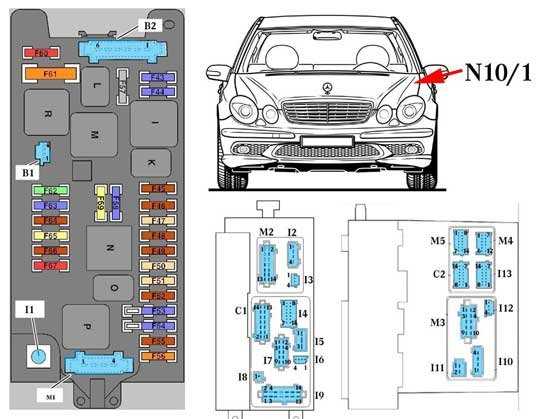

Open the hood and locate the main electrical module on the left side near the windshield base; release the plastic clips and lift the cover straight up without twisting. A second unit sits on the right side of the dashboard, hidden behind a removable panel–use a flat trim tool to avoid damaging the soft interior. The third block is positioned in the trunk on the left side behind the carpet lining; pull back the panel gently to reveal it. Before touching any component, disconnect the negative battery terminal using a 10 mm wrench and wait at least 5 minutes to prevent residual current from affecting sensitive systems.
- Engine bay module: secured with snap tabs; press evenly on both sides to release.
- Dashboard side panel: access from passenger side; pry from the lower edge to avoid breaking clips.
- Rear compartment unit: behind fabric cover; no tools required, but avoid sharp pulls.
- Use a plastic puller to remove elements; metal tools increase risk of short circuits.
- Check amperage markings carefully; replacing with a higher rating may damage wiring.
- Work in dry conditions; moisture near electrical contacts can cause malfunction.
