Locate the main power distribution area behind the glove compartment for immediate access to all interior circuits. Ensure the vehicle ignition is off before inspecting or replacing any components to prevent short circuits or accidental discharge.
Identify each branch by the labeled slots on the cover. Labels correspond to specific systems such as lighting, HVAC, and infotainment. Keep a small tester or continuity tool to verify current flow through each circuit if troubleshooting irregularities.
Check the engine compartment distribution unit near the battery for high-current circuits supplying the alternator, starter, and cooling fans. Regular inspection of terminal connections and protective covers prevents corrosion and voltage drop, reducing the risk of electrical faults.
Document the configuration by photographing the unit and noting component positions. This provides a quick reference for repairs or future modifications without relying solely on the printed guide.
Use the circuit map to safely remove and replace blown protective elements. Match amperage ratings exactly to avoid overheating or damage to sensitive electronic modules.

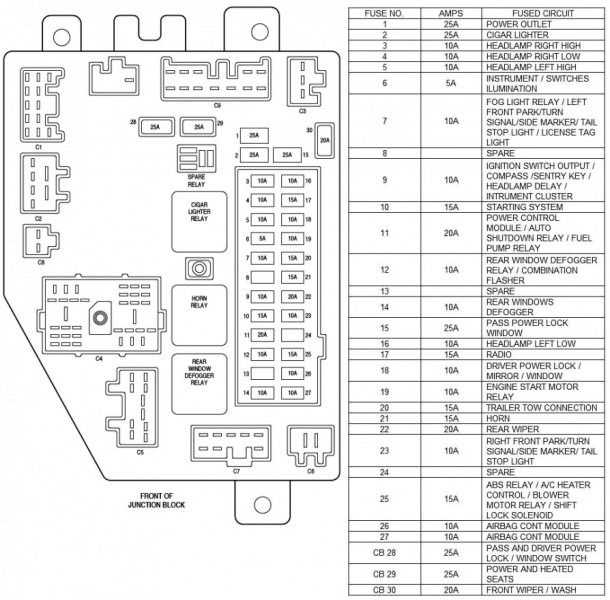

Electrical Center Reference for 2007 Jeep Commander
Access the interior power distribution unit by opening the glove compartment and folding it down. Inspect each labeled slot for corrosion or loose connections, paying close attention to circuits controlling lighting, climate systems, and entertainment modules.
The engine compartment distribution area near the battery houses high-current circuits supplying the starter, alternator, and cooling fans. Regular checks of terminal tightness and protective covers prevent voltage drop and reduce the risk of electrical interruptions during operation.

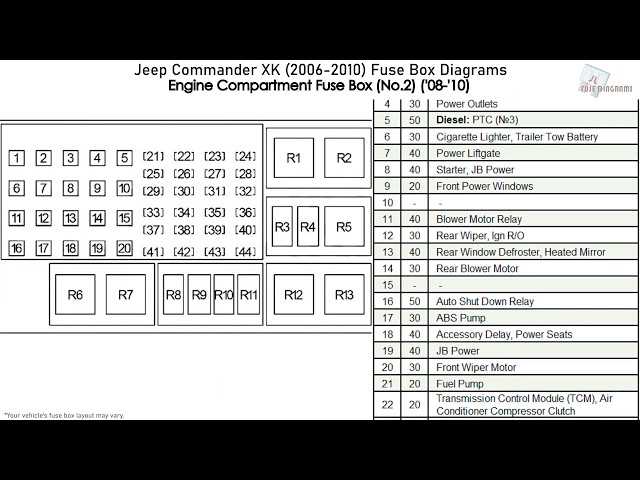

Locate Engine Compartment Power Center
Open the hood and secure it with the prop rod. Locate the main distribution unit near the battery on the driver’s side, which contains the circuits for ignition, starter, and high-current accessories.
Check the plastic cover for labeled sections indicating relays and high-amperage terminals. Remove the cover carefully to prevent cracking the clips and expose the internal connectors.
Identify the primary bus bars connected to the battery terminals. These conductors supply energy to critical systems, including the cooling fan, alternator, and starter motor. Ensure all connections are tight and free from corrosion.
Inspect relays housed within the unit.
- Look for signs of overheating or discoloration.
- Test each relay function with a multimeter if circuits malfunction.
- Replace defective components immediately to avoid power interruptions.
Locate secondary high-current slots supplying the ABS module, traction control, and electronic throttle. Label each connector during maintenance to avoid misplacement during reassembly.
After inspection or repairs, reinstall the protective cover, ensuring all clips snap into place. Double-check battery connections and start the engine to confirm proper distribution to all essential systems.
