Check the electrical layout first to match each circuit with its assigned slot before replacing any protective element, preventing incorrect amperage use and wiring damage.
This SUV uses multiple power distribution sections located under the hood and inside the cabin. The engine compartment unit supports high-load systems such as cooling fan, starter relay, and brake control, while the interior section handles lighting, radio, and power accessories.
Test continuity across each metal strip using a multimeter after removal. A broken link indicates overload or a short circuit in the connected system. Repeated failure in the same position usually points to damaged wiring or a faulty component, not just a worn-out insert.
Follow amperage ratings marked on each element, typically ranging from 10A to 40A. Installing a higher-rated piece can allow excess current flow, increasing the risk of overheating and damage to electrical components.
97 Jeep Grand Cherokee Fuse Panel Diagram with Locations and Circuit Details
Locate the interior power distribution unit beneath the steering column and verify slot numbers against the cover label, as this area controls low to mid-load systems such as cabin lighting, radio memory, and dashboard indicators. Standard blade elements range from 5A for sensors up to 25A for window motors; always match amperage markings printed on each position.
Typical circuit mapping inside the cabin section includes ignition feed near the upper row, turn signals and hazard lights in the center cluster, and HVAC controls positioned along the lower edge. The layout groups related systems together, which helps trace faults quickly; for example, if both wipers and washer stop working, inspect adjacent slots rated around 15A–20A in the same column.

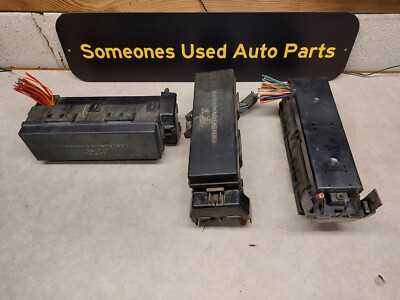

Check the engine compartment distribution block near the battery for high-current protection links, where cooling fans, starter relay supply, and charging lines are secured with larger cartridge-style elements rated between 30A and 60A. Use a multimeter to confirm continuity across each link, as hairline breaks may not be visible; also inspect terminal contacts for heat discoloration, which signals overload or poor connection.
Fuse Panel Locations in 97 Jeep Grand Cherokee and Access Instructions
Open the driver door and remove the lower dash cover beneath the steering column to reach the main interior electrical block, as this area contains most low-current circuits tied to cabin systems. The cover is held by plastic clips; pull evenly from the edge to avoid cracking mounting tabs.
The interior unit sits slightly left of the steering column support bracket, mounted vertically. Clearance is tight, so use a flashlight and a small puller tool to remove blade elements without bending contacts.
Access steps for the cabin unit:
1. Switch ignition off and remove key
2. Disconnect negative battery terminal
3. Pull trim panel outward from lower edge
4. Locate labeled slots on the inner side of the cover
5. Remove required element using puller

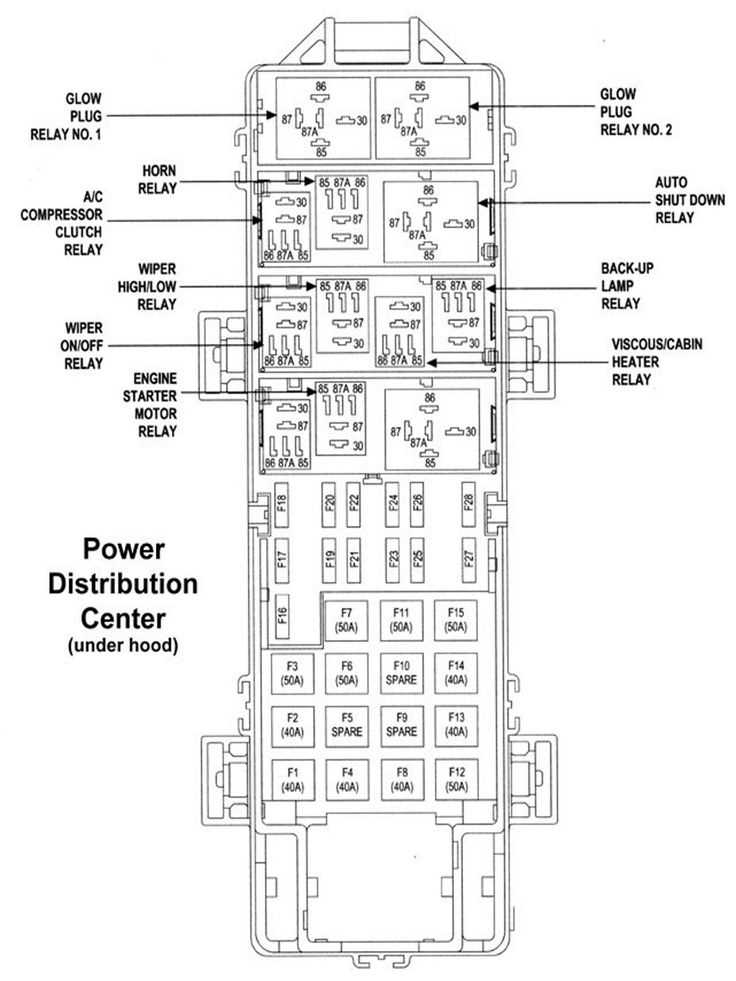

Lift the hood and locate the power distribution center near the battery on the passenger side, where high-amperage circuits are grouped. This enclosure uses a snap-on lid with side latches that must be pressed inward before lifting.
The engine compartment unit contains larger cartridge-style links and relay blocks. These components handle cooling fans, ignition supply, and charging paths, typically rated from 30A to 60A or higher.
Steps to open the engine bay enclosure:
- Press both side tabs simultaneously
- Lift the cover straight up without twisting
- Check the underside label for slot identification
- Inspect for corrosion or heat marks
Use a multimeter to verify continuity before replacing any element, since visual inspection may miss internal breaks. Set the meter to continuity mode and probe both metal ends; no sound indicates a failed link.
After servicing, reinstall covers firmly to prevent moisture entry and vibration damage. Ensure all clips are fully engaged and wiring is not pinched during reassembly.
