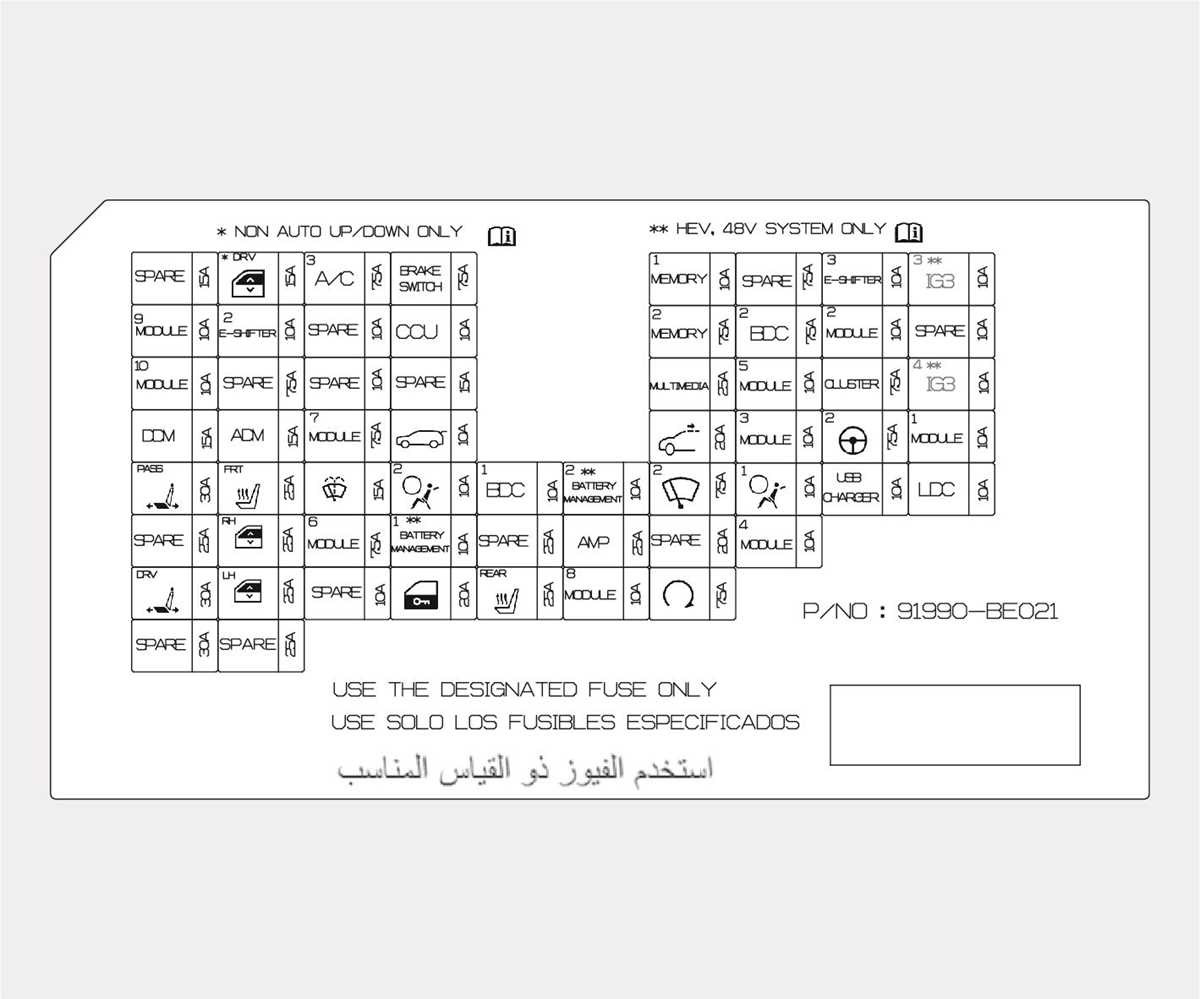

Check the panel mapping inside the cabin and under the hood first, as this sedan uses two separate modules with distinct circuit assignments. The interior unit is typically mounted near the driver’s side kick panel, while the engine compartment unit sits adjacent to the battery. Each slot corresponds to a protected circuit such as lighting, infotainment, ignition, or control modules, with amperage ratings ranging from 10A to 50A depending on load requirements.
Focus on label accuracy and slot numbering to avoid incorrect replacements. The manufacturer uses a numeric grid system combined with abbreviations like ACC, ECU, and BATT, which indicate accessory power, control units, and constant voltage lines. Misreading these abbreviations can lead to installing an incorrect component, potentially causing malfunction in systems like climate control or electronic steering.
Use the amperage value as a strict guideline, not an estimate. For example, circuits tied to power windows or seat adjustment often require higher-rated elements (30A–40A), while audio or interior lighting circuits operate on lower values (10A–15A). Installing a higher-rated piece than specified increases the risk of wiring damage under overload conditions.
Cross-check with the owner’s manual or printed panel cover legend when diagnosing electrical faults. This approach helps isolate issues such as non-functioning outlets, dashboard warnings, or intermittent sensor behavior without unnecessary disassembly. Accurate identification saves time and prevents accidental disruption of unrelated systems.
Hyundai Genesis Sedan Electrical Panel Layout: Practical Guide
Check the cabin electrical panel on the driver’s side kick area first; most lighting and accessory issues trace back to this location. Use the label on the inner cover to match each slot with its circuit, then verify amperage before replacing any burned component. For example, interior illumination typically uses a 10A element, while power seat circuits may require 20–30A ratings. Installing a mismatched rating risks wiring damage.
Under the hood, the secondary power distribution unit handles high-load systems such as cooling fans, ABS, and ignition modules. Access it by releasing the plastic clips near the battery. Each relay and protective link is arranged in rows; consult the etched markings on the lid for orientation. A failed cooling fan relay often causes overheating during idle, while a defective ABS relay may trigger dashboard warnings without affecting braking performance directly.
Common Fault Isolation
If the infotainment screen shuts off intermittently, inspect the multimedia circuit first. Pull the corresponding slot, check for a broken metal strip, and confirm continuity with a multimeter. For non-working power windows, focus on the door control circuit rather than individual motors; a single blown element can disable all switches simultaneously. Keep spare 10A, 15A, and 25A inserts in the glove compartment for quick roadside replacement.
Color coding helps speed up identification: red usually indicates 10A, blue marks 15A, yellow stands for 20A, and green represents 30A. Never rely solely on color; always read the stamped number on top, as replacements from different manufacturers may vary slightly in shade. Consistent labeling inside the panel cover provides a reliable cross-check.
Maintenance Tips
Clean контакты with electrical contact spray once a year to prevent oxidation, especially in humid climates. Avoid inserting metal tools while the ignition is on; use plastic pullers stored in the panel compartment. After any replacement, turn the ignition to ACC and confirm system operation before closing the cover. This approach reduces repeat disassembly and ensures each circuit is functioning as expected.
Exact Location of Interior and Engine Bay Fuse Boxes in 2014 Hyundai Genesis
Open the driver-side door and immediately inspect the lower left dashboard panel: the interior electrical panel is hidden behind a small rectangular cover just below the steering column, slightly above the footwell. Pull the cover outward from the notch at the bottom edge–no tools required–and you’ll expose the cabin circuit layout. For quick access in low light, note that the release tab is positioned closer to the door hinge side, not centered.
Cabin Panel Position Details
The interior unit sits horizontally, aligned with the knee bolster area, making it accessible without removing trim components. It’s mounted flush against the inner dash frame.
- Left of steering wheel, beneath control switches
- Above brake pedal level
- Behind snap-on plastic cover with molded grip
- Accessible from seated driving position
Engine Compartment Power Distribution Location
Lift the hood and move to the passenger-side rear corner of the engine bay. The main power distribution unit is positioned near the firewall, adjacent to the battery housing. A black plastic lid with locking clips protects the high-current circuits; press the side tabs inward and lift upward to remove it. The enclosure is mounted slightly elevated above surrounding components to reduce exposure to moisture and heat, and it sits directly behind the intake ducting, making it visible once the hood is fully open.
For precise identification under the hood, follow these reference points:
- Locate the battery first; the power unit is within 10–15 cm proximity
- Check the rear-right section of the engine bay (from front view)
- Identify the rectangular black casing with dual side clips
- Look for embossed markings on the lid indicating circuit grouping
