Locate the interior electrical block under the dashboard on the driver side and the power distribution box in the engine compartment before troubleshooting any circuit failure. Use the cover legend to match each slot with its assigned system, then verify amperage values stamped on each component.
Check lighting, ignition, and accessory circuits first, as these groups commonly fail due to overload or corrosion. Pull each protective element with a plastic extractor and inspect the metal strip for breaks or burn marks. Replace only with identical ratings to avoid wiring damage.
Use a multimeter to confirm continuity instead of relying on visual inspection alone. Probe both terminals while the component is removed; a zero or near-zero reading indicates a working unit. If repeated failures occur, trace the circuit for shorts, especially around aftermarket equipment or worn insulation.
Refer to relay positions inside the engine bay box for systems like fuel delivery, starter control, and cooling fans. Swap identical relays to isolate faults quickly, but mark their original positions to prevent confusion during reassembly.

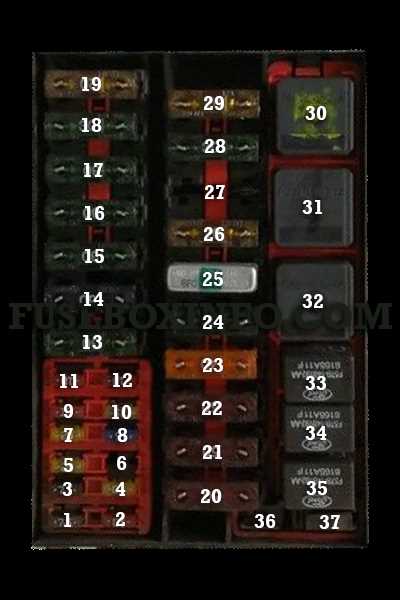

2000 Ford F450 Fuse Panel Diagram
Open the driver-side dash cover and locate the cabin electrical block, then compare slot numbers with the printed legend to identify circuits like radio, brake lights, and power windows. Use the amperage values stamped on each element–typically 10A, 15A, 20A–to match replacements exactly and prevent wiring overload.
In the engine compartment, find the power distribution box near the battery and inspect high-current links assigned to systems such as ABS, cooling fans, and charging circuits; these positions often use larger ratings like 30A or 50A and may include square relays that control switching rather than direct protection.
Test each slot with a multimeter set to continuity or voltage mode while the ignition is in the correct position, confirming both supply and load sides; if power enters but not exits, the inserted component is damaged, while absence on both sides points to upstream wiring or relay faults.
Exact location of interior and engine bay fuse panels on 2000 Ford F450
Remove the lower dash cover on the driver side to access the interior electrical block; it sits just above the brake pedal area and is secured behind a plastic trim that can be released by hand or with a flat tool.
This cabin-mounted unit is positioned horizontally, with numbered slots facing outward for quick inspection. Use a flashlight to read the labeling, as visibility is limited due to its recessed placement under the steering column.
Interior electrical block access points
Check the left kick panel area as well, since some configurations include additional circuit holders or relays mounted nearby. These may control functions such as interior lighting, power locks, or auxiliary equipment depending on trim level.
In the engine compartment, locate the main power distribution box on the driver side near the battery and brake fluid reservoir; it is enclosed in a rectangular black housing with a snap-on lid designed to protect high-current circuits from moisture and debris.
Engine compartment power distribution box position
Release the retaining clips and lift the cover to reveal large cartridge-style protectors and relays arranged in a grid pattern. The layout is printed inside the lid, allowing quick identification of circuits tied to systems like cooling, starting, and charging.
Keep both locations clean and dry, as dirt buildup or water intrusion near these units can lead to intermittent electrical faults and unreliable connections.
