Check the main cabin panel immediately if interior electronics like lighting, climate control, or power outlets stop functioning. Access requires removing the lower dash cover on the driver side. Use a small screwdriver to release retaining clips without forcing the panel, ensuring no damage to surrounding trim. Keep track of each fastener for proper reinstallation.

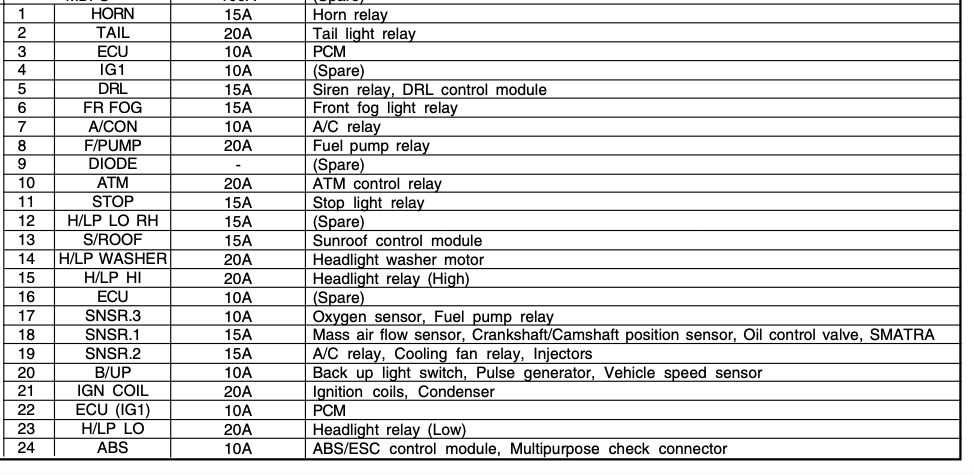

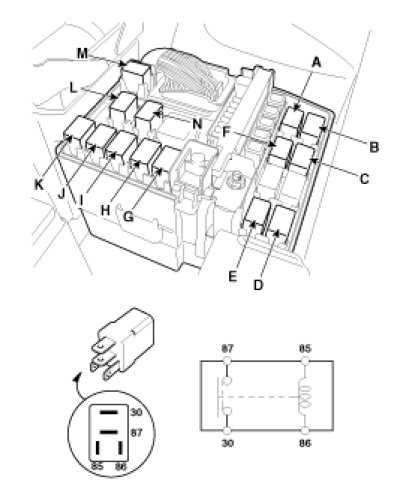

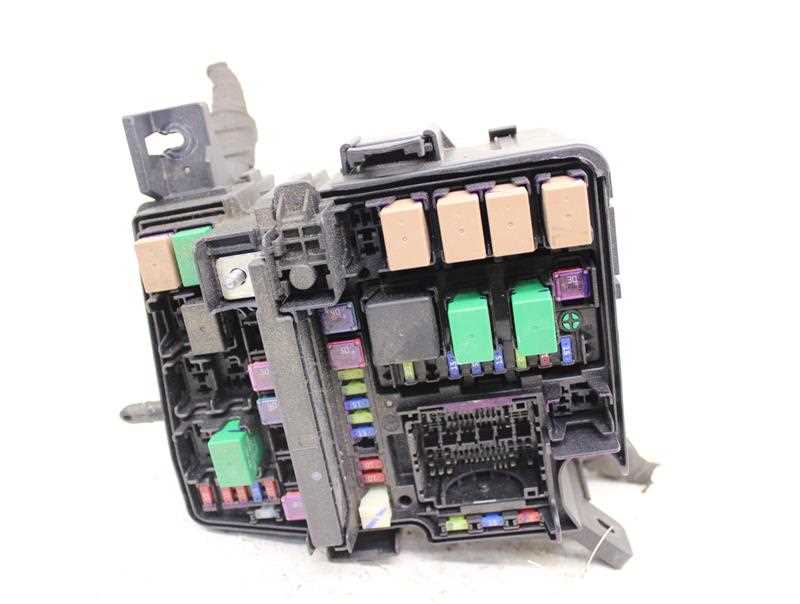

Under the hood, locate the primary power distribution unit near the battery. Identify relays and circuit holders by their printed labels and match them to the service requirements. Each slot controls specific components such as headlamps, wipers, and starter circuits. Handle each module carefully to avoid bending connectors.
Mark malfunctioning units with a removable label or tape before removal. Test continuity using a multimeter on circuits that fail to operate. Replace only with the recommended amperage and style to prevent electrical shorts. Document any changes to keep future troubleshooting accurate.
Electrical Panel and Circuit Guide for 2011 Sonata Model

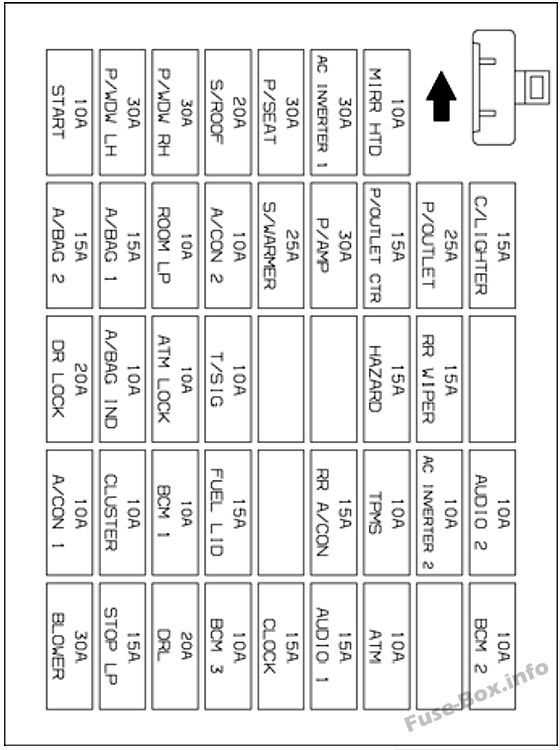

Start by identifying the main cabin panel located beneath the driver side dashboard. Remove the lower trim carefully using a flat tool to avoid scratching the surrounding surfaces. Each slot in the panel is labeled with the component it controls, such as lighting, audio system, or climate control circuits.
Inspect each relay and power holder for corrosion or loose connections. Wiggle terminals gently to check for firm seating and replace any module showing signs of overheating or discoloration. Document the original positions to maintain correct circuit alignment.
The under-hood distribution module is positioned near the battery and contains high-current circuits. Locate relays for key functions like the starter, cooling fans, and headlamps. Use a multimeter to verify voltage at each terminal when testing component failures. Do not remove multiple modules simultaneously to prevent misplacement.
Label each connection with masking tape before removal. Follow amperage ratings on each holder strictly to prevent overloads. Check for blown elements or burnt terminals visually and with a meter.
For auxiliary components such as seat heaters, sunroof, or trunk lights, refer to the panel markings and trace circuits individually. Replace any defective elements with matching specifications to maintain system integrity.
After repairs, reinstall all modules in their original positions and secure trim panels. Test every system sequentially, starting with ignition-powered circuits and then accessory circuits. This ensures that all replacements function correctly and that no new faults are introduced.
Locating the Interior Electrical Panel and Access Points
Access the main cabin power panel by opening the driver side lower dashboard panel. Remove the trim carefully by releasing the clips with a flat tool. Each slot is clearly marked with the corresponding system it governs, such as lights, audio, or climate control.
Check the panel for loose or corroded terminals before attempting repairs. Press gently on each connection to ensure it is seated firmly. Any signs of discoloration or melted plastic indicate a circuit requiring immediate attention.
Identify the auxiliary access points located along the passenger side kick panel. These provide power to secondary systems like heated seats, interior lamps, and sunroof mechanisms. Label wires before detachment to maintain proper reconnection.
Use a multimeter to verify voltage continuity at each terminal. Test circuits sequentially from ignition-controlled systems to accessory lines. This prevents accidental shorts and ensures each component receives the correct voltage.
After maintenance or replacements, secure the panel back into its original position and reinstall the trim. Perform a full system check of lights, electronics, and dashboard indicators. Confirming functionality before driving ensures all connections are stable and properly aligned.
