Access the main power block behind the glove compartment or under the dashboard on the driver’s side. This section contains all circuit protectors controlling lighting, climate systems, and infotainment modules. Ensure the ignition is off before handling any connectors to prevent short circuits.
Identify each circuit protector by matching the numbered labels on the cover with the list in the owner’s manual. Key circuits include headlamps, horn, air conditioning compressor, power outlets, and rear entertainment controls. Using a test light or multimeter, check continuity to confirm if a component is receiving power.
Replace or inspect protective elements one at a time to avoid damaging adjacent circuits. Pull the element straight out with a small pair of pliers and insert a replacement of the same amperage rating. Keep a set of spares in the glove compartment for quick fixes during road trips or unexpected electrical issues.
Electrical Panel Locations and Component Functions Explained
Access the primary power block behind the glove compartment on the passenger side or under the dashboard near the steering column. Disconnect the battery before handling any terminals to avoid short circuits.
Identify each protective element using the numbered labels on the removable cover. Common circuits include:
- Headlamps and tail lights
- Dashboard illumination and instrument cluster
- Climate control blower and compressor
- Rear entertainment system
- Power windows and door locks
Check continuity with a multimeter to determine if a circuit is active. A zero reading indicates an open connection, suggesting the protective element has blown and requires replacement.
Replacement steps: remove the element using a pair of needle-nose pliers, insert a new one of the same amperage, and ensure it is seated firmly. Keep replacements of common amperages such as 10A, 15A, and 20A accessible for quick maintenance.
Some panels also contain secondary blocks in the engine compartment. These control the fuel pump, radiator fan, and ABS system. Label each connector with masking tape before removal to simplify reinstallation.
Routine inspection: inspect for corrosion or discoloration on terminals and connections. Moisture accumulation can trigger false trips or intermittent electrical failures.
Document the layout with a photo or sketch for future reference. Knowing which element corresponds to each system reduces troubleshooting time during malfunctions and prevents accidental damage to unrelated circuits.
Locate the Power Block in Your Van
Access the main electrical panel by opening the driver’s side lower dash cover. Slide the panel down carefully to reveal the protective elements controlling interior and exterior systems.
The passenger compartment also contains a secondary block behind the glove box. Release the latch and lower the compartment door to reach smaller connectors for auxiliary circuits.
Engine compartment panels are positioned near the battery and along the fender wall. These handle high-current circuits including the starter, alternator, radiator fan, and fuel pump relays.
Label each connector with masking tape before removal. This prevents confusion when reconnecting components and reduces the risk of miswiring sensitive systems.

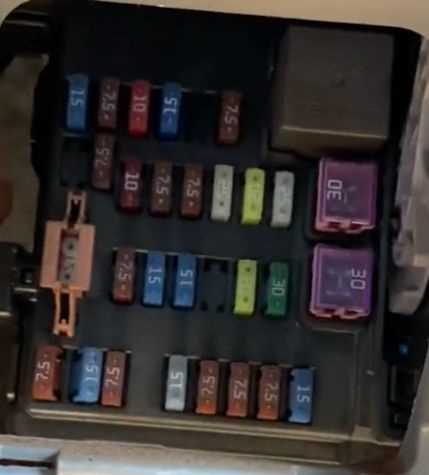

Check the cover for identification. Each slot is numbered or coded, indicating amperage ratings and the system it protects. Use the vehicle manual to match these numbers with the correct electrical devices.
Inspect the housing for corrosion or moisture. Accumulated dirt can trigger intermittent failures and false tripping of protective elements, especially in engine bay panels.
Keep a small flashlight and pliers on hand. This makes access easier in low-light conditions and ensures safe removal and insertion of the protective blocks without damaging terminals.
