Check the cabin-side electrical panel first by removing the lower trim near the steering column; most lighting, wiper, and accessory circuits are grouped there with clear numbering stamped into the plastic frame.
Engine compartment modules sit on the driver-side inner fender, protected by a clipped cover; press the side tabs firmly and lift upward to expose high-current links and relays tied to starter, alternator, and cooling systems.
Each slot is labeled with amperage ratings such as 10A, 15A, and 30A, and mismatching these values can cause overheating or repeated failures. Use a puller tool stored in the panel or needle-nose pliers wrapped in tape to avoid damaging contacts. Cross-check slot numbers with the legend printed on the inside of the cover; if missing, rely on stamped identifiers next to each position.
For diagnostics, test continuity using a multimeter set to resistance mode; a reading near zero indicates a good link, while infinite resistance confirms a blown element. Replace only after verifying the connected circuit has no short to ground, especially in trailer wiring or auxiliary lighting circuits.
Access to the interior unit may require loosening two 7mm screws holding the knee panel, then pulling it outward to reveal the full grid. Keep track of fasteners and avoid forcing clips, as brittle plastic can crack with age.
Label modifications with a permanent marker on the cover interior, especially after adding aftermarket devices, to maintain clarity during future service and prevent incorrect replacements.
2003 Ford F650 Fuse Box Diagram and Practical Usage Guide

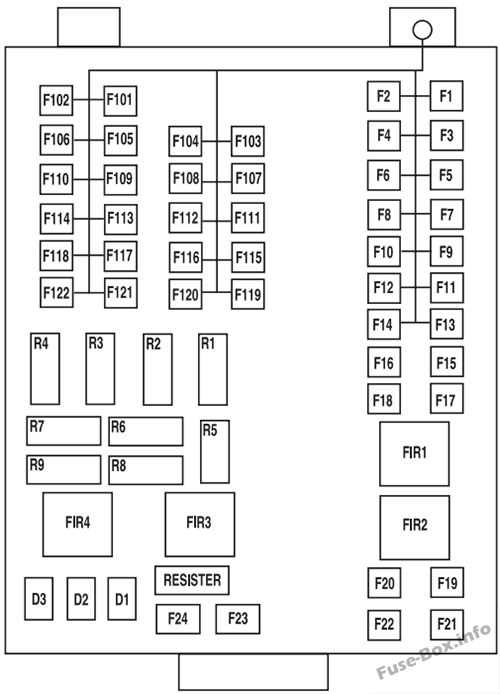

Locate the power distribution chart printed inside the cover and match each numbered cavity to its assigned circuit before removing any component to avoid disconnecting active systems such as ABS or ignition.
Interior panel sections usually group low-amperage circuits, while the engine bay unit handles high-load systems like starter relay, blower motor, and charging lines; use this separation to narrow down faults quickly.
Follow this identification sequence to read the layout correctly:
- Find the grid numbering molded into the plastic frame
- Match each number to the legend printed on the cover
- Confirm amperage values stamped on each insert
- Verify circuit purpose such as headlights, radio, or trailer feed
When replacing a burned element, check for discoloration or melted plastic around the slot; this indicates excessive current draw and requires inspection of wiring rather than simple replacement.
Use a multimeter to validate each slot before installing a new component:
- Set the device to continuity mode
- Touch probes to both metal contacts
- Listen for a tone or check for near-zero resistance
- Reject any unit with no continuity
High-current sections often include cartridge-style links rated above 40A; these protect systems like cooling fans and power distribution lines and require firm seating to ensure stable contact.
For troubleshooting intermittent faults, gently wiggle the installed elements while monitoring system response; loose terminals can interrupt power flow without visible damage.
After servicing, reinstall the protective cover tightly and ensure all clips engage fully to prevent moisture intrusion, which can corrode contacts and lead to repeated electrical faults.
Exact fuse box locations in 2003 Ford F650 and panel access steps
Check the driver-side lower dashboard area first; the interior power distribution panel sits behind a removable trim section just left of the steering column and handles lighting, gauges, and accessory circuits.
To reach this cabin-mounted unit, remove the retaining screws or pull clips holding the knee panel, then pull the cover straight outward; resistance usually comes from aging plastic clips, so apply steady pressure rather than jerking.

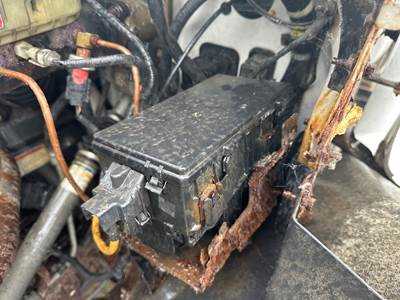

The engine compartment unit is mounted along the driver-side fender well, close to the battery and brake master cylinder, and contains high-current links for starting, charging, and cooling systems.
Open the under-hood panel by pressing locking tabs on both sides of the protective lid and lifting it upward; ensure the ignition is off before accessing these terminals due to constant battery feed in several slots.
A third distribution point may be positioned behind the passenger-side kick panel or near the firewall depending on configuration, typically serving auxiliary equipment and trailer connections.
For safe access across all locations, follow this order: disconnect negative battery cable, remove protective covers, identify slot numbers using molded markings, then proceed with inspection or replacement.
After completing work, reinstall each cover securely, confirm all clips are engaged, and reconnect the battery; loose covers can allow moisture and debris to reach terminals, leading to corrosion and unstable electrical supply.
