Check the cabin power panel under the dashboard on the driver side as soon as an electrical component stops working. Remove the cover and compare each slot with the printed chart to locate the correct circuit quickly.
The compact SUV from this model year uses a structured panel where low-amperage elements (5A–15A) control radio, instrument cluster, and lighting, while higher ratings (20A–30A) support power windows, locks, and accessory outlets. Each slot is labeled to match a specific system, allowing precise identification.
Inspect the metal strip inside each element for breaks or burn marks. For example, the audio system usually connects to a 10A position, while the power outlet often uses 20A. Matching the exact rating during replacement prevents wiring damage behind the dashboard.
The layout printed on the cover includes slot numbers and circuit names such as HVAC controls, airbag system, and body control module. Use this reference to trace which system lost power and isolate the faulty component without removing multiple parts.

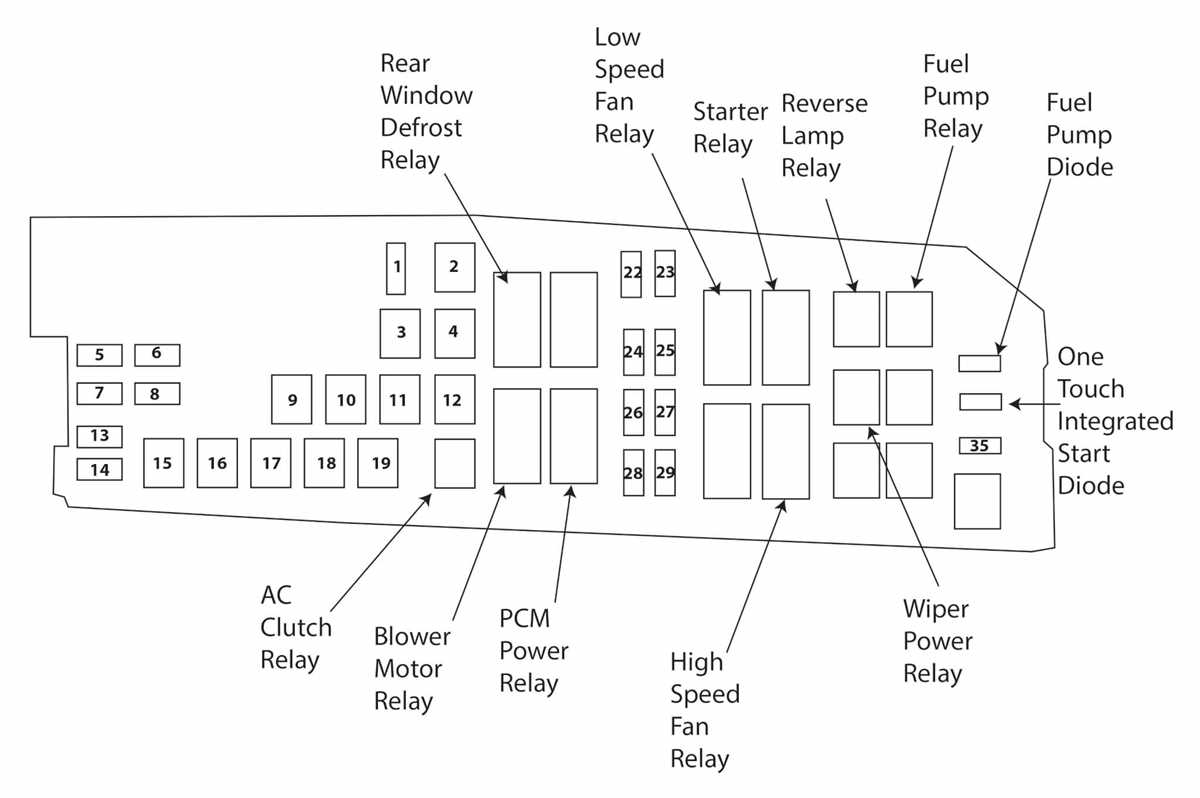

2011 Ford Escape interior fuse box diagram with panel layout and circuit details
Use the panel label under the dashboard to match each slot number with its assigned circuit before removing any component. This mapping shows which electrical line controls systems like radio, climate control, or dashboard indicators.
The cabin power distribution unit groups circuits by load and function. Upper rows typically contain low-current lines such as memory, audio, and instrument cluster (5A–15A), while lower rows handle higher demand components like power windows and outlets (20A–30A). Each position is marked with a name and rating, allowing quick identification during troubleshooting.
Typical circuit assignments
- Audio system and display – 10A
- Instrument cluster – 10A
- Interior lighting – 7.5A
- Power outlet – 20A
- Door locks – 20A
Check both the label and the printed amperage on each element before replacement. Installing a higher-rated piece can cause overheating in wiring behind the dashboard, while a lower rating may fail repeatedly under normal load.
Interior fuse box location near dashboard and access instructions
Look under the driver-side dashboard near the kick panel and locate the plastic cover secured by clips. Pull it outward gently or use a trim tool to release it without damaging the edges.
The cabin electrical panel is mounted above the footwell area, slightly recessed behind wiring harnesses. Use a flashlight to read slot labels clearly, as visibility is limited due to the position and surrounding components.
Switch off ignition and remove the key before accessing the panel, then use a small puller tool to extract components straight out. Avoid twisting to prevent loosening the metal contacts inside the slots.
After removal, align each piece with its original position using the printed layout on the cover. Incorrect placement can disable unrelated systems such as lighting, audio, or control modules.
