To access the main electrical components of your vehicle, start by locating the central power distribution panel. This is typically situated under the dashboard on the driver’s side. It houses fuses that control crucial systems like lighting, ignition, and interior electronics. Make sure the vehicle is powered off before attempting to open the panel.
If the panel isn’t found inside the cabin, check the engine compartment. The larger power distribution center is usually positioned near the battery. This location contains fuses for high-power systems such as the alternator, engine, and cooling components. The cover for this panel is often marked and can be removed for easy access.
Once you access the panel, you will notice various fuses arranged in a grid or rows, each with a specific function. These fuses protect circuits from electrical overload and prevent damage to the components they serve. If a system isn’t working properly, inspecting these fuses is the first step in identifying the problem. Always replace blown fuses with new ones that match the required amperage to avoid further electrical issues.

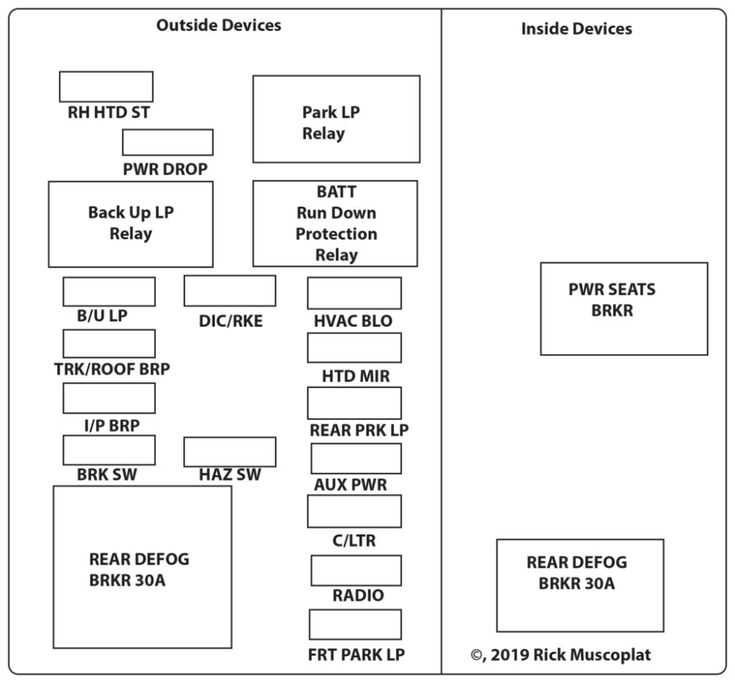

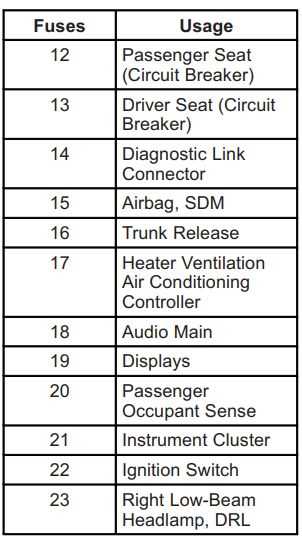

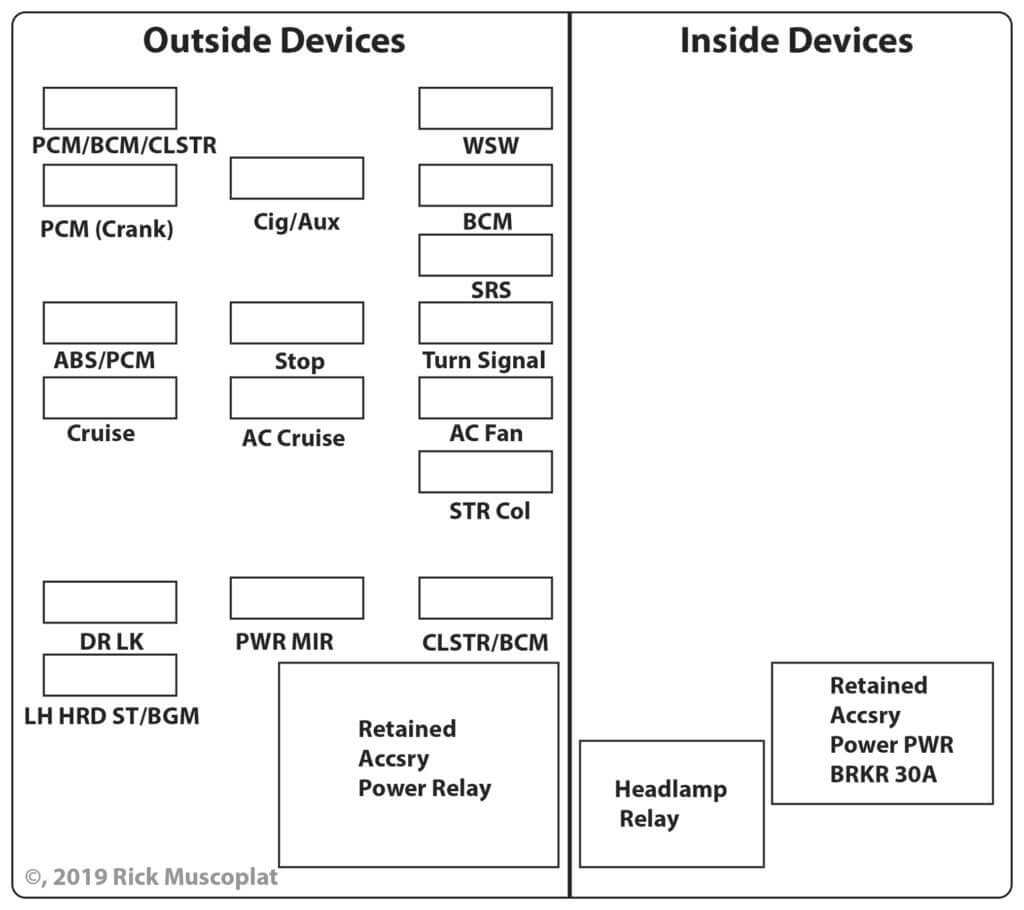

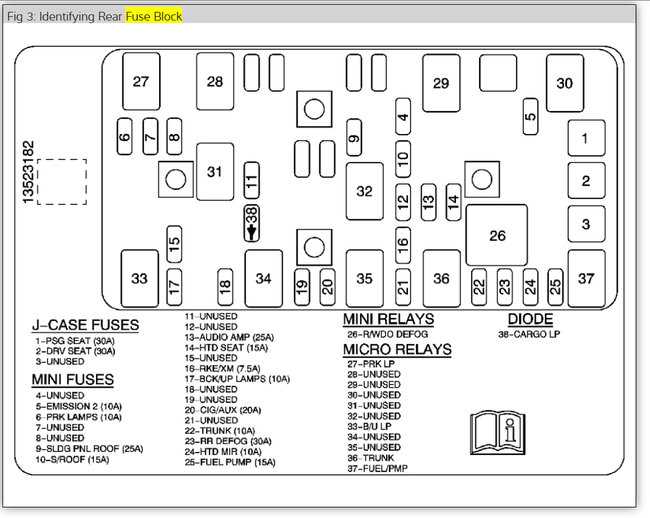

Chevy Malibu Fuse Box Diagram
Locate the primary electrical panel inside the cabin, under the driver’s side dashboard. This panel houses the fuses that control vital systems, such as the interior lighting, air conditioning, and stereo. The cover can be removed easily by hand or with a flathead screwdriver. Always ensure the vehicle is turned off to prevent electrical hazards while working in this area.
Engine Compartment Power Distribution
If the interior panel doesn’t solve your issue, the larger distribution center in the engine bay is the next step. It’s typically situated near the battery or fender. This section houses high-power components like the alternator and cooling system. The cover is usually marked with symbols and is easy to remove by pulling up the latch or unscrewing the bolts.
Checking and Replacing Blown Fuses
- Use a pair of needle-nose pliers to remove a suspected faulty fuse.
- Inspect the fuse for a broken metal strip, indicating it is blown.
- Replace the damaged fuse with a new one that has the same amperage rating.
- After replacing, ensure the panel cover is securely closed to avoid dirt or moisture entering.
How to Locate the Fuse Panel in a Chevy Malibu
Start by checking the driver’s side of the vehicle, under the dashboard near the footwell. The electrical panel is usually hidden behind a plastic cover. You can remove this cover easily with your hands or using a flathead screwdriver. This panel houses various components, such as the interior lights, stereo, and other essential systems.
If you don’t find the panel under the dashboard, the next place to check is the engine compartment. The larger power distribution center is typically positioned close to the battery or along the fender. This center contains fuses that manage high-power components, such as the alternator and ignition system.
To locate the engine compartment panel, first identify the battery, then look nearby for a rectangular or square cover. The cover may be labeled with symbols that help identify the circuits inside. Use a flat tool to gently lift the cover if it’s difficult to remove by hand.
Once the cover is removed, inspect the layout of the circuits. This panel is typically marked with various symbols next to each fuse, indicating the component it controls. Be sure to check the vehicle’s manual to verify the correct function for each circuit and fuse.
If you’re unable to find the panel in either location, check the owner’s manual for more detailed instructions or a diagram of the exact fuse panel locations. Sometimes, there might be additional panels inside the cabin or hidden in less accessible areas like the trunk.
After accessing the panel, make sure to securely replace any fuses that may be blown. It’s recommended to always keep spare fuses in the vehicle to address electrical issues on the go. Ensure that you are replacing a blown fuse with one that matches the required amperage to avoid damage to the vehicle’s electrical system.
