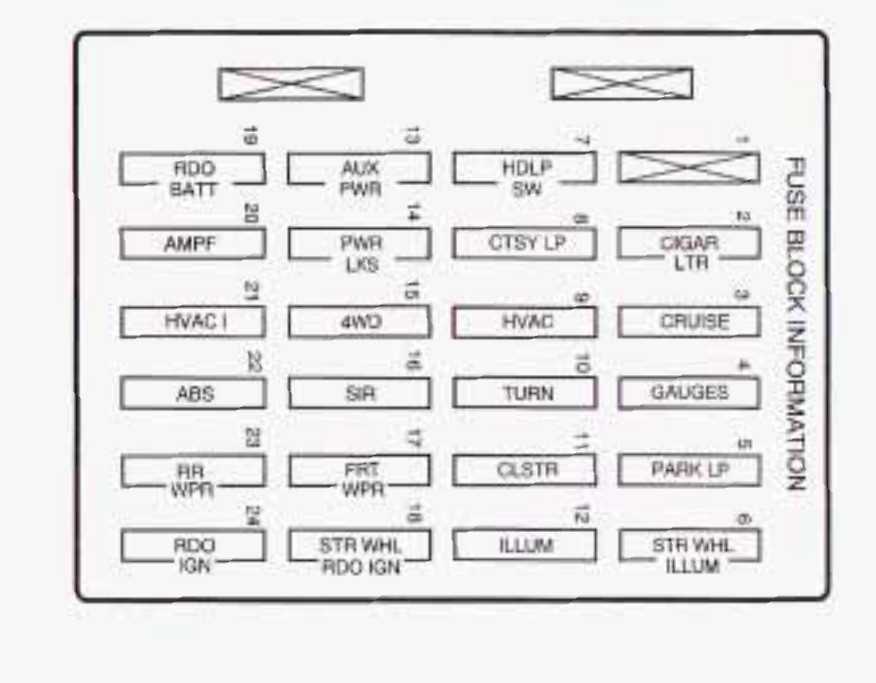

2003 Chevy Silverado Circuit Control Panel Layout
The primary electrical control unit is located beneath the driver’s side dashboard. This area holds the essential circuits for various vehicle functions. To access it, carefully remove the cover, which may be held in place by clips or screws. Ensure the vehicle is powered off before starting this process to avoid electrical shocks.
Once you remove the cover, you will find the layout of the electrical components clearly labeled. The circuits are arranged in rows, with each slot marked according to the system it powers, such as lighting, climate control, and more. Refer to your owner’s manual to confirm the specific locations for each feature if labels are unclear.
Identifying and Replacing Faulty Circuits
If a particular feature stops working, such as the power windows or dashboard lights, use the diagram to locate the corresponding circuit. If the circuit appears damaged or blown, it will need to be replaced. Always replace a damaged circuit with one of the same amperage rating to ensure safe operation.
Keep a set of spare circuits on hand for easy replacements. It’s a good idea to regularly inspect the circuit control unit to identify any signs of wear or damage. If you notice frequent circuit failures, it may indicate an underlying problem that requires professional diagnosis.
Common Electrical Issues and Troubleshooting
Regularly check the panel for any blown circuits, as they are a common cause of electrical failure in specific features. If the air conditioning or heater stops working, first check the corresponding circuit for damage. Many times, replacing a single circuit will restore function to the affected system.
- Check for any visible burn marks or damage around the circuits.
- Replace damaged circuits with the appropriate amperage rating.
- Test the affected system after replacing the circuit to ensure it works properly.
In some cases, if multiple systems fail, there may be an issue with the electrical system itself. In such instances, it’s best to have the vehicle inspected by a professional to determine if there are deeper problems, such as a short circuit or faulty wiring.
Once the problem is resolved, always reassemble the panel properly and ensure the cover is securely placed back. This will prevent dust or debris from entering the compartment and potentially causing future issues.
