Check the electrical panel layout first to match each circuit with its assigned slot before replacing any protective element. This avoids installing the wrong amperage and prevents repeated failures in lighting, infotainment, or engine control systems.
The mid-size SUV from the late 2000s uses multiple power distribution panels located under the hood, inside the cabin, and in the rear compartment. Each panel contains labeled slots tied to specific components such as fuel pump, ABS module, climate control, and audio system. Accurate identification of these slots helps isolate faults without unnecessary part replacement.
Use a test light or multimeter to confirm continuity before swapping any part. A broken link inside the small protective unit often signals a short circuit or overload. Replacing it without addressing the root cause can lead to repeated electrical faults, especially in high-load systems like heated seats or power windows.
Pay attention to amperage ratings marked on each element. Installing a higher-rated piece may allow excessive current flow, which risks damaging wiring or control modules. Keeping a printed panel layout or reference chart in the glove box helps speed up diagnostics during roadside issues.

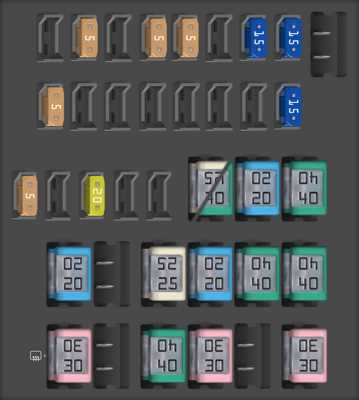

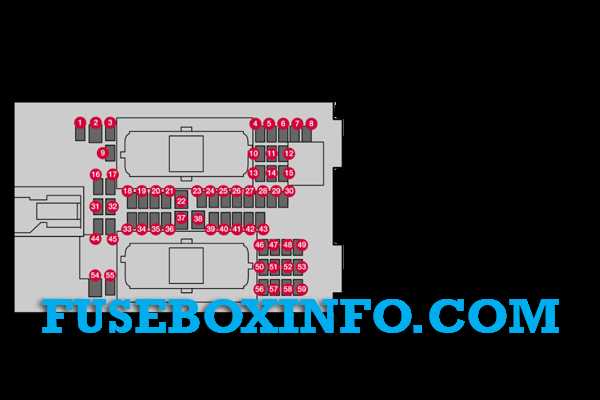

2007 Volvo XC90 Fuse Diagram with Box Locations and Circuit Details
Locate each power distribution panel before diagnosing any electrical fault; this model uses three main blocks positioned under the hood near the battery, behind the dashboard panel on the driver side, and in the rear cargo area. Access the cabin block by removing the side trim, while the engine bay unit requires lifting the protective cover secured by clips.
Match each slot to its assigned circuit using the printed layout inside the cover or a reference chart. Key systems are grouped by function:
- Engine bay block: ignition coils, cooling fan, ABS pump
- Dashboard block: interior lighting, radio unit, OBD port
- Rear compartment: fuel pump, trailer wiring, rear wiper motor
Check amperage values stamped on each component before replacement. Typical ratings include 5A for sensors, 15A for accessory outlets, and up to 40A for high-load systems like blower motors. Using a higher rating increases risk of wiring damage, while a lower one may fail under normal load.
Test continuity with a multimeter across both terminals after removal. If no signal passes, inspect the related circuit for short conditions such as damaged insulation or moisture intrusion. Repeated failure in the same slot usually points to a downstream issue rather than a defective part, especially in circuits powering heated seats or window regulators.
Fuse Box Locations in 2007 Volvo XC90 and How to Access Them

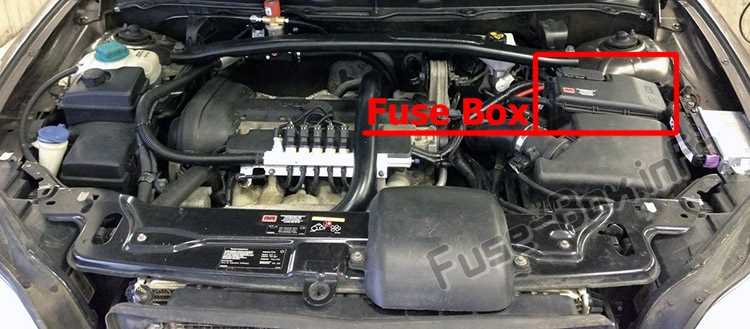

Open the hood and inspect the main power distribution unit near the battery on the left side; release the plastic clips and lift the cover to reveal high-current circuits linked to engine and cooling systems.
Access the interior panel by removing the side trim on the driver’s side dashboard. Use a flat trim tool to avoid damaging clips, then pull the cover outward to expose low-amperage circuits assigned to cabin electronics such as lighting, audio, and control modules.
The rear compartment unit sits behind a removable panel on the left side of the cargo area. Fold back the carpet lining, then unclip the protective cover. This section handles systems like the fuel delivery unit and rear electrical accessories.
Keep a flashlight nearby when working in tight cabin spaces, as visibility is limited under the dashboard. Label positions before removing any component to prevent confusion during reassembly, especially in densely packed interior sections.
Ensure the ignition is off and the key is removed before opening any panel. Disconnecting the battery is recommended when working with high-load circuits in the engine compartment to reduce the risk of short circuits or accidental contact.
