Check the power distribution panel under the dashboard first, as most cabin-related failures originate there. Interior lighting, radio, and auxiliary outlets are typically grouped on low-amperage circuits between 5A and 20A, while higher loads like blower motors use stronger protection elements rated above 25A.
In the engine compartment, locate the secondary protection unit near the battery or along the firewall. Starter relay circuits, charging system links, and cooling fan controls are placed here to reduce wiring length and voltage drop. Always compare the amperage marking on each element with the circuit requirement before replacement to avoid overheating or wiring damage.

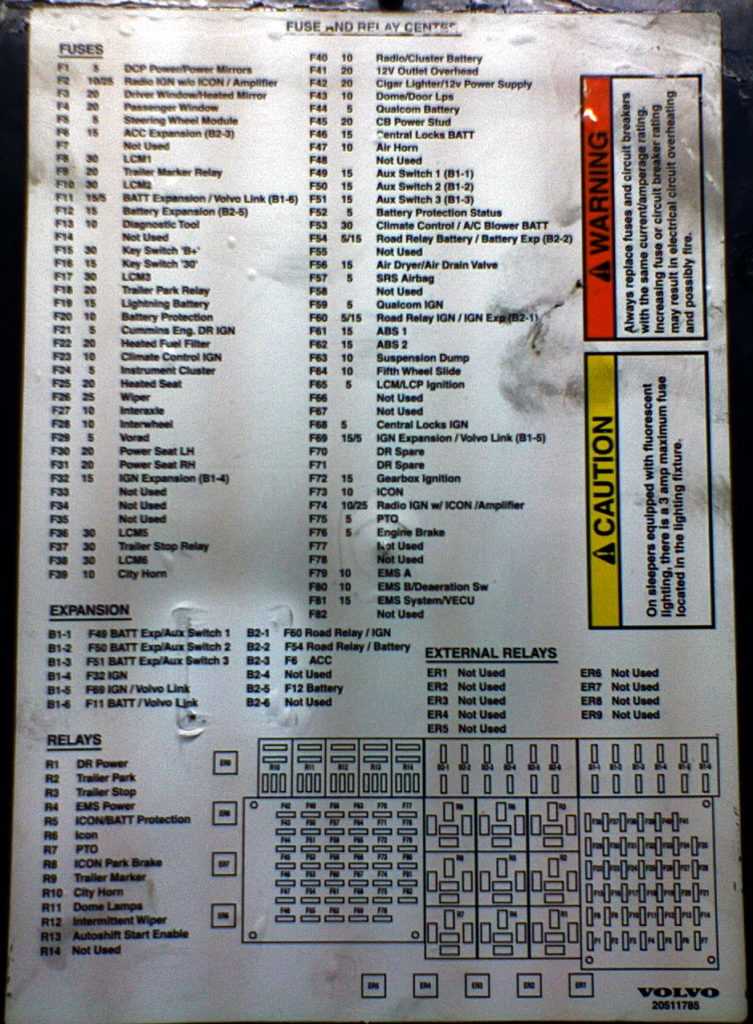

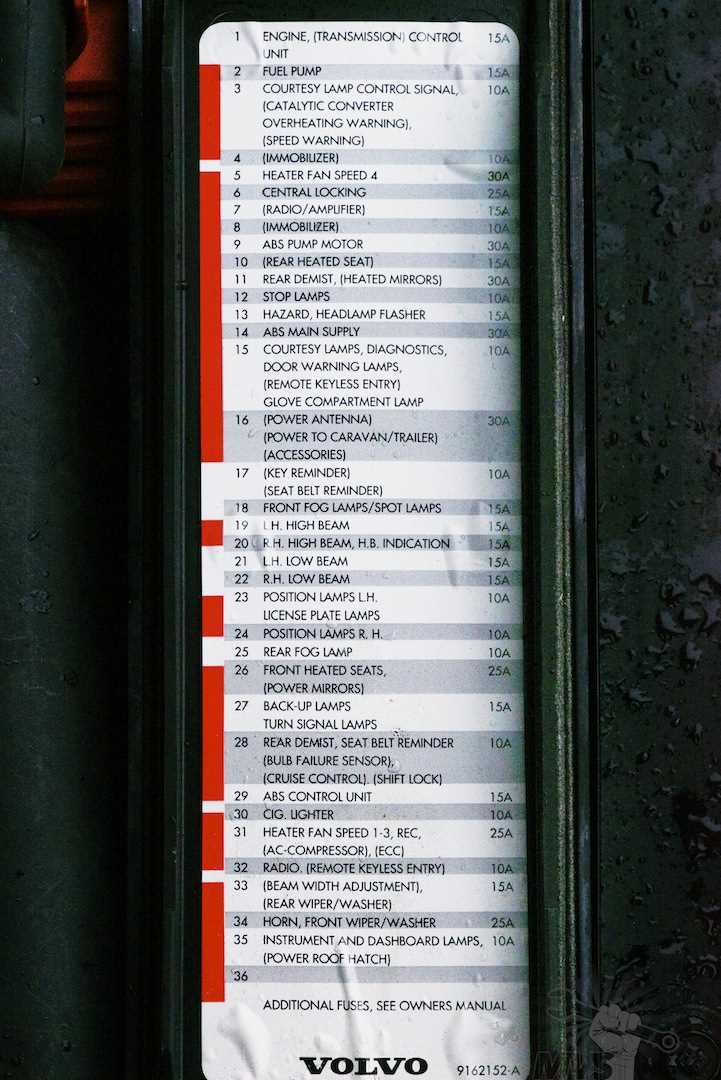

Use the printed layout reference inside the panel cover to match each slot with its function. If the cover is missing, identify circuits by tracing wire colors and connector positions. Burn marks, melted plastic, or repeated failure of the same component often indicate a deeper electrical fault rather than a simple overload, requiring inspection of connected devices and wiring harnesses.
2000 Volvo Truck Fuse Box Diagram and Electrical Layout Reference
Locate the primary power distribution panel beneath the driver-side dashboard and verify each slot against the printed layout on the cover. Circuits for gauges, interior lighting, and control switches are grouped in this section, typically protected by 5A to 15A elements.
Inspect the engine compartment relay and protection center near the battery. This unit handles starter control, alternator output lines, and cooling systems, where higher current ratings such as 30A to 60A are standard.

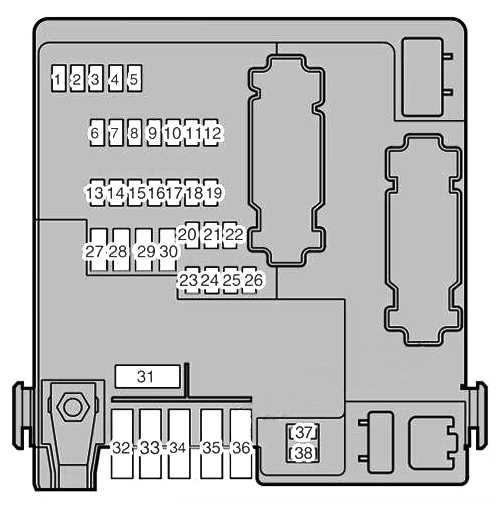

Match each circuit position using numbering stamped directly onto the panel frame. If markings are faded, trace wiring harness colors–yellow with red stripe often links to ignition systems, while solid black usually indicates grounding paths.
Replace any blown component only after checking load devices connected to that circuit. Repeated failure in the same slot often signals short circuits or damaged insulation along the wiring route.
Use a multimeter to confirm continuity across each protective element. A reading near zero ohms indicates proper condition, while infinite resistance confirms a break in the circuit.
Relay Position Identification and Function Mapping
Relays are typically arranged in rows beside the protection panel, each assigned to systems such as headlights, fuel delivery, or horn operation. Click response during activation helps confirm relay engagement and basic functionality.
Swap identical relays temporarily to test suspected faults, ensuring both units share identical pin configuration and amperage handling capacity.
Wiring Layout Interpretation and Circuit Flow
Follow circuit paths from the power source through protection points to the end device. Consistent voltage drop readings along the line indicate stable connections, while sudden drops highlight resistance buildup or connector corrosion.
Fuse Box Location in 2000 Volvo Truck Cabin and Engine Compartment

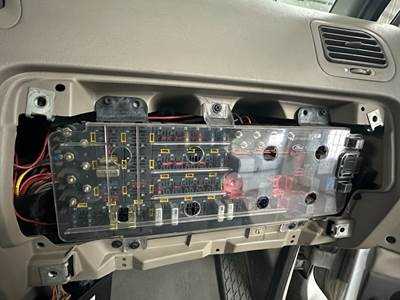

Check under the left side of the dashboard near the driver seat to find the main power distribution panel; it is usually mounted behind a removable plastic cover secured with clips or screws. This interior unit controls low and medium load circuits, including dashboard instruments, switches, and cabin accessories.
Open the front hood and inspect the area close to the battery or along the firewall to locate the secondary protection module. This section handles high-current systems such as starter circuits, cooling fans, and charging lines, and is typically enclosed in a sealed casing to protect against moisture and dirt.
Confirm both locations by tracing thick power cables from the battery terminals, as they lead directly to these distribution points. Clear labeling inside the covers or on the housing edges helps identify each section quickly and reduces the risk of selecting the wrong circuit during inspection or replacement.
