Check the interior electrical panel under the driver side dashboard and locate the slot assigned to key accessories such as lights, ignition feed, and cabin electronics; this panel contains low-amperage inserts typically rated between 7.5A and 15A.
The engine compartment distribution unit holds higher-capacity elements for systems like cooling fans, charging circuit, and ABS. These components are arranged in a grid with clear labels on the cover, allowing quick identification of each circuit without removing wiring harnesses.
Use the color and number markings on each insert to confirm proper placement. Brown, red, and blue pieces indicate different amperage levels, and matching these values prevents overheating or repeated shutdowns of connected systems.
If a circuit fails, remove the suspect element using a puller and inspect the metal link inside. A broken or darkened strip signals the need for replacement, while intact parts require further inspection of relays, connectors, or grounding points.
99 Toyota Tacoma Fuse Box Layout with Detailed Circuit Identification Guide
Locate the cabin panel beneath the steering column and match each numbered slot with its assigned circuit; positions typically include lighting, ignition feed, wipers, and accessory power lines, all arranged in a compact vertical layout.

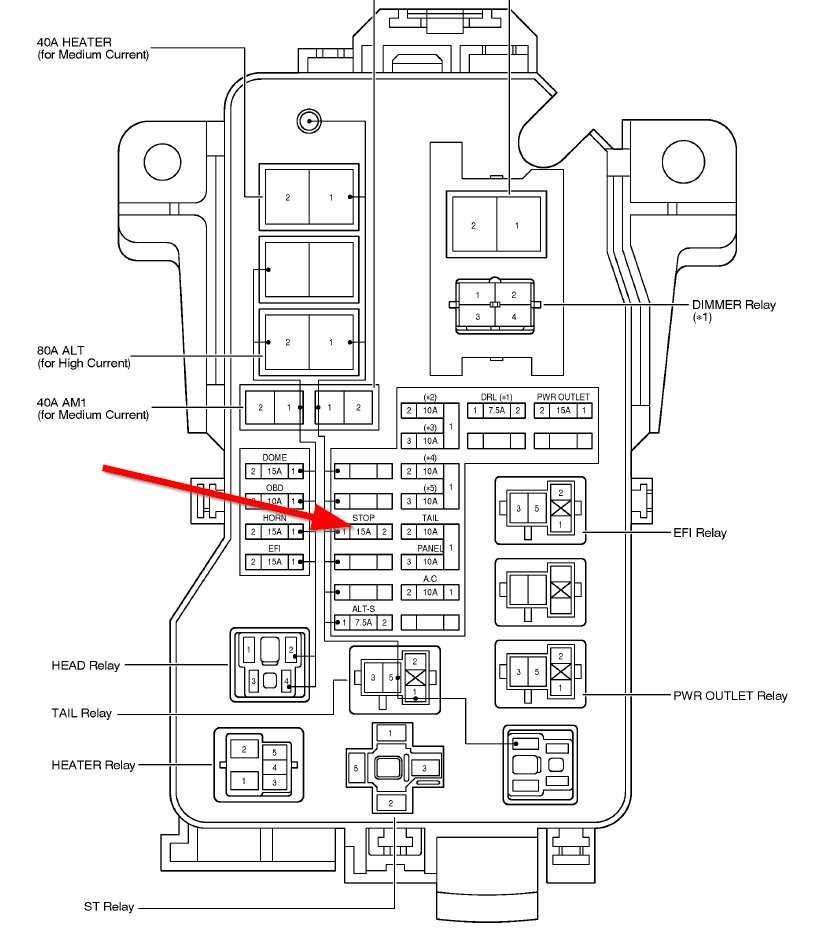

The engine bay distribution unit contains higher-capacity inserts and relays for systems such as cooling fans, charging circuit, and ABS; each position is labeled on the cover with amperage values ranging from 30A to 100A, and verifying both number and rating ensures correct placement while preventing wiring damage or malfunction in connected components.
Interior Fuse Panel Slot Numbers and Circuit Assignments Explained

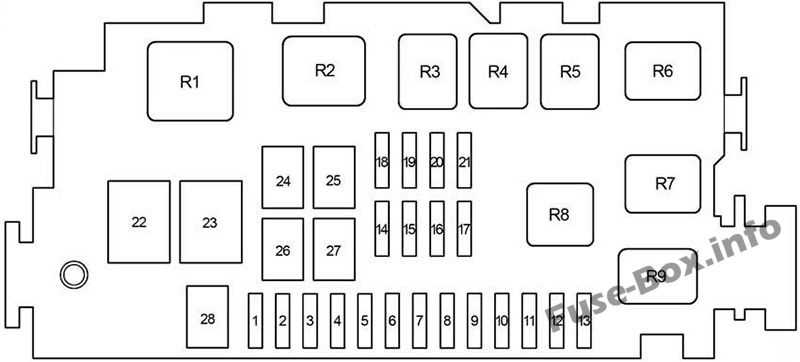

Check the driver-side lower dash panel and identify numbered slots stamped into the plastic frame; each number corresponds to a specific circuit such as tail lamps, heater fan, or accessory outlet.
Use the panel cover legend to match slot numbers with functions; most cabin circuits use low-amperage inserts between 7.5A and 20A, positioned in vertical rows for quick access.
Common slot assignments include:
- Slot 1–3 for lighting circuits including tail and marker lamps
- Slot 4–6 for ignition-switched accessories
- Slot 7–9 for wipers, washer pump, and heater controls
Color coding helps confirm ratings, where brown indicates 7.5A, red marks 10A, and blue represents 15A, allowing visual verification without reading small markings.
Pull each insert carefully using a plastic tool and inspect the internal strip; a visible break confirms failure and explains loss of power in the assigned circuit.
For accurate troubleshooting, test voltage at both terminals of the slot while the ignition is active; a reading near 12 volts confirms proper supply from upstream wiring.
Reinstall components firmly to avoid loose contact, which can cause intermittent faults during vibration or movement.
- Match slot number with panel legend
- Confirm amperage using color and printed value
- Check continuity or voltage before replacement
