Check the under-hood power distribution unit located on the driver’s side for a detailed map of circuit protectors. Each slot is clearly numbered, with amperage ratings marked on the cover for rapid identification. High-current slots are grouped separately from standard circuits, simplifying troubleshooting of starter, alternator, and main lighting circuits.
Inside the cabin, the auxiliary protective panel near the glove compartment holds smaller amperage devices controlling interior electronics, infotainment, and auxiliary sockets. Labels on the underside of the lid provide precise correspondence between each location and its assigned component, reducing guesswork during replacement or inspection.
For maintenance, remove the cover slowly to avoid misalignment of connectors. Keep a reference print or digital snapshot of the layout, highlighting frequently accessed relays and fuses. Careful observation of worn or discolored terminals can prevent intermittent electrical failures before they impact vehicle operation.
When replacing any unit, always match the original rating exactly. Using higher amperage devices may temporarily restore function but risks wire overheating and potential fire hazards. Use a test light or multimeter to verify continuity after replacement and ensure full restoration of power to critical systems.
2013 4Runner Electrical Panel Layout
Locate the primary electrical hub beneath the dashboard on the driver’s side; each slot is labeled with amperage and circuit designation. This will prevent unnecessary testing of unrelated circuits.
The secondary junction is under the hood near the battery, enclosed in a black plastic case. Slots here manage high-current components like the cooling fan, headlights, and ABS module.
Slots controlling interior accessories–audio, power windows, and seat heaters–are arranged in the main cabin module. Pull the cover gently to reveal both the fuses and their descriptive legends.
Slot Identification Tips
Use the printed legend on the cover as a guide. Each slot has a number corresponding to a specific load, such as “ACC” for auxiliary power, “EFI” for fuel injection, and “RR DEF” for rear defogger.
Replace any blown element with one of the same rating. Overrating can damage wiring harnesses or downstream modules.
For troubleshooting intermittent failures, a test light or multimeter is preferred over guessing. Check for corrosion or loose connectors, especially in the engine bay module.
Maintenance Advice
Periodically inspect both hubs for moisture or debris. A dry, clean compartment prolongs component lifespan and ensures consistent voltage supply to all critical circuits.

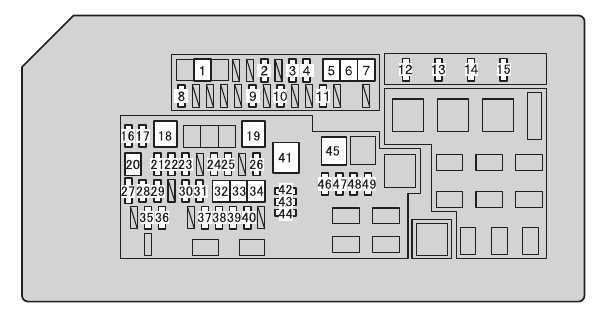

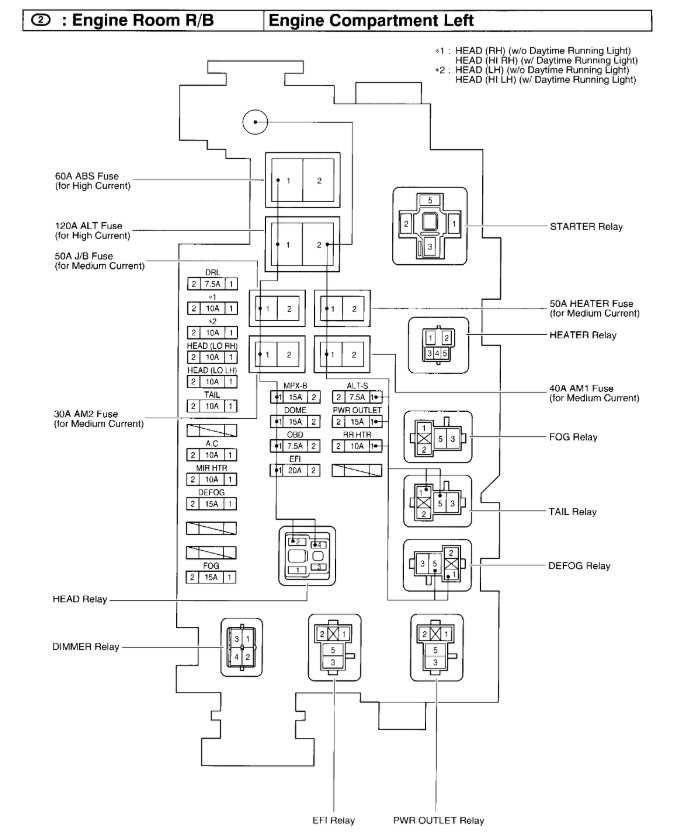

Locating the Engine Compartment Fuse Assembly
Access the power distribution unit by opening the hood and focusing on the driver’s side near the battery. It is a black rectangular enclosure with a removable cover secured by clips. Avoid touching other components to prevent accidental shorts.
Check the cover for an embossed layout indicating which circuit each internal protector controls. This helps identify the correct segment before removal, minimizing the risk of handling the wrong connection.
For vehicles with additional power modules, the primary unit is positioned closest to the main battery terminal. Look for a plastic tab labeled with a lightning bolt symbol; this marks the main enclosure that houses all the critical fuses.
Steps for Clear Access
Lift the hood fully and secure it. Remove any obstructing panels or air intake tubing nearby. The protective lid can be gently pried off with a flat tool if clips are stiff. Keep small parts organized to prevent loss.
Once opened, inspect for corrosion or loose connections. The internal layout is divided into rows, each corresponding to systems such as headlights, ignition, and cooling fans. Reference the markings to identify circuits without guessing.
After maintenance, align the cover carefully and press until clips snap into place. Ensure no wiring is pinched, then close the hood. This ensures the power enclosure remains sealed against moisture and debris, preserving long-term reliability.
