Locate the primary interior electrical panel beneath the dashboard on the driver’s side. Remove the cover by pressing the release tabs to expose the array of protective components. Ensure the ignition is off before handling any elements to prevent shorts or shocks.
Check each slot for wear or discoloration. Replace any damaged protective element with one of the exact amperage rating stamped on the component. Incorrect ratings can cause system malfunctions or wiring damage.
Document the current configuration before removal. Note the placement of all elements, including auxiliary circuits for lighting, climate control, and infotainment. A clear record prevents misplacement during reinstallation and ensures proper system function.
Location of the Corolla Electrical Panel
Access the primary cabin electrical panel by opening the lower dashboard compartment on the driver’s side. It is secured with two tabs that can be pressed to release the cover safely. Ensure the ignition is off before attempting removal to avoid electrical hazards.

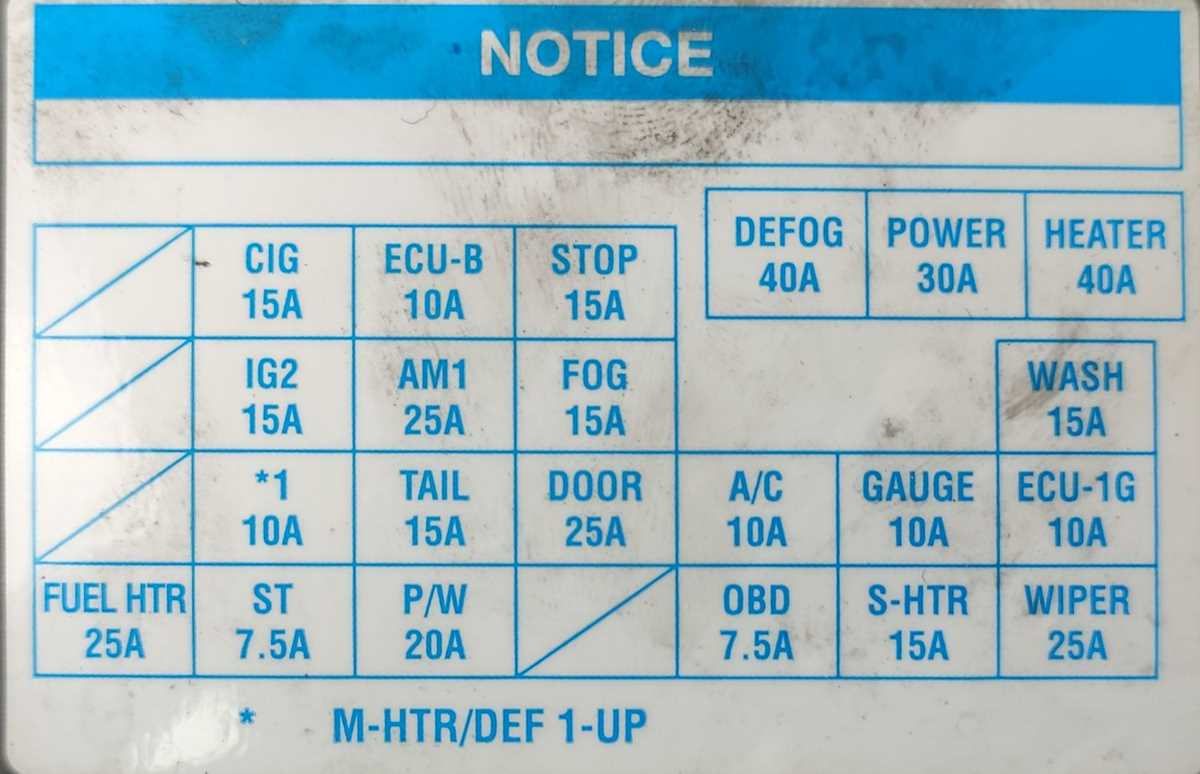

Behind the cover, the protective elements are arranged in a grid. Each slot corresponds to a specific circuit including headlights, interior lighting, and climate control. The layout is printed on the inside of the panel cover for quick reference.

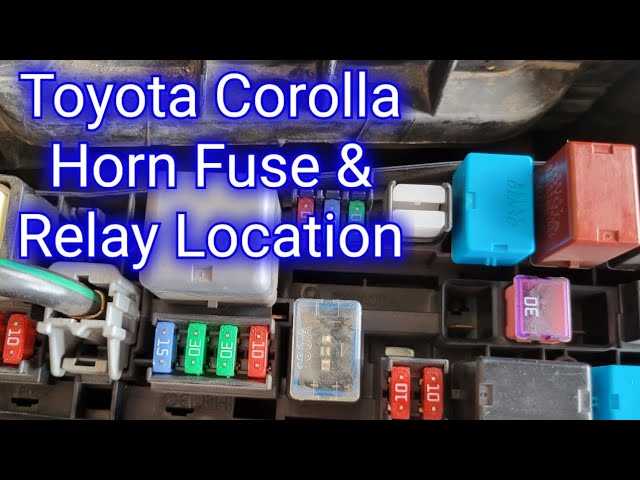

For under-hood auxiliary panels, locate the secondary module near the battery on the driver’s side. This contains high-current protective components for the engine, cooling system, and power outlets. Remove the cover carefully, noting the positions of all elements for reinstallation.
- Interior panel: under dashboard left side
- Under-hood module: next to battery on driver’s side
- Rear auxiliary panel (if equipped): behind the trunk trim
- Always disconnect the negative battery terminal when handling high-current slots
Circuit Identification and Amperage Ratings
Check each electrical pathway using the labeled panel inside the cabin compartment. Circuits for headlights, tail lamps, and interior accessories are marked with codes that correspond to their amperage rating. Verify the amperage before replacing any component to prevent overloading.
High-current circuits are grouped in the under-hood module. These protect systems such as the starter, air conditioning compressor, and auxiliary power outlets. Each slot is stamped with a numeric value representing maximum current, typically ranging from 10A to 40A.
Interior Circuit Ratings
Slots controlling interior electronics, including dashboard lighting and infotainment, are rated between 7.5A and 20A. Use a digital multimeter to confirm continuity before making replacements, and follow the labeling on the panel cover for precise identification.
Engine and Auxiliary Circuit Ratings
Modules near the engine compartment handle high-load pathways. Components such as the ignition, cooling fans, and power seats usually require 20A to 40A protection. Ensure connectors are seated fully and that the protective element matches the stamped amperage to maintain system stability.
Step-by-Step Instructions for Module Inspection and Replacement
Disconnect the vehicle battery before touching any modules. This prevents short circuits or damage to electronic components. Use a 10mm wrench to remove the negative terminal and confirm the system is powered down.

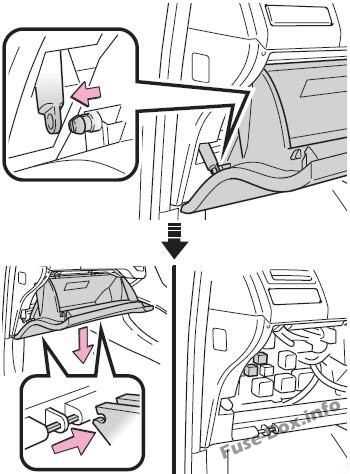

Locate the interior and under-hood modules using the panel guide. Interior modules are usually behind the glove compartment or under the dashboard, while high-current modules are near the engine bay on the driver’s side. Remove any protective covers to access connectors.
Inspect each connector for corrosion or loose pins. Check that terminals are straight and clean, using dielectric grease to prevent future oxidation. Modules with burnt connectors or melted insulation must be replaced immediately.
Remove faulty modules by gently pressing the locking tabs on each connector. Use a plastic trim tool if necessary to avoid damaging surrounding components. Keep screws and clips organized to ensure correct reinstallation.
Install the replacement module by aligning connectors carefully and pressing until the locking tabs click. Verify that the module sits flush against the mounting surface. Reattach screws and clips in their original positions.
Reconnect the battery and test all circuits. Turn on the ignition and operate affected systems such as lighting, infotainment, or HVAC controls. Monitor for warning indicators on the dashboard and ensure each function operates within specified parameters before completing the procedure.
