Check the panel layout label first before removing any electrical link, as each position corresponds to a specific circuit and rated amperage.
This mid-size sedan uses multiple protection panels, typically located under the dashboard and in the engine compartment. Each section contains numbered slots tied to systems such as headlights, wipers, ignition, and interior electronics. Matching the correct position avoids disconnecting unrelated components.
Use a puller tool or small pliers to remove a damaged element and inspect the internal metal strip. A visible break or discoloration indicates failure. Replace it with the same amperage rating, commonly ranging from 10A to 40A depending on the circuit load.
Read the panel cover markings carefully, as abbreviations like ACC, IGN, and ECU identify circuit roles. Installing a higher-rated component can lead to wiring overheating, while a lower rating may cause repeated shutdowns.
Access interior panels by removing trim near the driver footwell, while the engine compartment unit is secured under a plastic cover with clips. Keep spare links in the vehicle to handle sudden electrical interruptions without delay.

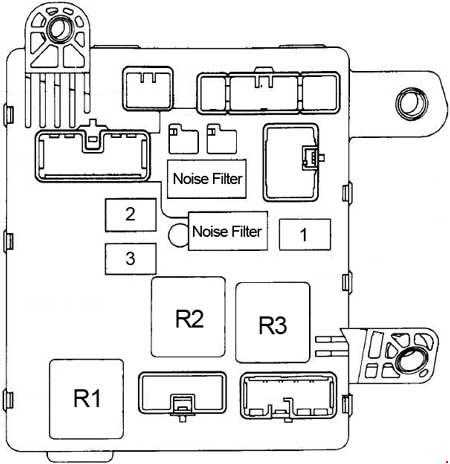

1993 Toyota Camry Fuse Box Diagram with Panel Locations and Circuit Details
Use the panel cover map to match each slot number with its circuit, checking amperage values before replacing any damaged link to avoid overloading wiring.
The interior panel under the dashboard contains low-current protection for systems such as radio, interior lights, and control modules, typically rated between 10A and 20A, while the engine compartment unit handles higher loads like cooling fans and ignition circuits with ratings up to 40A; follow this sequence during inspection:
- Turn ignition off
- Locate correct panel based on system failure
- Identify slot number using printed layout
- Remove and inspect metal strip for breaks
- Install replacement with identical rating

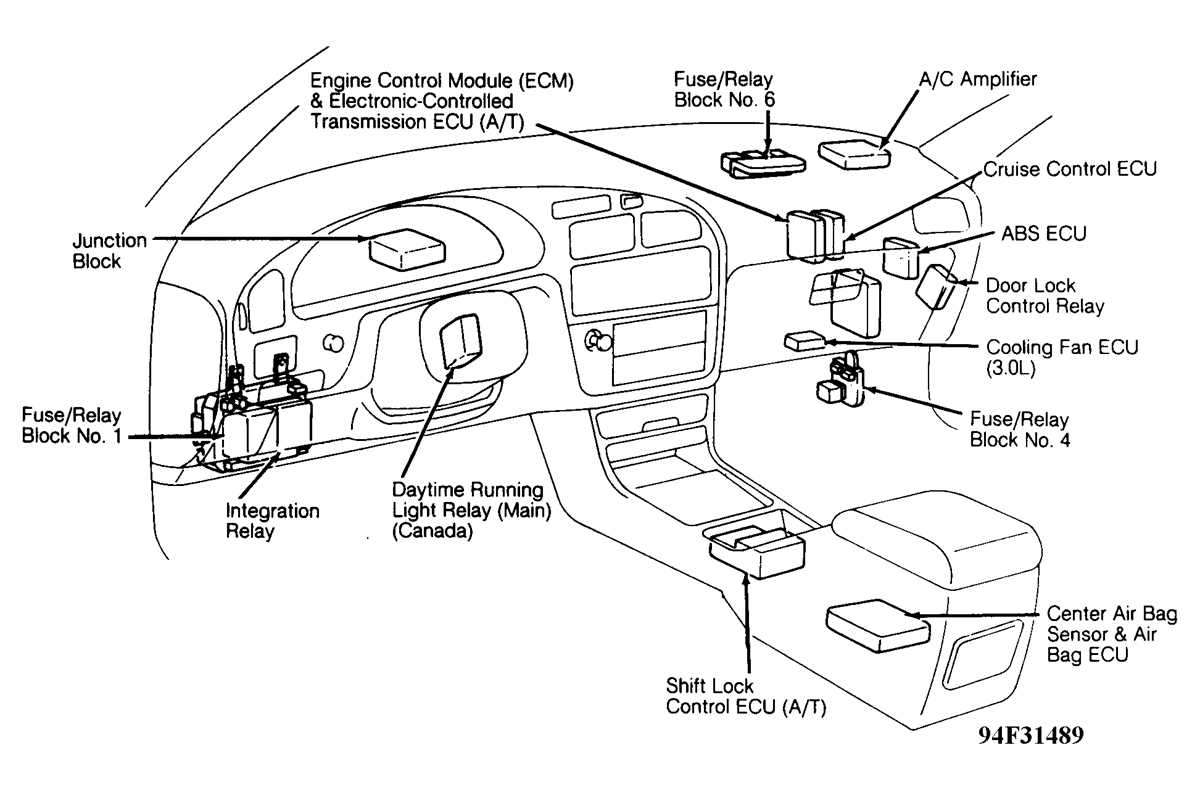

Exact location of fuse panels under dashboard and in engine compartment
Remove the lower dashboard cover on the driver side to access the interior panel, positioned just above the footwell near the steering column and secured behind a small plastic trim.
This interior unit is mounted horizontally and aligned with the left kick panel, making it reachable without tools in most cases. Slot numbers are arranged in compact rows, and the cover often includes a printed layout for quick reference during inspection.
Open the hood and locate the engine compartment panel near the battery, typically on the driver side. It is enclosed in a rectangular plastic housing with locking clips that must be pressed inward before lifting the cover.
The under-hood unit sits close to major components like the air intake and coolant reservoir, with internal sections divided for relays and high-current links. Its layout is spaced wider than the interior panel due to larger amperage ratings.
Ensure both panels are accessed with the ignition off to prevent electrical shorts, and keep track of cover orientation so the printed layout matches the actual slot positions during reassembly.
