Start by checking the fuse box under the dashboard, on the driver’s side. This box controls most of the interior electrical functions. If you’re having issues with lights, radio, or air conditioning, it’s likely one of these fuses needs attention.
The second fuse panel is located in the engine bay. This one manages power to essential systems like the engine control module and the fuel pump. If the vehicle won’t start or experiences intermittent power loss, inspect this panel for any blown fuses.
Replace any blown fuses with ones that match the recommended amperage. Always ensure the new fuse fits snugly into the slot, and double-check that it’s the correct type for the circuit. Using an incorrect fuse could lead to further electrical problems.
Understanding the Electrical System and Component Layout
Check the engine compartment panel for a more complex set of circuits controlling the core components like the ignition, fuel pump, and engine control unit. This is where the major electrical systems are fused together, so it’s crucial to inspect the fuses if the vehicle experiences any performance issues.
If you notice that some accessories such as lights, wipers, or air conditioning are not functioning, the cabin fuse box is the first place to inspect. Located near the driver’s side, this panel controls smaller systems inside the vehicle and is often where problems with electrical functions arise.

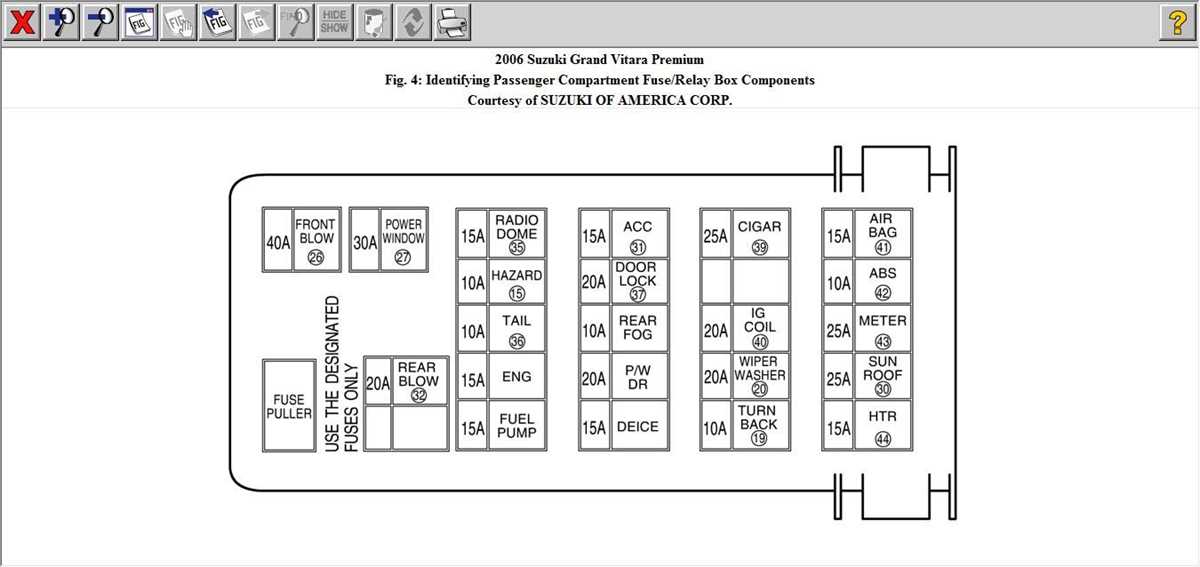

The fuse layout will be displayed on the inner side of the fuse box cover, listing the circuits controlled by each individual fuse. Make sure to consult this guide before attempting to replace any blown fuses to avoid mismatches or electrical malfunctions.
To remove a blown fuse, use a fuse puller or a pair of needle-nose pliers. Never use your hands directly to remove a fuse, as it can cause injury or electrical damage. After removing the faulty fuse, replace it with one of the same amperage rating to ensure proper operation of the circuit.
- The engine control fuse, typically located in the engine compartment, protects the vehicle’s primary computer system. If the vehicle won’t start or shows erratic behavior, this is a good place to begin troubleshooting.
- The cabin fuses control all interior features, including the radio, lights, and air conditioning. A blown fuse here is a likely cause if any of these systems suddenly stop working.
- Power distribution fuses ensure electrical systems receive proper voltage. If the battery is draining quickly or some features are not responding, check these fuses as well.
While replacing fuses, be aware of their positioning. If you replace a fuse incorrectly or choose one with an incorrect amperage, you may end up damaging the vehicle’s electrical system. Double-check the fuse ratings and consult the manual for any unusual configurations.
It is also important to test circuits after replacing fuses. Use a multimeter or test light to verify that the circuit is receiving power. If the problem persists, further investigation into the wiring or components may be necessary.
Lastly, if you’re frequently replacing fuses, it might be indicative of an underlying electrical issue. In such cases, it’s recommended to have a professional technician perform a full diagnostic check to identify and fix the root cause of repeated fuse failures.
Locating the Fuse Boxes in Your Vehicle
The primary fuse panel is located under the dashboard, near the driver’s seat. To access it, remove the plastic cover on the side of the dashboard, typically close to the door. This box controls most of the interior systems, including lighting, radio, and climate control.
Engine Compartment Fuse Box

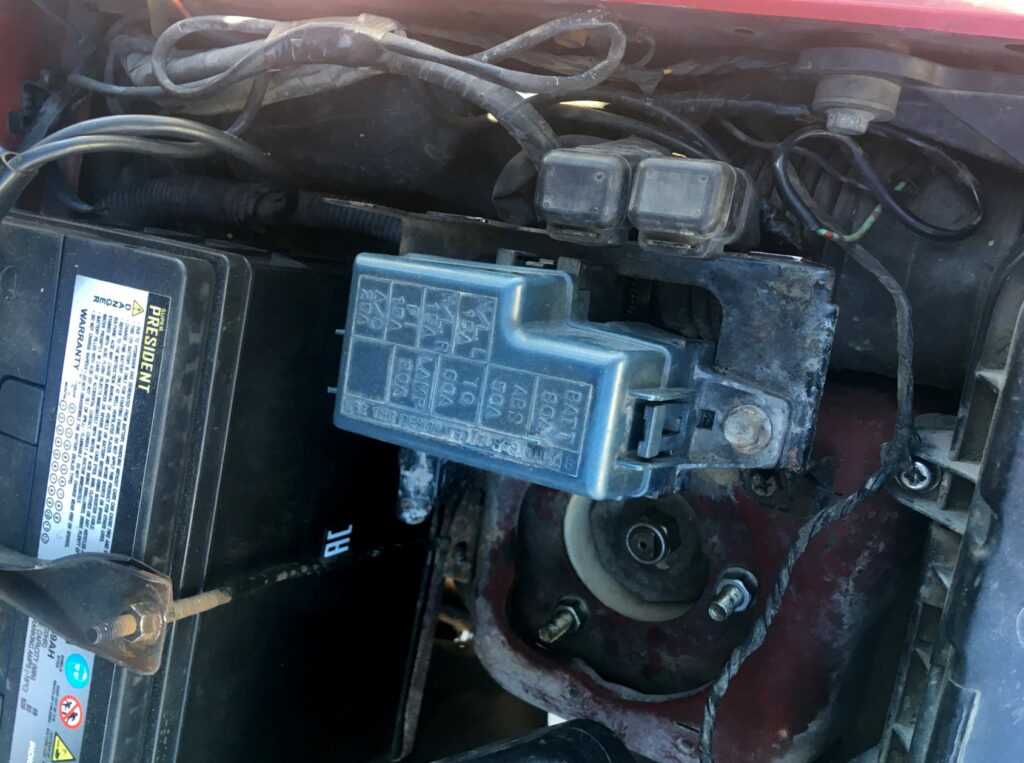

The second fuse box is found in the engine compartment. Open the hood and locate it near the battery or along the firewall. This panel regulates critical systems like the ignition, fuel pump, and engine control unit. It is also where the more high-power circuits are fused.
Both panels will have a cover that lists the functions of each fuse inside. This guide helps you easily identify which fuse corresponds to which system. If you’re troubleshooting, it’s important to refer to this guide before replacing any components.
Passenger Side Fuse Box
A third panel is located on the passenger side, usually under the glove compartment. This box covers additional interior features like the passenger-side windows and auxiliary power outlets. It’s an important area to inspect when there are issues with power in specific sections of the vehicle.
Check the fuse boxes regularly as part of your vehicle maintenance. If any electrical component stops working, inspecting these areas first can save time and ensure the system is functioning as intended.
