Locate the main power distribution unit under the dashboard on the driver’s side to access all connectors quickly. Remove the protective cover by pressing the retaining clips to expose terminals controlling lighting, ignition, and auxiliary systems.
Check the stamped amperage on each connector before handling. Low-current circuits such as interior lights and sensors typically use 5A to 10A units, while high-load systems like the starter, radiator fan, and ABS module rely on 15A to 30A connectors. Correct matching prevents overheating and circuit failure.
Test each terminal with a multimeter for continuity and voltage before replacement. A zero reading indicates a broken link or melted contact, which must be replaced to maintain system integrity and prevent further electrical issues.
Keep a maintenance log noting slot positions, amperages, and replaced connectors. Carry spare units in common ratings–5A, 10A, 15A, 20A, and 30A–to allow rapid repairs during routine checks or unexpected failures, minimizing downtime and protecting sensitive electronics.
Main Electrical Panel Location on the Pickup Truck
Access the primary control unit by opening the driver-side door and removing the lower dashboard trim panel. The unit is mounted just above the pedals, secured with two spring clips for easy removal. This position allows quick inspection of all circuits powering interior systems and essential electronics.
The under-hood secondary panel handles high-current connections for the starter, radiator fan, and ABS system. It is located near the battery on the right-hand side of the engine compartment. The casing is secured with four screws and labeled to indicate slot function and amperage.
Labeling on the covers shows which terminal powers each system. Use these markings to avoid incorrect replacements or overloads. Components such as headlights, wipers, and fuel pumps each have dedicated connectors with clear amperage values.
Visual inspection is recommended during routine maintenance. Look for melted plastic, discoloration, or loose clips that indicate excessive heat or corrosion. Early detection prevents unexpected power loss to critical systems.
| Panel Location | Connected Systems | Typical Amperage |
|---|---|---|
| Driver-side dashboard | Interior lights, horn, infotainment, ignition switches | 5A–20A |
| Engine compartment | Starter, radiator fan, ABS module, high-load relays | 15A–40A |
For troubleshooting, keep a small toolkit including insulated pliers and spare terminals. Inspect each terminal for continuity and ensure all clips are fully seated after maintenance. Proper access and understanding of panel locations significantly reduce electrical issues during operation.
Identifying Connectors and Amperage Ratings
Match each terminal with its marked amperage before handling. Low-current circuits such as interior lights and sensors typically use 5A–10A connectors, while high-load systems like the starter, radiator fan, and ABS rely on 15A–40A units. Correct matching prevents overheating and electrical failures.

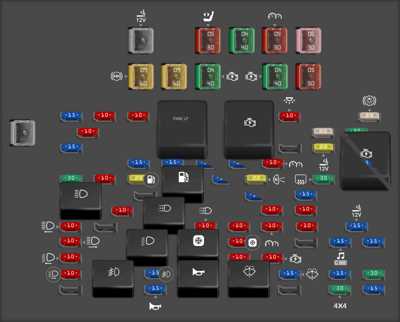

Use color coding to simplify identification. Red indicates 10A, blue 15A, yellow 20A, and clear or green for higher loads. This allows rapid recognition of circuit capacity without removing connectors from the panel.
Check the printed labels on the panel cover for each slot. Each connector corresponds to a specific system such as headlights, wipers, or fuel pump relays. Following these markings ensures accurate replacements and prevents accidental overloads.
Verify connectors with a multimeter to detect partial breaks or corrosion. Measure voltage and continuity across terminals while activating the associated system. Fluctuating readings or zero voltage indicate worn or damaged contacts that require replacement to maintain reliable operation.
Testing and Replacing Terminals Safely
Disconnect the battery before handling any connectors to prevent short circuits or electrical shocks. Always ensure the ignition is off and keys are removed before accessing the terminal panel.
Inspect terminals visually for melted plastic, corrosion, or loose clips. Damaged contacts can cause intermittent power loss or overheating if left unaddressed.
Testing Procedures
Use a digital multimeter to check continuity and voltage across each terminal. Place probes carefully on both ends while activating the corresponding system. A zero reading indicates a broken or worn connector that needs replacement.
Check amperage ratings marked on each connector before testing. Low-current systems typically operate between 5A and 10A, while high-load components range from 15A to 40A. Using incorrect connectors can damage circuits.
Replacement Steps
- Use insulated pliers to remove the faulty terminal carefully.
- Select a replacement connector matching the amperage and color code.
- Insert the new terminal fully into the correct slot until it locks securely.
- Inspect surrounding connectors for signs of wear or heat damage.
After installation, retest each terminal for continuity and voltage. Ensure clips are fully seated to maintain reliable power flow to all systems.
Keep a set of common terminals–5A, 10A, 15A, 20A, and 30A–on hand for quick replacements. Routine inspection and prompt substitution of worn connectors prevent larger electrical issues and maintain system stability.
Maintain a small toolkit with insulated pliers, screwdrivers, and a multimeter in the vehicle. Regular testing and safe replacement practices reduce downtime and preserve the integrity of critical electrical systems.
