Locate the exact positioning chart for the trunk-mounted electrical block before attempting any inspection, as incorrect assumptions about circuit allocation often lead to blown links or inactive subsystems. The module placed near the cargo area on this model controls lighting, central locking, and several comfort features, so identifying each slot precisely reduces troubleshooting time and prevents unnecessary disassembly.
Pay attention to numbering sequences and amperage ratings: slots are not arranged randomly, and each connector corresponds to a defined load capacity, typically ranging from 5A to 40A. Misplacing even a single protective element may disrupt CAN communication or disable rear lighting clusters. Always compare the physical layout with a verified chart that reflects your specific production year, as minor revisions were introduced across different batches.
Accessing the unit requires removal of the side trim panel in the cargo compartment, after which the block becomes visible along with relays and connectors. Inspect for signs of oxidation or heat damage around terminals; discoloration often indicates overload conditions or poor contact. Cleaning contacts with appropriate electrical solutions and ensuring tight seating of each component restores stable operation without replacing the entire assembly.
For precise diagnostics, correlate each slot with its assigned circuit: for example, parking sensors, tail lamps, and trunk release mechanisms are typically routed through separate channels within the same module. This segmentation allows targeted checks using a multimeter, avoiding blind replacements and reducing repair costs.
Rear Power Distribution Module Layout: Practical Guide for Identification and Troubleshooting
Locate the power distribution block in the luggage compartment on the right side behind the trim panel and verify each slot using the printed numbering on the plastic housing; compare it with the vehicle’s wiring chart to match circuits such as tail lamps, fuel pump relay control, and trunk release actuator.
Use a multimeter to check voltage at both terminals of each protective element; a reading of 12V on one side and 0V on the other indicates a blown link, while identical voltage on both sides confirms continuity. Pay attention to positions typically assigned to lighting circuits (for example slots 7–12) and comfort systems (slots 20–28), as these are frequent failure points when moisture enters the compartment.
Common fault tracing: if rear lighting fails simultaneously, inspect shared supply lines rather than individual bulbs; corrosion on the module pins often interrupts multiple outputs. Remove the connector block, inspect for green or white residue, and clean contacts with electrical cleaner. If intermittent behavior appears during driving, secure the harness bundle to eliminate micro-movements that break contact under vibration.
Pin and Slot Identification Tips
Each cavity is marked with a small embossed number; use a flashlight at an angle to read worn markings. Cross-reference with the factory chart to identify circuits like parking lights, brake signal, and central locking pump. For accuracy, label tested slots with removable tape to avoid repeated probing and reduce the risk of damaging terminals.
Preventive Measures and Repair Notes
Seal integrity matters: check trunk weatherstrips and ventilation flaps to stop water ingress. Replace oxidized terminals rather than reusing them, as resistance increases heat load and leads to repeated failures. When installing a replacement module, match part numbers exactly and transfer coding if required; mismatched units may cause communication errors with the body control network.
How to Locate and Access the Rear Power Distribution Box in Mercedes-Benz E-Class W211 Step by Step

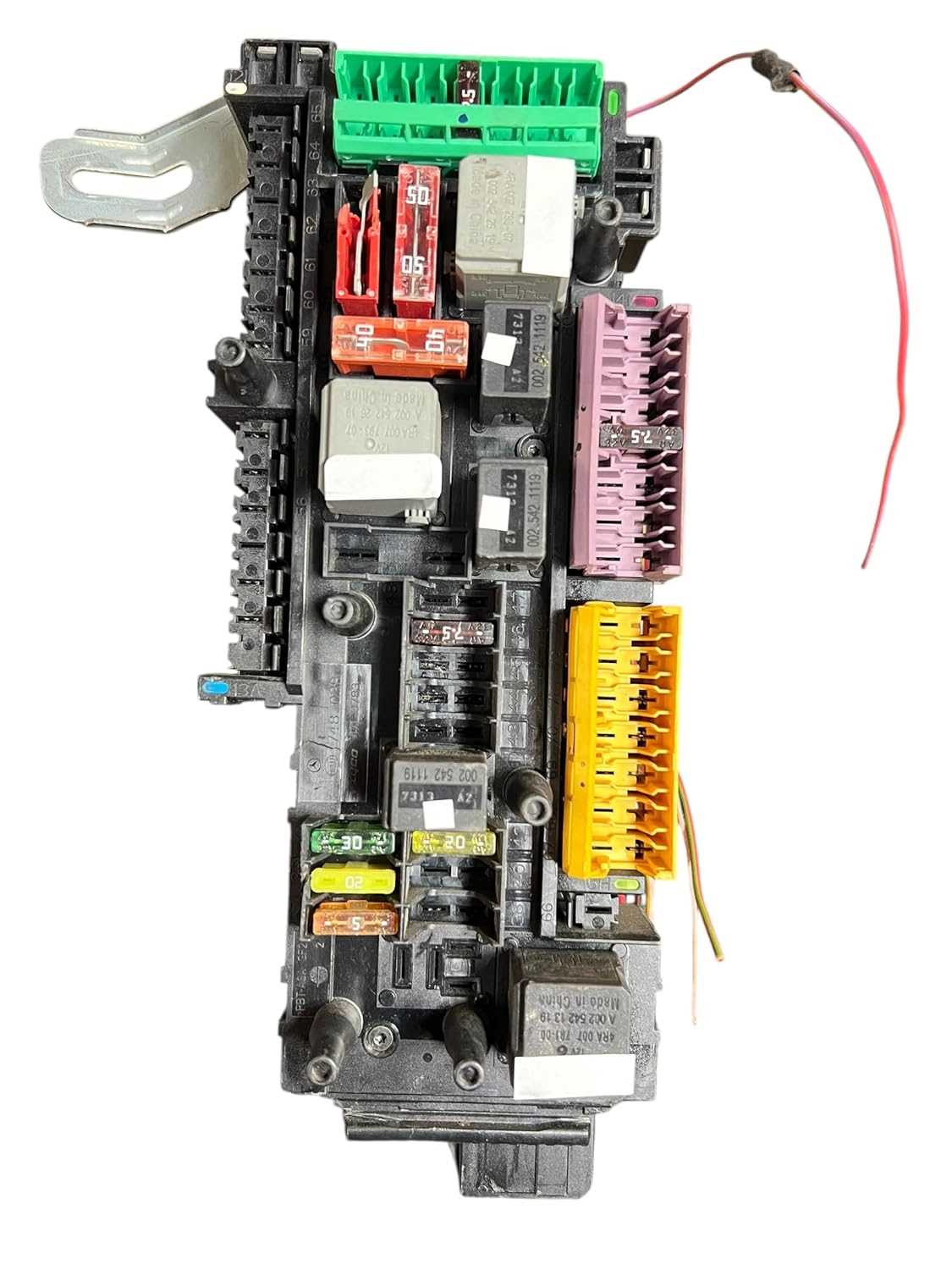

Open the trunk and move the floor panel upward to expose the battery compartment; the electrical distribution unit is positioned on the right-hand side behind a protective trim cover. Remove the side lining by releasing the plastic clips with a flat tool, taking care not to break the retaining tabs. Once the panel is off, identify the black housing with multiple colored inserts–this is the target module. Disconnect the negative terminal of the battery before touching any components to prevent short circuits. Release the locking tabs on the housing cover and lift it straight up to reveal the internal layout.
For full access, unscrew the mounting bolts securing the module bracket using a Torx driver (commonly T20 or T25), then gently tilt the assembly outward without straining the wiring harnesses. Each circuit slot is labeled on the inner side of the cover, so keep it nearby for reference during inspection or replacement. Use needle-nose pliers to remove elements if needed, matching amperage ratings precisely to avoid electrical faults. After servicing, reseat the cover firmly until all clips engage, reinstall the trim panel, and restore the trunk floor before reconnecting the battery terminal.
