Locate the main power distribution units in the engine bay, dashboard side panel, and trunk, then verify each circuit using the printed layout before replacing any burned insert. Always install the same amperage rating marked on the component to avoid wiring damage or system malfunction.
This model uses multiple distribution points to separate electrical loads across lighting, control modules, climate systems, and accessories. Each slot corresponds to a numbered circuit, typically ranging from 5A to 40A depending on current demand and component type.
The engine compartment unit handles high-load systems such as cooling fans and ABS, while interior units manage electronics like instrument cluster, audio system, and seat controls. Identifying the correct layout allows fast isolation of faults such as power loss or non-working features.
Check continuity with a multimeter instead of relying only on visual inspection, as internal breaks are often not visible. Loose terminals, corrosion, or heat discoloration near contacts are common causes of intermittent electrical issues.
W210 Fuse Box Diagram and Circuit Reference

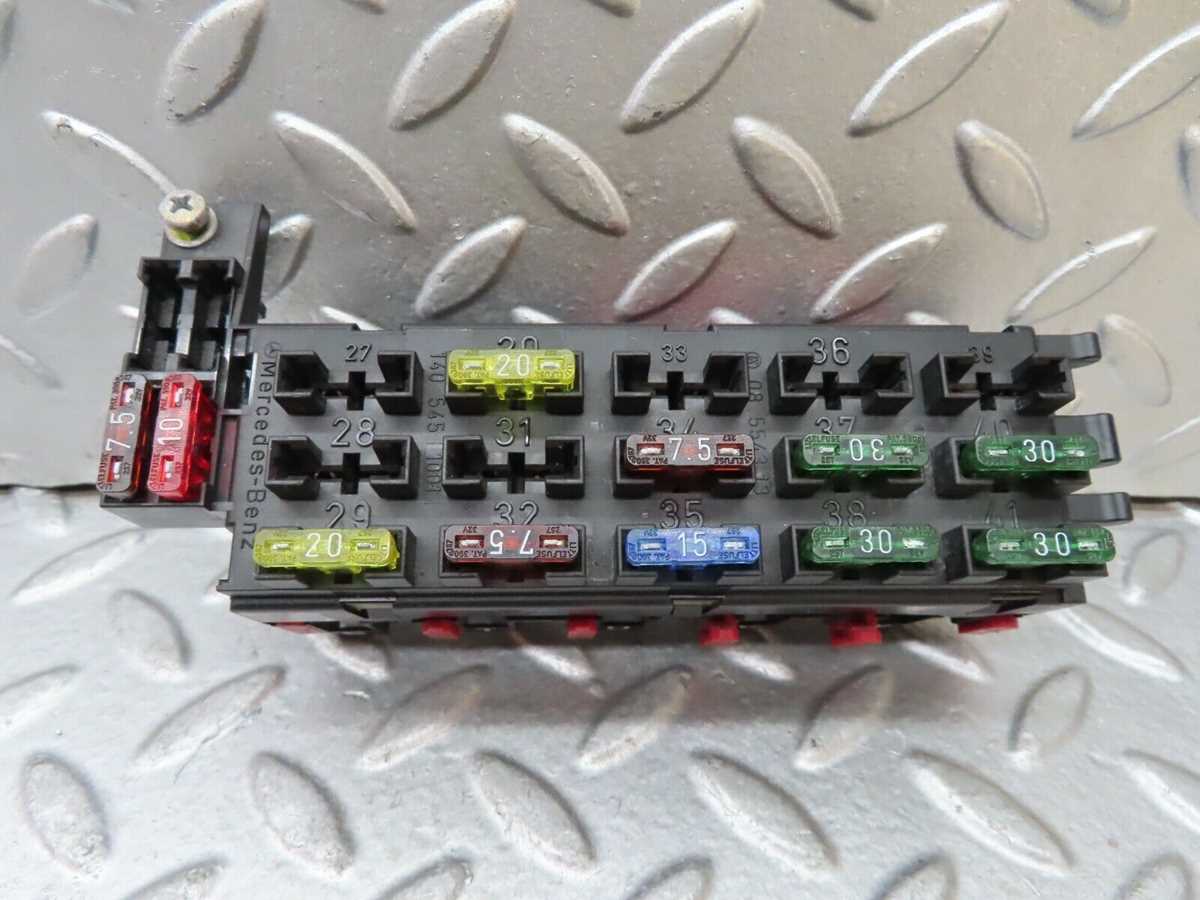

Match each numbered slot across the engine bay, dashboard side, and trunk distribution units with its assigned circuit using the printed layout, then confirm amperage before installing a replacement insert. Typical values range from 5A for control modules and interior lighting up to 40A for seat motors, blower systems, and power accessories. Incorrect ratings can lead to wiring damage or unstable operation.
Use this verification sequence:
- Identify the correct distribution unit by system location
- Read slot number from layout chart
- Check amperage printed on the insert
- Test continuity with a multimeter
- Confirm voltage on both terminals under load
- Inspect contacts for corrosion or heat marks
High-current circuits such as cooling fans and ABS are located in the engine compartment unit, while interior electronics are handled by dashboard and trunk sections, so check all locations when tracing electrical faults.
Exact Fuse Box Locations in W210 Cabin Engine Bay and Trunk
Check the engine compartment first by opening the hood and locating the main power distribution unit on the right side near the rear of the engine bay close to the firewall.
Release the locking clips and lift the cover to access high-current circuits such as cooling fans, ABS, and charging system components. The layout chart is printed inside the cover for quick reference.

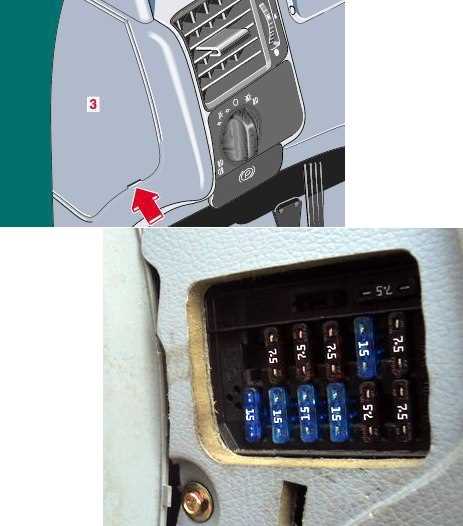

Inside the cabin, locate the side dashboard distribution unit by opening the driver door and removing the side trim panel at the end of the dashboard. This section contains circuits for interior electronics, lighting, and control modules.
A third distribution point is located in the trunk on the right side behind a removable panel. This area supports rear lighting, central locking, and additional electronic systems.
Access each unit carefully, ensuring covers are fully reinstalled after inspection to protect connections from moisture and maintain stable electrical operation.
