Check the panel cover first and match each slot number with the printed layout before removing any protective link. This vehicle uses a centralized electrical panel under the dashboard, with additional high-current links located in the engine compartment.
The interior panel contains blade-style elements rated 5A, 10A, 15A, and 20A, assigned to lighting, wipers, heater fan, and audio system. Higher-load circuits such as cooling fan and ignition supply are protected by larger links near the battery.
Use a multimeter set to continuity mode to verify each link instead of relying on visual inspection. Hairline breaks inside the metal strip may not be visible, leading to incorrect assumptions about circuit condition.
Relays positioned near the panel control switching for starter motor, fuel pump, and lighting circuits. Incorrect placement or worn contacts can cause intermittent operation, especially in older wiring systems where connectors may have oxidation.
VW Rabbit fuse box diagram with full layout and relay details
Match each slot number on the panel chart with its assigned circuit before removing any protective insert, since incorrect removal can disable multiple systems such as lighting or ignition.
The interior electrical panel uses blade-style links rated 5A to 20A, each tied to specific functions like headlights, wipers, heater fan, and audio system. Higher-load circuits are routed through larger protection elements located near the engine compartment, often handling cooling fan and charging system lines.
Relays positioned above or рядом with the panel control switching for starter motor, fuel pump, and exterior lighting. A clicking relay does not confirm proper operation; check voltage at both input and output terminals to confirm current flow.
Inspect contact points for discoloration or heat damage, since older wiring setups are prone to oxidation. Clean terminals carefully and ensure tight fit to avoid intermittent power loss across connected circuits.

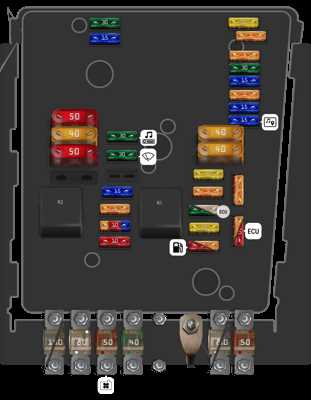

Exact fuse box location in VW Rabbit under dash and engine compartment
Look under the driver side dashboard above the pedals to find the main electrical panel mounted on a bracket, partially hidden behind trim and wiring harnesses.
Use a flashlight to identify slot numbers, since the panel sits deep inside and markings can be hard to read without direct light.
The cover is either clipped or held by simple tabs; pull it straight out to avoid cracking the plastic edges.
Inside the engine compartment, check near the battery and along the firewall for additional high-current protection elements and relay mounts connected to ignition and cooling systems.
These components are not always grouped in a single enclosure, so inspect wiring paths carefully rather than expecting a central unit.
- Driver side dash area for main panel
- Above footwell near steering column
- Battery area for high-load protection links
- Firewall section for relay mounting points
Some older wiring setups include inline protective links wrapped inside plastic sleeves, requiring careful opening to access without damaging insulation.
After inspection, secure all covers and routing clips, since loose panels can lead to vibration, poor contact, and gradual wear of electrical connections.
