Locate the primary power control unit behind the driver’s side dashboard trim to quickly identify circuit responsibilities. Each slot is marked with a numeric code that corresponds to specific lighting, climate, and infotainment modules. Knowing these codes allows precise troubleshooting without disassembling unrelated components.
Under the hood, the secondary distribution hub manages high-current circuits like the radiator fan, ABS, and starter relay. Labeling on the cover indicates amperage ratings and protective links, which helps prevent accidental overloads when replacing connectors or testing continuity.
For cabin diagnostics, the interior access panel near the footwell provides direct observation of low-voltage systems. Referencing the engraved map on the panel cover assists in locating auxiliary relays for power seats, windows, and adaptive lighting. Correctly identifying these terminals reduces risk of short circuits during inspection.
For repair or upgrades, always cross-check the printed allocation guide in the owner’s manual with the installed control unit. Changes in model years may shift relay positions or fuse assignments, so visual confirmation before applying power is critical for maintaining system integrity.
VW GTI MK7 Fuse Box Diagram

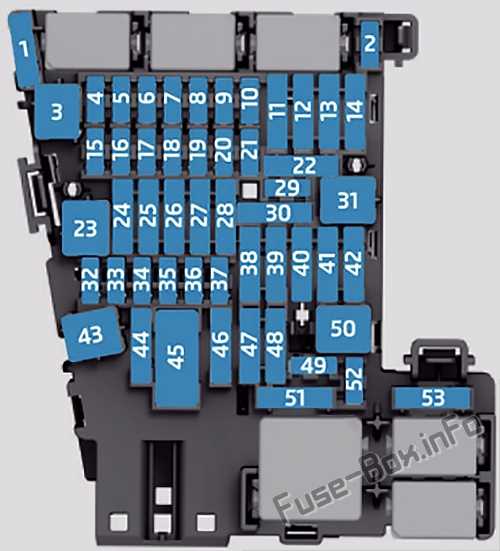

Locate the primary power distribution unit under the dashboard on the driver’s side; each slot is marked with amperage ratings and component functions.
Front lighting circuits rely on the upper row of connectors. Slots labeled 10A and 15A typically control headlights, turn signals, and parking lamps. Replace a blown element with the exact amp rating to prevent electrical shorts.
The central console electronics, including infotainment and climate control, draw power from mid-level slots. These positions usually show 20A, 25A, or 30A; swapping with mismatched ratings can cause permanent damage to control modules.

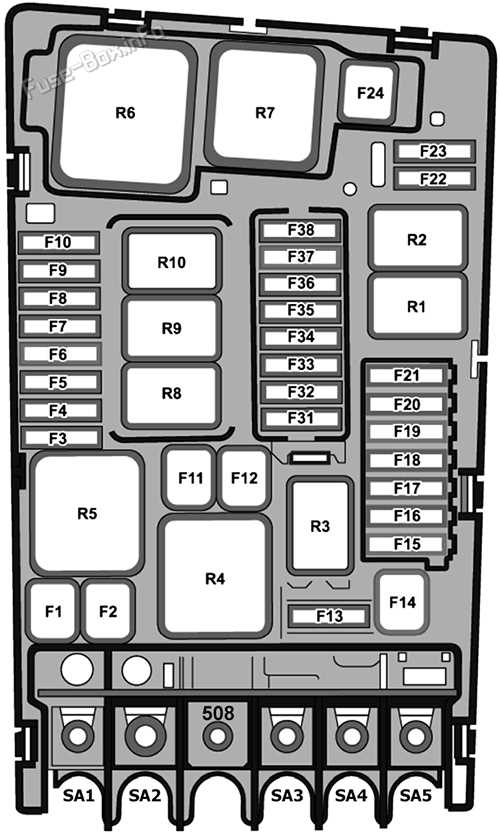

Under-hood distribution points handle high-load devices such as the cooling fan and ABS unit. They are often housed in a separate housing near the battery, marked with 40A or higher, and require careful inspection after jump-starts or battery replacement.
For rear cabin connections, use the side panel near the tailgate. Components like interior lighting, rear wipers, and trailer connectors are secured in lower amperage slots, typically 7.5A or 10A. Verify each label before pulling any holder.
Always consult the manufacturer’s service manual for exact numbering; slight differences occur between early and later production models, affecting both slot position and rating specification.
Testing each terminal with a multimeter helps identify weak or intermittent circuits. Ensure the ignition is off before probing, and note any corrosion or discoloration, which often indicates overheating or partial contact failure.
Locating the Electrical Control Panels in VW GTI MK7
The primary electrical panel sits on the driver’s side, just beneath the steering column. Remove the lower dash trim by gently pulling the panel outward; you will see a rectangular module secured with two clips. Accessing this section allows inspection of circuits related to lighting, dashboard electronics, and ignition control.
A secondary module is positioned in the engine compartment near the battery. It is shielded by a black plastic cover with a small tab for easy release. This cluster handles components such as the radiator fan, ABS system, and main power relays. Lift the cover carefully to avoid damaging the retaining clips.
Additional Locations
- Passenger-side footwell behind the glove compartment: tilt the glove box down to reveal a compact panel for interior sensors and auxiliary sockets.
- Rear cargo area on the left side trim: a slim vertical compartment stores circuits for rear lighting and trailer connections.
- Under the rear seat bench: lift the seat cushion to access low-current modules, typically associated with seat electronics and infotainment.
For safety, always disconnect the main battery before interacting with any panel. Use a flashlight to identify color-coded tabs and fuse identifiers etched on the cover. This avoids misplacing components or causing short circuits.
Maintain a record of each module’s layout. Photographs or sketches of tab positions and numbers assist in quick replacements or troubleshooting. Misplaced or incorrectly installed units can trigger warning lights or disable subsystems unexpectedly.
Check for moisture or corrosion around connectors. Engine bay modules are prone to condensation buildup. Use a soft cloth or contact cleaner to keep terminals clean. Regular inspection extends the longevity of relays and circuitry.
