Check the side of the dashboard first by opening the driver door and removing the small plastic cover to access the main cabin power distribution panel.
This panel contains rows of blade-type elements with clearly marked amperage ratings, typically ranging from 5A to 30A, each assigned to systems like lighting, infotainment, and control modules.
Use the chart printed on the cover to match each slot with its function before removing anything, as incorrect replacement can lead to wiring damage or malfunction of multiple systems.
For higher load circuits, inspect the engine bay unit located near the battery, where larger cartridge-style components and relays manage systems such as cooling fans and ignition supply.
Keep a small puller tool and spare fuses in the vehicle to handle sudden failures, and always verify the metal strip inside a fuse before replacing it to confirm a break.

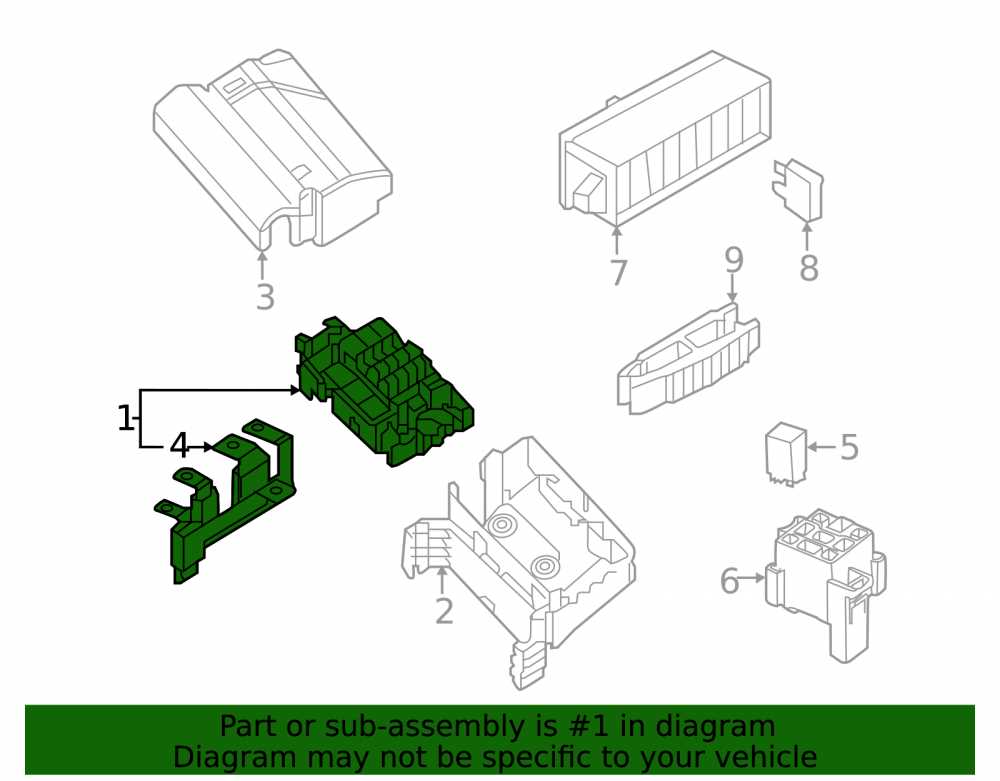

VW Beetle 2012 fuse box diagram with panel locations and details
Open the driver door and remove the side dashboard cover to access the main cabin electrical panel where most low- and mid-current circuits are grouped.
This unit contains tightly arranged blade-type components with printed amperage values and position numbers; use the legend on the cover to match each slot with systems like lighting, radio, and control modules.
- 5A–10A: sensors, control units, small electronics
- 15A–20A: infotainment, power outlets, lighting groups
- 25A–30A: motors and high-load accessories
Lift the hood to locate the secondary power distribution center near the battery, where larger cartridge-style elements and relays manage ignition, cooling fans, and charging circuits; release the cover clips and inspect labels underneath for accurate identification.
Where to find fuse panels in dashboard and engine bay
Remove the side cover on the driver-side dashboard edge to access the main cabin electrical panel positioned behind the trim next to the steering column.
Use the small molded notch to pull the cover outward; no screws are required, and the panel appears immediately with rows of blade-style elements and numbered slots.
Dashboard access point
This unit is mounted vertically inside the dash frame, allowing quick reach from the door opening; the reverse side of the cover shows circuit labels that correspond to each numbered position.

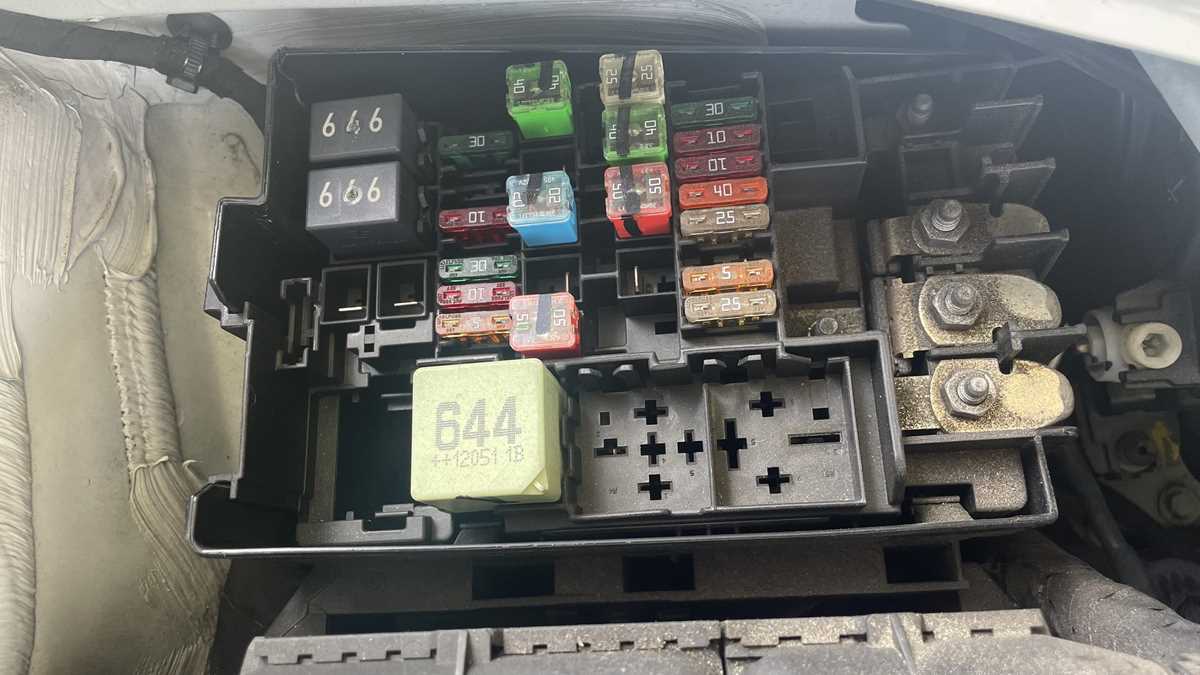

Open the hood and locate the secondary power distribution center near the battery, enclosed in a black plastic housing with locking tabs on both sides.
Engine bay access point

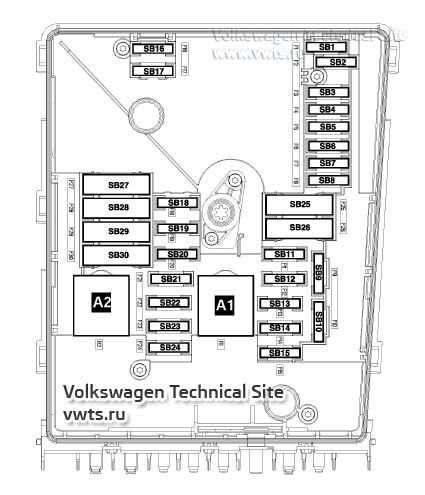

Press the retaining clips and lift the lid to reveal high-current components and relays arranged in grouped sections, each marked underneath the cover for systems such as cooling fans, ignition supply, and charging circuits.
Inspect both locations during troubleshooting, as cabin electronics and engine-related systems are separated between these two panels.
