Locate the main power distribution panel behind the driver’s side dashboard and verify each relay and connector by labeling them according to amperage ratings and circuit function.
Check the engine compartment panel for grouped modules controlling lighting, ignition, and auxiliary systems. Identify the largest connectors first, as these carry primary voltage feeds to multiple circuits.
Inspect all smaller connectors for corrosion or loose pins, particularly in high-vibration zones near the engine mounts. Ensure that each circuit path corresponds to the printed identifiers on the panel cover.
Mark each relay location clearly using colored tags or numbering to avoid misplacement during maintenance. Note that relays for the starter motor and fuel pumps are typically clustered together for easier access.

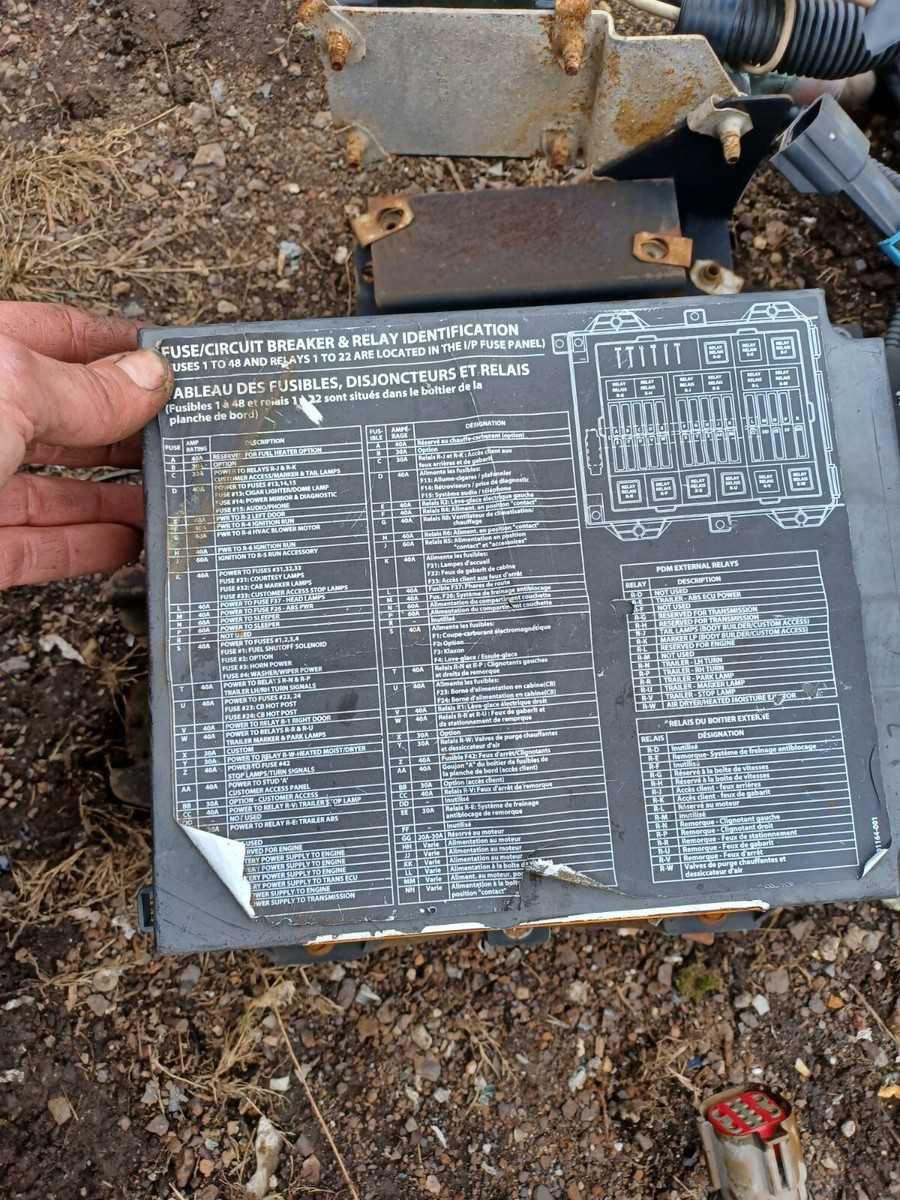

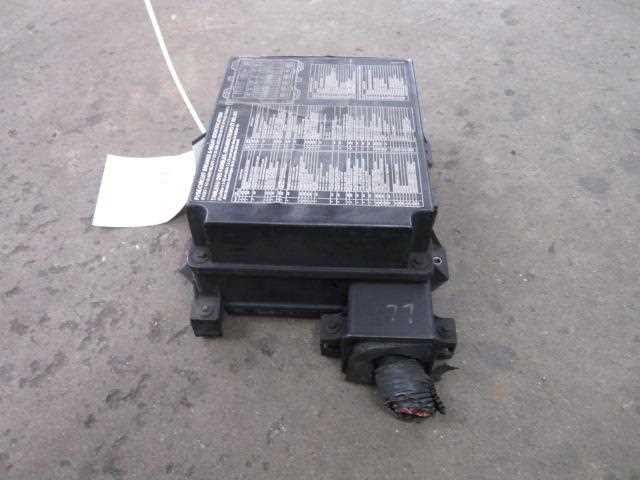

Sterling Truck Electrical Panel Guide
Identify the primary distribution panel located behind the driver’s side dashboard and ensure all main power connectors are secured. Check that relays for headlights, horn, and ignition circuits are properly seated.
Inspect auxiliary modules positioned near the firewall for HVAC, lighting, and instrument clusters. Label each connector with corresponding amperage ratings to prevent confusion during maintenance or replacements.
Examine smaller connectors near the center console and under-dash areas for corrosion or loose pins. These connections typically control dashboard indicators, audio systems, and climate controls, which are sensitive to voltage drops.
Verify grounding points on both the chassis and engine compartments. A poor ground can cause intermittent faults in starter circuits and fuel pumps, and securing these points can prevent electrical interruptions.
Maintain a record of relay and module positions using a numbered or color-coded system. This practice simplifies troubleshooting and ensures that any removed components are reinstalled correctly, minimizing downtime during repairs.
Locate Engine Compartment Modules and Connectors
Start with the main power distribution center near the battery. Check that all high-current terminals are tightly secured and free of corrosion, as these supply energy to critical engine systems.
Identify the relay assemblies on the firewall. Label each relay according to function–starter, fuel pump, cooling fan, and ignition circuits–to simplify maintenance and replacement.
Inspect harness connectors along the intake manifold and cylinder head. Ensure each connector is fully seated, with locking tabs engaged to prevent intermittent electrical faults that can affect engine performance.
Verify sensor connections including mass airflow, throttle position, and coolant temperature sensors. Loose or oxidized terminals can trigger warning lights and reduce engine efficiency.
Locate the electronic control module (ECM) near the driver side firewall and confirm the main connector pins are straight and clean. Damaged pins may lead to miscommunication between engine subsystems.
Check grounding points attached to the engine block and chassis. Tighten bolts and clean contact surfaces to prevent voltage drops that could impact fuel injection and ignition timing.
Trace secondary connectors for auxiliary systems such as ABS, traction control, and transmission control. Make a note of their positions using a numbered or color-coded system for easy reference during troubleshooting.
Finally, maintain a visual map of all modules and connectors. Include amperage ratings, relay locations, and sensor wiring paths to streamline future repairs and reduce the risk of miswiring components.
