Use the correct circuit map that matches your exact production year and engine type, since panel assignments differ between early 1994–1998 versions and later 1999–2004 updates. For example, the cabin-mounted relay panel on 1994–1995 cars includes a dedicated slot for the fuel pump relay that was relocated in 1996+, while 1999–2004 models integrate additional protection for PCM and OBD systems. Mismatched references lead to incorrect troubleshooting and wasted time.
Identify both interior and engine-bay distribution units before checking any component. The interior panel (driver-side kick area) typically contains low-amperage circuits for lighting, radio, and diagnostic connectors, with ratings ranging from 5A to 25A. The under-hood unit handles higher loads such as cooling fan (30A–60A), ABS module, and ignition feed. Knowing which section supplies the malfunctioning system narrows down the search immediately.
Pay attention to amperage values and color coding rather than relying only on slot numbers. For instance, a 20A yellow insert often protects power outlets and lighter circuits, while a 15A blue insert is commonly tied to control modules or sensor groups. If a replacement element repeatedly fails, the issue is likely a short to ground or an overloaded accessory, not the panel itself.
Use pin-level references when diagnosing relays. On these Mustangs, standard ISO micro relays follow a consistent terminal layout: pins 85 and 86 for coil activation, 30 for input power, and 87 for output. Verifying voltage at these points with a multimeter gives more reliable results than swapping parts blindly.
Always cross-check wiring routes for modifications, especially on vehicles with aftermarket audio systems or alarm units. Added wiring often taps into ignition or constant-power lines, altering factory load distribution and causing unexpected shutdowns in unrelated systems.
SN95 Fuse Box Diagram: Practical Reference and Troubleshooting Guide
Check the owner’s manual layout first and match each circuit slot with its amperage rating before replacing any blown element; installing a higher-rated insert can damage wiring or control modules.

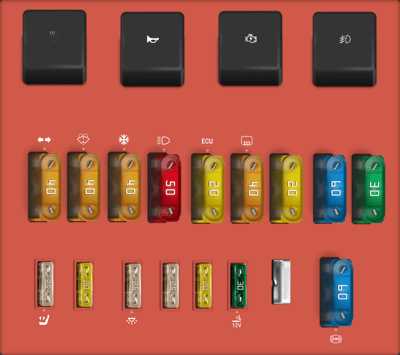

The power distribution panel in this Mustang generation is split between the engine bay and the cabin. Under the hood, high-current circuits handle components like the cooling fan, ABS pump, and ignition system, typically using larger 30–60A links. Inside the cabin, lower-rated slots (5–25A) control lighting, radio, dashboard cluster, and accessory ports. Always verify labeling on the cover lid, as production years between 1994 and 2004 may differ slightly in numbering and function assignment.
Common failure points include the radio circuit (often 15A), cigarette lighter/power outlet (20A), and interior lighting (10A). If multiple interior features stop working simultaneously, inspect shared ground points rather than assuming multiple blown inserts. For engine-related issues such as no-start conditions, check the relay and corresponding high-current link for the fuel pump and PCM power supply.
When diagnosing electrical faults, use a multimeter rather than visual inspection alone. A component may appear intact but fail under load. Measure continuity across the terminals and confirm voltage supply at both ends of the slot with the ignition in the correct position. Voltage on one side only indicates a break, while no voltage at all points to upstream wiring or relay issues.
Slot Identification and Load Mapping
Each slot is numbered sequentially, but not always logically grouped by system. For example, lighting circuits may be split between several positions: headlamps in the engine compartment panel, while interior illumination remains in the cabin section. Keep a printed reference sheet in the glove compartment with handwritten notes if modifications have been made, such as aftermarket audio or alarm systems.
Relays adjacent to the panel often control high-draw components. A faulty relay can mimic a blown insert. Swap with an identical unit from a non-critical system (like horn or fog lamps) to quickly isolate the issue without specialized tools.
Troubleshooting Workflow
Disconnect the battery before pulling any element tied to engine control or airbag circuits. Inspect for heat damage or corrosion on the terminals; discoloration indicates resistance buildup. Clean contacts with electrical cleaner and apply dielectric grease sparingly. If repeated failures occur in the same slot, trace the circuit for short-to-ground conditions, especially in areas where wiring passes through metal bulkheads or near moving parts.
