To access the primary electrical panel in your vehicle, start by locating it behind the driver’s side dashboard. This area houses the critical circuits responsible for various systems, including interior lights, power windows, and the climate control system.
Once located, check the labeling near the panel to identify each individual fuse. A thorough understanding of the fuse placement will help you quickly diagnose any electrical issues. Refer to the manufacturer’s guide to see the exact fuse types and corresponding components in your model.
When replacing a damaged fuse, always ensure the vehicle is turned off and the key is removed. This reduces the risk of accidental electrical shorts. Use the appropriate amperage fuse to prevent further issues, and regularly check the panel for any wear or corrosion that could affect performance.
Fuse Panel Maintenance and Replacement Guide
Start by locating the primary electrical panel beneath the driver’s side dash. It controls essential functions like the lights, wipers, and interior features. You’ll need to remove the cover to access the components inside, and always ensure the vehicle is powered off before proceeding.
Inspect the fuses for any signs of wear, damage, or corrosion. A blown fuse will show discoloration or a broken metal strip inside. If you’re unsure, use a multimeter to test each individual fuse’s continuity. This ensures you identify faulty connections quickly and prevent further damage to the system.
Make sure to replace any damaged fuses with the correct amperage. Using a fuse with the wrong amperage can cause electrical problems or even fires. Check the manual or the fuse panel diagram for the proper fuse rating for each circuit.
Aside from regular fuse checks, consider cleaning the contacts periodically. Dust and corrosion can disrupt the electrical flow, causing intermittent power loss or malfunctioning systems. A clean cloth or electrical contact cleaner can remove these impurities.
Don’t ignore any blown fuses. They often indicate underlying issues with the electrical system, such as short circuits or component malfunctions. If you replace a fuse and it blows again, inspect the wiring and components connected to that specific circuit.
Common Fuse Locations and Functions
The fuse panel beneath the dash typically manages key components such as the radio, interior lighting, windows, and climate controls. Be aware of any fuses associated with high-power systems, like the air conditioning or power seats, as these can sometimes require specialized fuses.

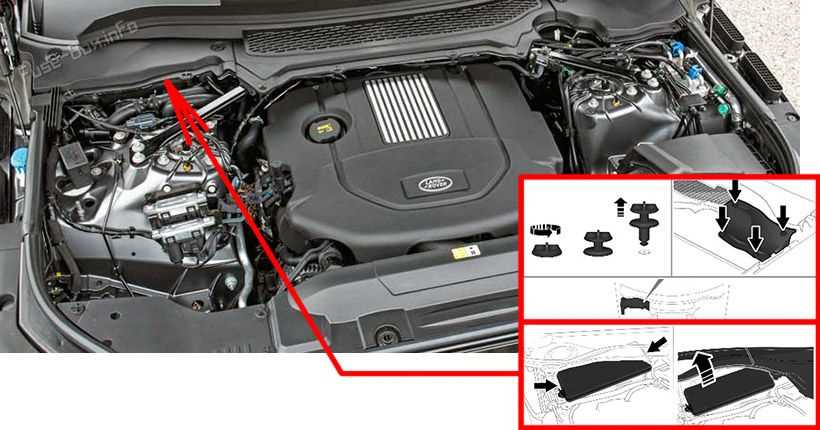

If you experience consistent electrical problems, it may be time to inspect the fuses and circuits in the engine compartment as well. These can control more substantial components like the alternator and battery, which also require proper fuse protection to avoid significant damage.
Locating the Main Electrical Panel in Your Vehicle
Start by checking beneath the driver’s side dashboard. The primary electrical panel is typically located on the left side near the steering column. To access it, remove the lower panel beneath the dash, which can usually be done by unscrewing a few fasteners or simply pulling it off if it’s clipped in place.
Once you’ve removed the cover, you’ll be able to see the control unit with rows of relays and connectors. This section is responsible for managing multiple electrical systems in the vehicle, such as the interior lights, HVAC, and radio.
If you’re having trouble locating it, check your vehicle’s manual for detailed instructions. The location of the electrical panel can vary based on the model year and trim level, but it’s commonly found in this area for most standard configurations.
In some vehicles, a second fuse panel may be located under the hood or in the cargo area, depending on the systems they control. If your vehicle is equipped with advanced electrical systems or options, there might be additional panels protecting specific components like the battery or engine management system.
After locating the main electrical panel, make sure the vehicle is turned off and the key is removed from the ignition before you begin any inspection or maintenance. This will reduce the risk of electric shock and ensure the safety of your vehicle’s wiring.
What to Look for Inside the Electrical Panel

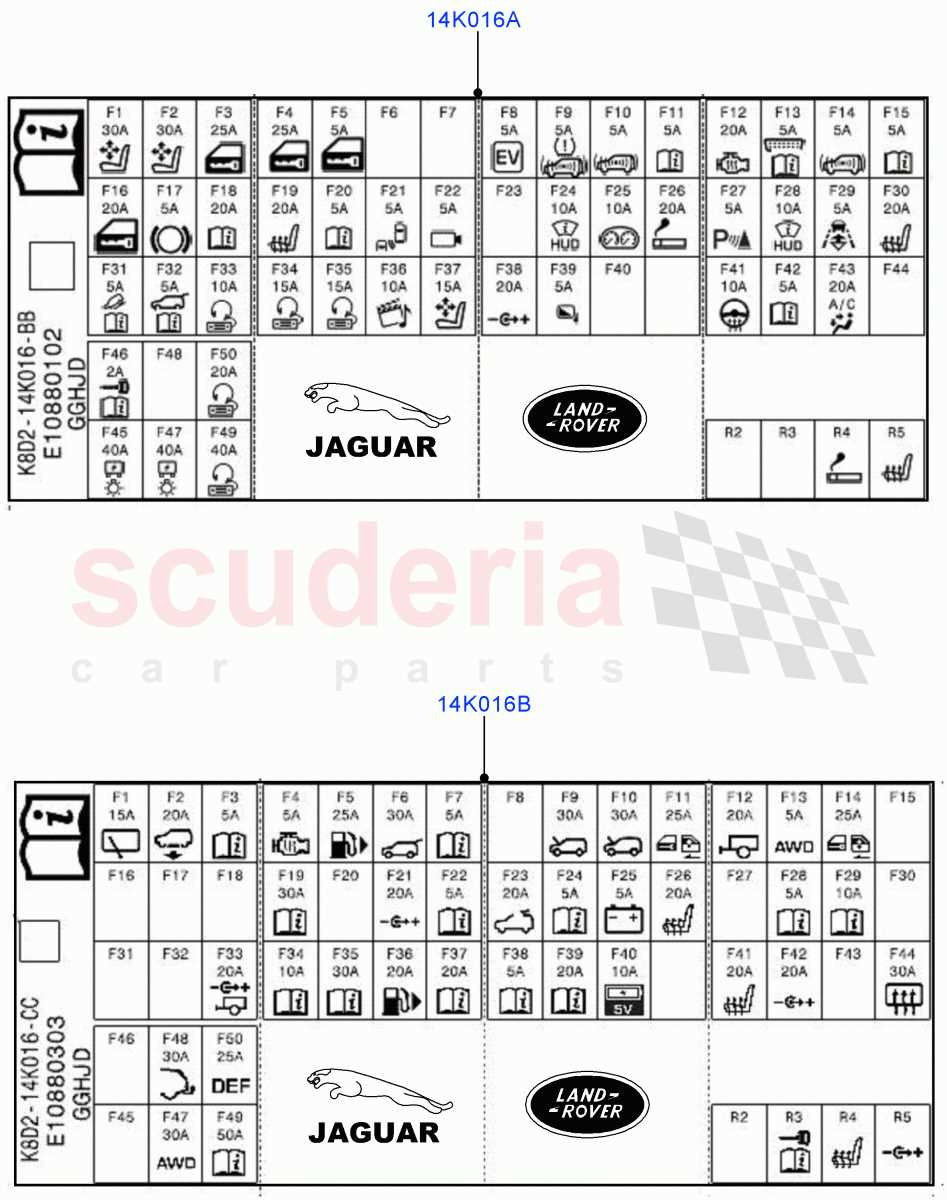

Inside the panel, you will see a variety of fuses and relays. Each component controls specific functions within your vehicle, such as power windows, wipers, and climate control. It’s important to refer to the vehicle’s manual or a detailed diagram to identify which fuse controls each system.
In case of a malfunction, always check if the corresponding fuse is intact. If a fuse has blown, it is crucial to replace it with one of the same amperage to prevent potential electrical issues or damage to other components.
If you notice any corrosion or signs of damage on the fuse panel or its connectors, clean them carefully with electrical contact cleaner and ensure a secure connection. This will help maintain the proper functioning of all electrical systems.
