Locate the main power distribution unit under the hood near the battery and verify each slot using the printed legend on the cover before removing any component; match amperage ratings such as 5A, 10A, 15A, 20A, and 40A to avoid circuit overload or damage.
Inside the cabin, check the secondary panel positioned behind the dashboard trim on the driver side, where circuits for lighting, infotainment, and climate control are grouped; use a test light or multimeter to confirm continuity instead of visual inspection alone, as some links fail without visible signs.
Focus on relay positions in the engine compartment block for systems like the starter motor, cooling fan, and fuel delivery; ensure identical pin configuration and current rating during replacement, since mismatched components can lead to intermittent faults or complete system failure.
Ram ProMaster 2500 fuse box diagram
Check the cover label on each power distribution panel and align slot numbers with circuit functions before pulling any link; common assignments include low-amperage positions for control modules and higher ratings like 30A–60A for systems such as cooling fans and power accessories.
Use the layout chart to trace circuits for headlights, wipers, and cabin electronics by following numbered positions that correspond to specific wiring paths; verify each connection with a multimeter to confirm voltage presence rather than relying on visual inspection, especially for hairline breaks that are not visible.
Inspect relay placement within the same panel for components like ignition, fuel delivery, and HVAC operation, ensuring replacements match both current rating and pin layout to maintain stable switching behavior and prevent intermittent electrical faults.
Exact locations of interior and engine bay fuse panels in Ram ProMaster 2500

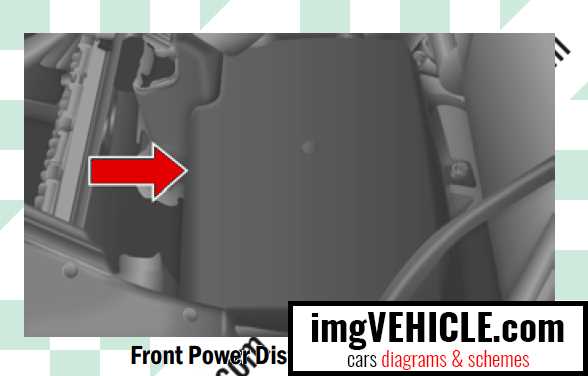

Open the hood and locate the primary power distribution unit directly beside the battery on the driver side; remove the plastic cover by releasing side clips to access high-current links and relay modules.
- Position: left side of engine compartment near battery tray
- Access: press retaining tabs and lift protective cover
- Contents: high-amperage links, relays for cooling fan, starter, and power supply circuits

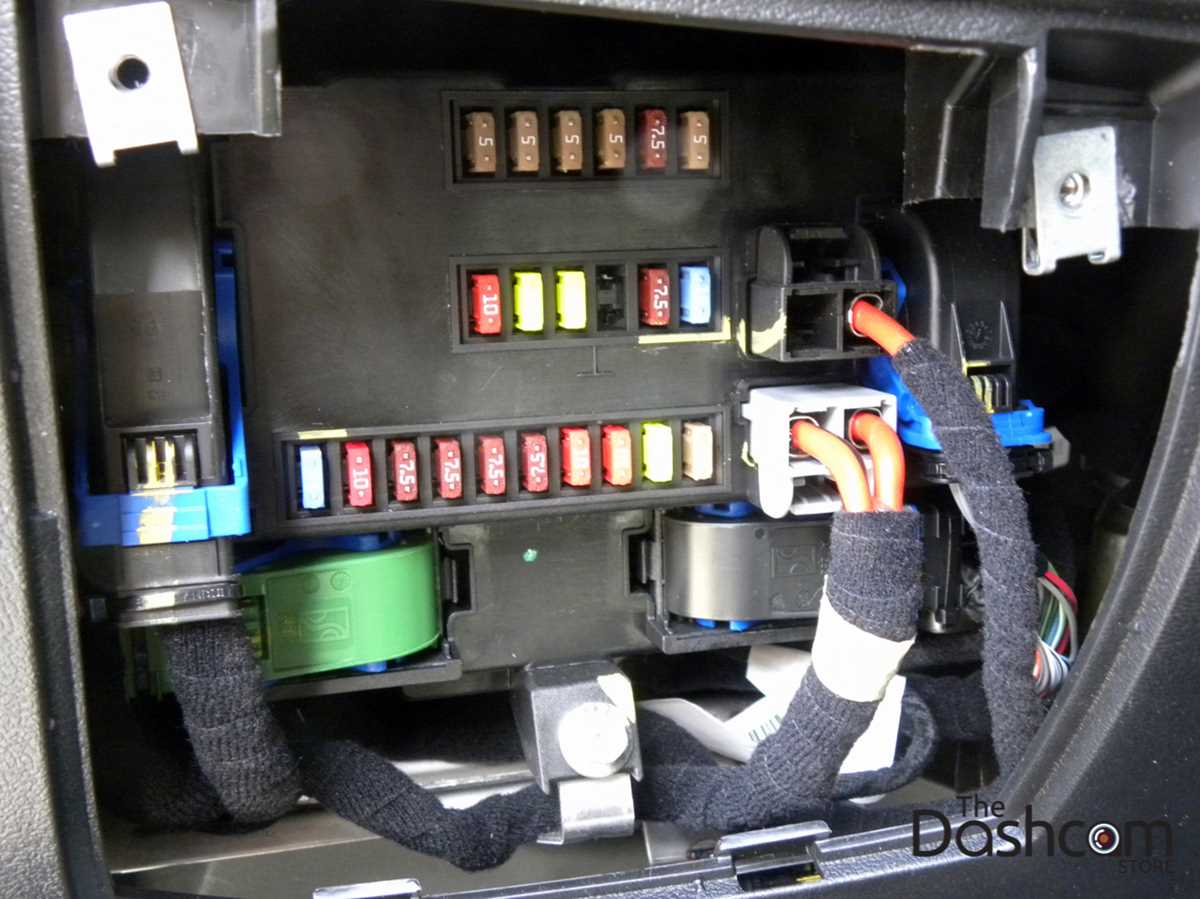

Inside the cabin, remove the lower dashboard trim panel on the driver side to reveal the secondary electrical center responsible for interior systems such as lighting, infotainment, and climate control; the panel is mounted vertically and secured with clips.
- Position: behind driver side dash cover near steering column
- Access: pull trim panel outward to release clips
- Contents: low to mid-range amperage links for interior electronics
Check both locations before troubleshooting any circuit failure, since some systems rely on components distributed between the engine compartment unit and the interior panel, requiring inspection of both areas to isolate faults accurately.
