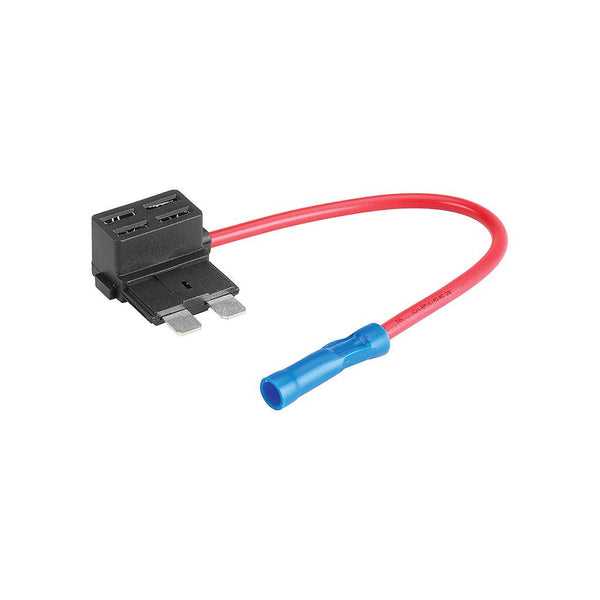

Use a compact circuit tap to safely add an extra electrical line without cutting existing wires. Select a slot in the fuse block rated for the same or higher amperage than the new accessory to prevent overheating or electrical faults.
Ensure proper orientation of the protective holder before inserting it. The input terminal should connect to the original circuit while the output leads to the new device. Avoid forcing connectors, as bent terminals can cause intermittent power loss.
Verify continuous current flow after installation using a multimeter. Test both the original and added components under load to confirm stable voltage and proper grounding. Replace holders that show excessive resistance or heat buildup during testing.
Label the new circuit clearly on the fuse panel or inside the engine bay. This practice helps with future maintenance and prevents accidental overloading when adding further accessories or replacements.
Inline Circuit Protector Installation with Wiring Details and Safety Tips
Choose a slot in the vehicle fuse block rated for the same amperage as the new accessory. Avoid using lower-rated circuits to prevent overheating and potential damage to the wiring.
Inspect terminals and connectors before installation. Ensure that metal contacts are clean and free of corrosion. Bent or dirty terminals can cause voltage drops or intermittent power loss.
Follow this step sequence for proper connection:
- Disconnect the vehicle battery to prevent short circuits.

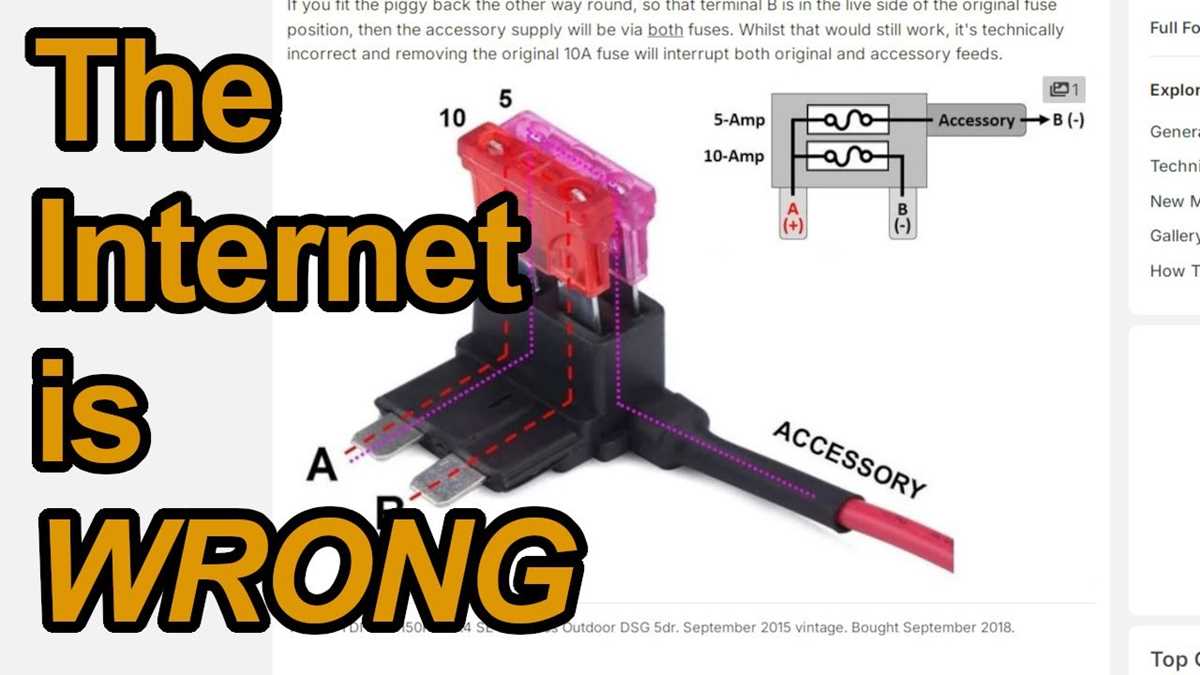

- Insert the protective holder into the selected slot, ensuring the input side aligns with the existing circuit.
- Attach the output wire to the accessory’s power input, securing with a crimp or solder connection.
- Reconnect the battery and test both the original and added circuits under load.
Verify voltage stability across the newly added line. Use a multimeter to confirm that the accessory receives consistent current and that the original circuit is not overloaded.
Label the new connection directly on the fuse panel or nearby paneling. Include amperage and date of installation for future maintenance reference.
For repeated use or multiple accessories, consider using separate protective holders for each device rather than chaining multiple lines on a single slot. This reduces heat buildup and the risk of circuit failure.
Monitor the installation during the first few operation cycles. Check for unusual heat, melted insulation, or loose terminals, and correct any issues immediately to maintain safety and reliability.
How to Identify Compatible Circuits for an Inline Circuit Protector
Select circuits with sufficient amperage capacity for the accessory you plan to add. Check the vehicle’s electrical manual for each slot’s rating, and avoid any circuit already operating near its maximum load to prevent overheating or tripping.
Test the original line under typical load using a multimeter to measure voltage and current. Ensure stable readings before connecting the additional device. Favor circuits with dedicated grounds and minimal shared connections to reduce interference and maintain consistent performance for both the existing and added components.
