Check the interior electrical panel first if power windows, radio, or cabin lights stop working, since most low-amperage circuits are grouped under the dashboard on the driver side. The cover includes a numbered layout that links each slot to a specific system, allowing quick identification without removing multiple components.
The engine compartment distribution unit, located near the battery, handles higher current loads such as cooling fans, ignition supply, and braking systems. Ratings in this area usually range from 30A to 60A. Matching slot numbers with the printed chart helps avoid disconnecting the wrong circuit.
Remove each protective element using the puller tool and inspect the metal strip inside. A broken strip confirms failure, while a continuous strip indicates the issue lies elsewhere. Always install a replacement with the same amperage value to maintain stable electrical operation.
Kia Ceed 2010 Fuse Box Diagram with Panel Locations and Circuit Details

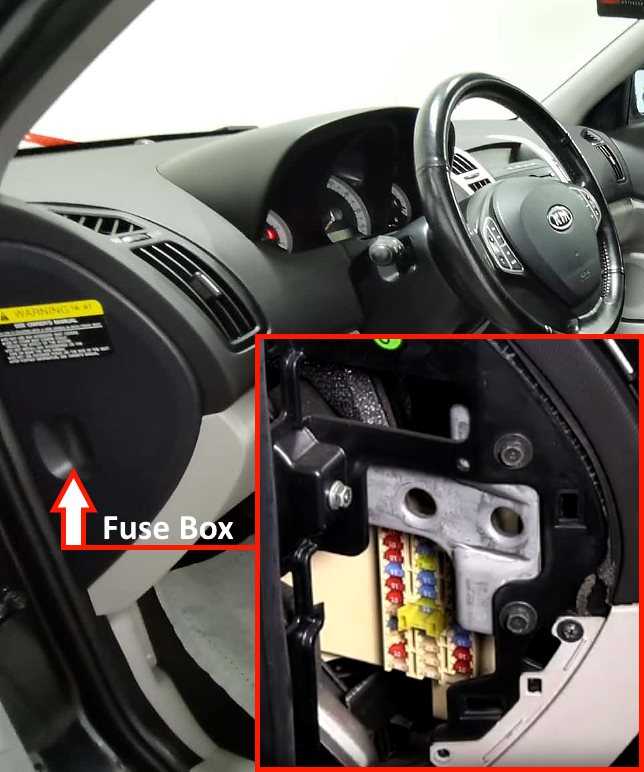

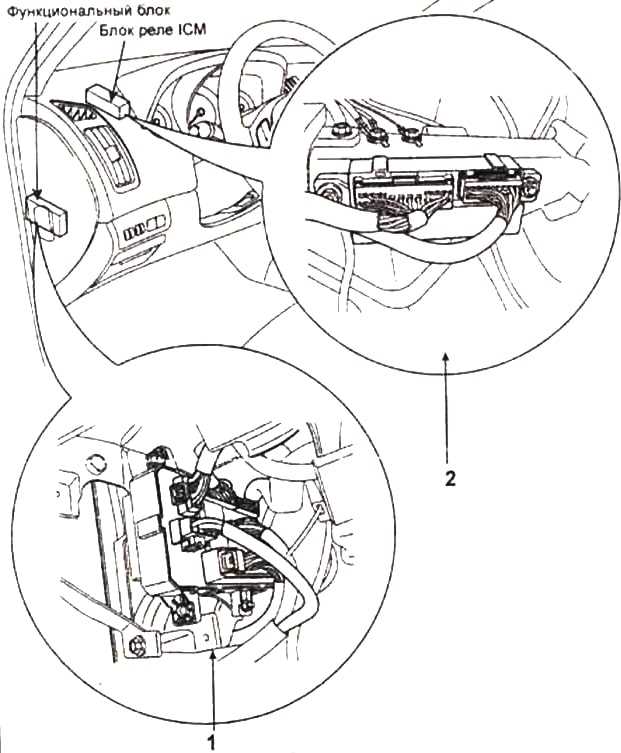

Locate the interior electrical panel under the driver-side dashboard and use the numbered layout on the cover to match each slot with its assigned system such as lighting, infotainment, and power accessories.
The engine compartment distribution unit near the battery handles higher current circuits including ignition supply, cooling fan, and ABS system, with ratings typically ranging from 30A to 60A arranged in clearly labeled rows.
Interior panel circuit assignments
- 7.5A for dashboard illumination and interior lights
- 10A for audio system and control modules
- 15A for accessory sockets and power outlets
- 20A for power windows and door locking system
Each slot number corresponds to a printed chart inside the cover, allowing quick identification without testing multiple positions.
Engine bay circuit assignments
- 30A for ignition and fuel system circuits
- 40A for radiator fan operation
- 50A for ABS module and braking control
- 60A for main electrical supply line
Remove each element with the puller tool and inspect the internal strip; a visible break indicates failure, while an intact strip points to another issue in the circuit path.
Install only the same amperage rating marked on the component to maintain stable current flow and prevent damage to connected systems.
Interior Fuse Panel Layout and Circuit Identification for Cabin Systems
Access the cabin electrical panel under the driver-side dashboard and read the numbered layout on the cover to match each slot with its assigned circuit such as interior lighting, audio system, and accessory power lines.
Slots are grouped by function and amperage, with lower values like 7.5A and 10A used for dashboard illumination and control modules, while 15A and 20A positions handle power outlets, window regulators, and door locking; identifying the correct slot before removal reduces the risk of disconnecting unrelated systems and speeds up fault tracing.
