To troubleshoot electrical issues on your tractor, begin by locating the fuse box inside the cabin. Identify the correct fuses for each circuit using the schematic provided for your model. Each fuse is linked to a specific system such as lighting, power take-off (PTO), or engine management. Use the label on the fuse box to find the corresponding fuse for the malfunctioning system.
Before replacing any fuse, ensure that the ignition is turned off. Carefully remove the fuse using pliers or a fuse puller. Check the fuse for visible damage or a broken filament. If the fuse appears intact, inspect the socket for any corrosion or loose connections, as these could also cause electrical failure.
If a blown fuse is found, replace it with one of the same rating. Do not substitute fuses with higher or lower ratings as this can cause electrical components to fail or even damage the wiring. For recurring fuse failures, inspect the associated wiring for shorts or other issues that may require further repair.
Understanding the Fuse Setup for Your Tractor
Begin by locating the main electrical block inside the cabin, usually near the driver’s seat or under the dashboard. The components are labeled with numbers that correspond to different electrical circuits. These labels are key to identifying the right fuse for the malfunctioning system. If unsure, consult the tractor’s service manual for the exact placement and labeling.
It’s important to regularly inspect this setup for any corrosion or dirt buildup, as these can prevent the correct flow of electricity. Gently clean the terminals using a soft brush and contact cleaner to ensure the electrical connections remain intact. Failing to do so could result in faulty operations, such as flickering lights or malfunctioning hydraulic controls.
If a fuse blows repeatedly, don’t just replace it; this could indicate a larger issue, such as a short circuit or an overload. Inspect the related wires carefully, looking for signs of wear or exposed cables. Often, faulty wiring can lead to continuous failures and should be addressed immediately to avoid further damage.
Lastly, always use a replacement of the exact same rating. Using a higher or lower-rated fuse can lead to damage to sensitive electrical components. Be mindful of any aftermarket accessories or modifications that may affect the electrical system, as these can also contribute to fuse issues over time.

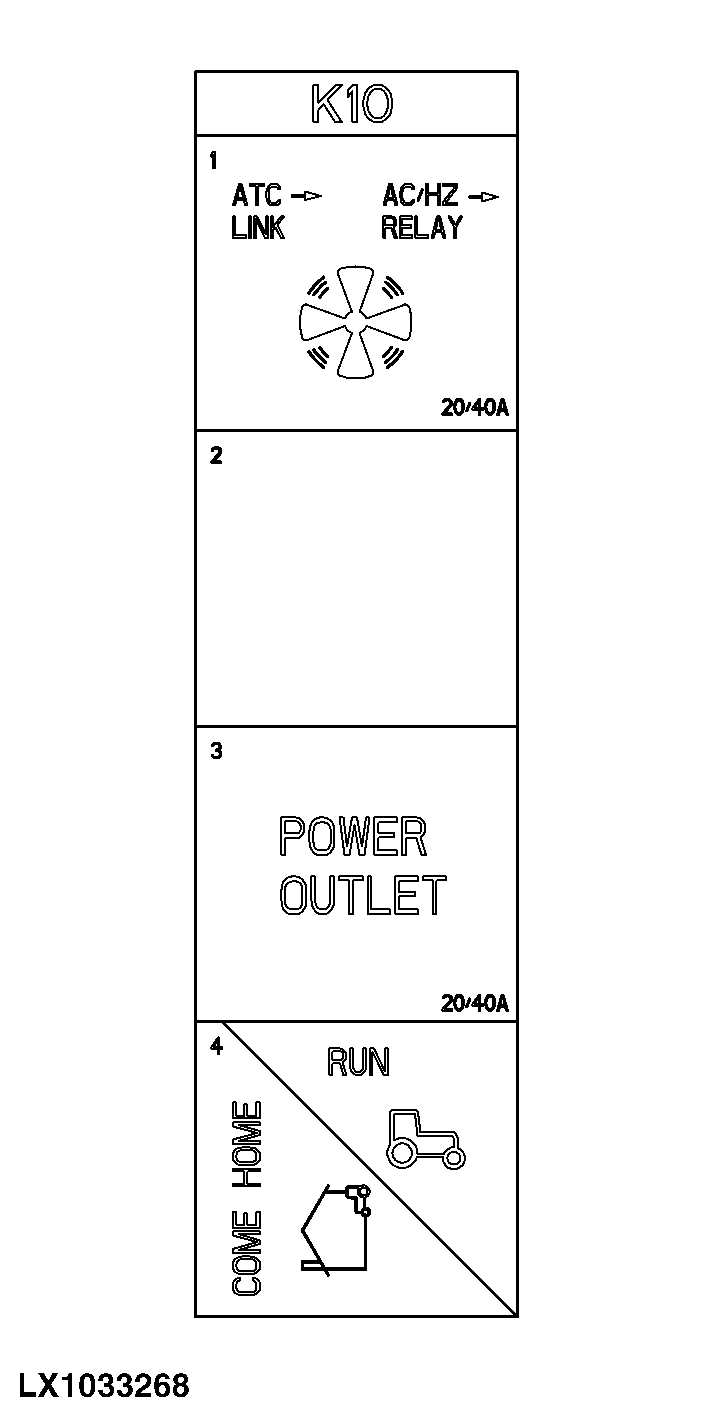

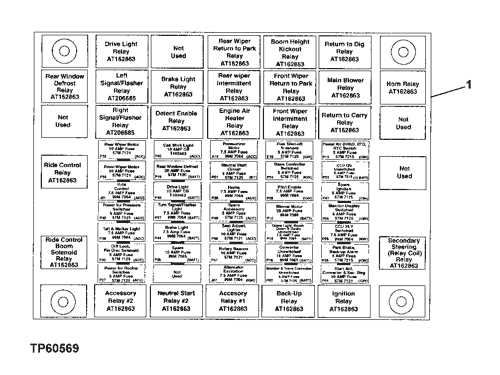

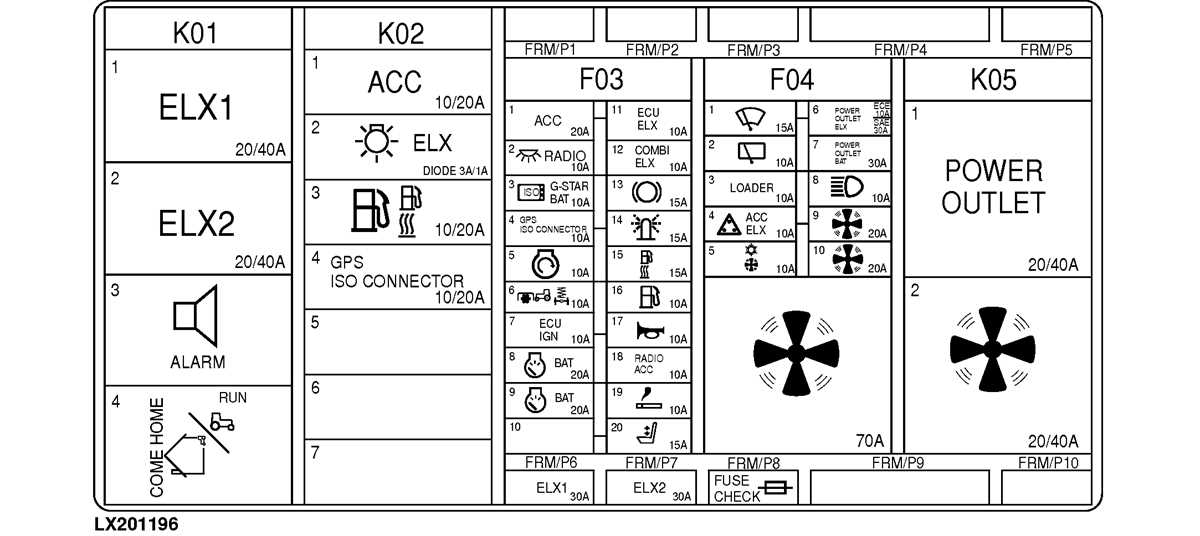

How to Identify Fuses in the John Deere 4600 Fuse Panel
To identify each component in the electrical setup, start by locating the fuse block, which is typically positioned near the driver’s seat or beneath the dashboard. Once located, you will notice small labels next to each fuse. These labels are numbered and often correspond to specific functions like lighting, engine, or other systems. Consult the user manual for a precise reference guide to these labels.
The fuse box is organized in rows, with each row dedicated to specific circuits. The first step is to visually scan the layout for any indicators like numbers or color codes. Fuses that correspond to certain systems, such as the hydraulic controls or the alternator, will have distinct markings to differentiate them from others.
Before inspecting or replacing any component, ensure that the ignition is switched off. This is important for your safety and prevents accidental electrical shorts. You can also disconnect the battery for an extra layer of protection against electrical mishaps while working with the circuits.
To determine if a fuse is blown, you can perform a simple visual check. A blown fuse typically has a broken filament inside. Alternatively, use a multimeter to check for continuity. Place the multimeter probes on both ends of the fuse. If the multimeter shows no continuity, the fuse needs replacing.
It’s critical to pay attention to the amperage rating when identifying the correct replacement fuse. The rating is usually marked on the fuse itself, indicating the maximum current it can handle. Using a fuse with a higher or lower rating can result in damage to the electrical system or cause components to malfunction.
Another method to confirm the fuse’s identity is to cross-check the fuse box label with the tractor’s wiring schematic. This schematic usually accompanies the manual or is available online through the manufacturer’s website. It will show which fuse is linked to each system, making identification much easier.
When handling the fuses, avoid using bare hands, as oil or dirt from your fingers can affect the contact points and lead to unreliable performance. Instead, use insulated tools like fuse pullers or pliers to ensure a secure grip and safe handling.
If you are unable to identify a malfunction or fuse issue through these methods, it may be worthwhile to consult a technician. Recurrent issues with fuses could be indicative of deeper electrical problems, such as faulty wiring or a malfunctioning component within the system that requires professional attention.
