Locate the main power distribution block on the driver’s side of the dashboard behind the side cover; this area contains most low-amperage links for lighting, infotainment, and control modules. Remove the trim panel carefully using hand pressure from the edge nearest the door.
Under the hood, identify the secondary power unit near the battery, which manages high-load circuits such as radiator fans, ABS, and ignition components. Check the cover label to match each numbered slot with its assigned system before removing any part.
Use a multimeter or test light to confirm current flow instead of relying on visual inspection alone. Hairline breaks inside a link may not be visible but still interrupt power, leading to issues like non-working accessories or starting problems.
Always replace with the same amperage rating, typically ranging from 5A to 40A depending on the circuit. Keep spare units in common sizes in the glove box to handle unexpected electrical interruptions during daily use.
Fuse Box Locations in 2010 Jetta with Access Instructions
Open the driver’s door and remove the side dashboard cover to reach the primary interior electrical panel; this section holds most low-amperage links for cabin systems and control modules.
Grip the edge of the trim panel and pull outward without using metal tools to avoid damage. The cover is secured with clips that release with steady pressure.
Under the hood, locate the high-current distribution unit next to the battery housing. This enclosure contains larger amperage components responsible for engine cooling, ABS, and ignition circuits.
Release the top cover by pressing the locking tabs on both sides, then lift straight up. Check the underside for a printed layout showing slot numbers and circuit assignments.
- Interior panel handles lighting, audio, and accessory ports
- Engine compartment unit supports high-load systems
- Each slot is numbered for quick identification
- Access requires no special tools in most cases
Before opening any electrical enclosure, switch off ignition and remove the key. For work in the engine bay, disconnect the negative battery terminal to reduce risk of short circuits.
- Locate the correct panel based on system affected
- Remove protective cover using hand pressure
- Identify slot by number and position
- Use a puller tool for safe removal
After inspection or replacement, reinstall covers securely to protect internal contacts from dust and moisture.

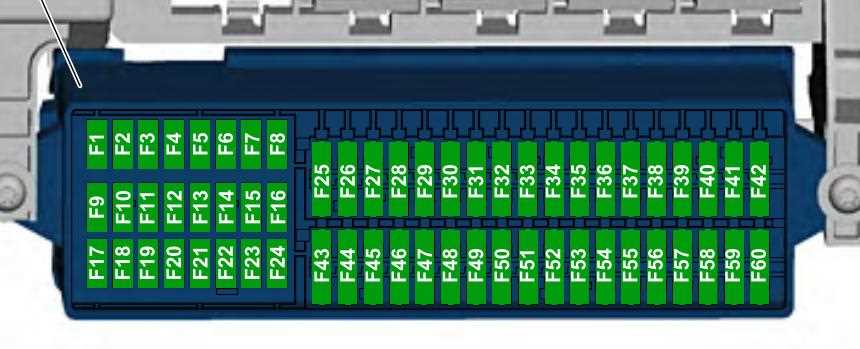

Detailed 2010 Jetta Fuse Diagram with Slot Numbers and Ratings
Match each numbered position with the table printed on the panel cover or service manual; interior slots usually range from 5A to 25A and control lighting, infotainment, климат control, and onboard electronics.
The engine compartment layout separates high-load circuits, where ratings commonly include 30A, 40A, and 50A for systems such as radiator fans, ABS pump, and ignition supply. Check both number and rating before removal to avoid confusion between adjacent positions.
Slot numbering structure
Interior panel numbering typically runs in horizontal rows from left to right, while the engine bay unit groups positions by function, placing relays in the center and higher-capacity links along the edges for heat dissipation.
Color coding provides quick identification: red for 10A, blue for 15A, yellow for 20A, green for 30A. These colors help confirm the correct replacement without reading small printed values.
Common circuit assignments
Lower-rated positions handle dashboard lights, radio, and diagnostic port, while mid-range ratings support power windows and central locking. Higher values are reserved for blower motor, rear defroster, and safety modules.
Cross-reference the slot number with its assigned circuit before testing; identical ratings may serve different systems, so position accuracy matters more than amperage alone.
Common Fuse Failures and Replacement Steps in 2010 Jetta
Check the affected circuit with a test light or multimeter before removal; voltage present on one side and absent on the other confirms a failed link inside the protective element.
Frequent issues occur in circuits powering power windows, interior lighting, and the 12V outlet due to repeated load spikes or short-term overload. Burn marks, melted plastic edges, or a broken metal strip inside the component indicate failure.
| Amperage | Common Circuit | Typical Issue |
|---|---|---|
| 10A | Interior lights | Short circuit or bulb failure |
| 15A | Audio system | Overload or wiring fault |
| 20A | Power outlet | Accessory overuse |
| 30A | Blower motor | Motor resistance increase |
Remove the damaged component using a puller tool, pulling straight without twisting to avoid loosening the socket contacts. Inspect the slot for discoloration or corrosion before installing a new part.
Install a replacement with identical amperage and color marking, then activate the related system and monitor operation; repeated failure indicates wiring damage or a faulty device drawing excessive current.
