Connect incoming power conductors to the line terminals at the top of the switch enclosure, ensuring correct polarity and secure tightening to manufacturer torque specifications. The outgoing conductors must be attached to the load side terminals, which route power to equipment such as HVAC units or compressors.
Use copper conductors rated for at least 30A service, typically 10 AWG, and verify insulation type matches installation conditions. Grounding must be attached to the designated grounding lug bonded to the metal enclosure, providing a direct path for fault current.
Install cartridge protection elements in the holder before energizing the circuit, matching the current rating specified for the connected equipment. Incorrect ratings can lead to overheating or repeated tripping under normal load conditions.
Check all terminal screws after installation, as loose connections can cause arcing, voltage drop, and heat buildup. After closing the enclosure, test voltage at both line and load sides using a multimeter to confirm proper power flow.
Eaton 30 Amp Fused Disconnect Wiring Diagram with Line Load and Ground Connections
Attach incoming supply conductors to the upper terminals marked LINE, ensuring each conductor is stripped to the correct length and fully seated under the terminal clamp. Tighten screws to the specified torque, usually indicated inside the enclosure, to prevent overheating and voltage drop.
Route outgoing conductors from the lower terminals marked LOAD directly to the equipment being powered, such as an air conditioning unit. Maintain proper color coding for phase and neutral where applicable, and avoid sharp bends that may damage insulation over time.
Connect the grounding conductor to the bonded ground lug fixed to the metal enclosure. This connection must be secure and free of paint or corrosion to provide a low-resistance path during fault conditions, reducing the risk of electric shock.
Install the cartridge protection elements into their holders before closing the switch, matching the current rating required by the connected device. Use time-delay types for motors to handle startup current without nuisance interruptions.
After completing all connections, verify continuity and voltage using a multimeter across LINE and LOAD terminals, then operate the switch handle to confirm smooth mechanical action and proper isolation when turned off.
How to Identify Line Load and Ground Terminals in Eaton 30 Amp Fused Disconnect

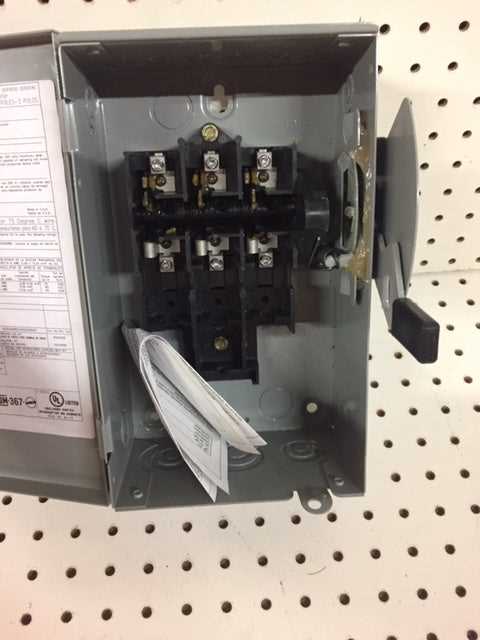

Check terminal markings stamped inside the enclosure, as LINE is typically printed near the top lugs while LOAD appears near the bottom set. These labels are often molded into the plastic or etched into the metal backplate.
Observe physical layout since incoming power almost always connects to the upper terminals feeding the switch mechanism, while outgoing conductors exit from the lower side toward the equipment.
Look for wire routing patterns already present in existing installations. Supply cables usually enter through top or rear knockouts, while outgoing cables leave through bottom openings aligned with LOAD terminals.
Identify the grounding point by locating the green screw or bonded lug attached directly to the metal enclosure. This point is separate from current-carrying terminals and connects to the grounding conductor only.
Use a multimeter to confirm terminal roles by measuring voltage: live voltage appears at LINE terminals when the switch is off, while LOAD terminals show voltage only when the switch is engaged.
Follow these quick checks:
- Top lugs = incoming supply
- Bottom lugs = outgoing circuit
- Green screw or bare metal lug = grounding point
- Cartridge holders sit between LINE and LOAD paths
Verify all identifications before energizing, since reversing supply and load can lead to unsafe servicing conditions where parts remain live even when the switch is in the off position.
