Locate the main electrical panel behind the glove compartment or under the dashboard on the driver’s side. Ensure the ignition is off before opening the cover to prevent shorts or accidental sparks.
Identify each circuit component using the labeling inside the panel cover. Keep a small reference sheet or photograph for quick checks. Pay attention to amperage ratings to match replacement elements correctly.
Check for faulty connections by visually inspecting terminals for corrosion or loose contacts. Use a multimeter to measure voltage continuity across circuits to pinpoint malfunctioning elements accurately.
Replace worn or damaged elements carefully by gently removing the component with a proper puller tool, then insert a new one with matching specifications. Always secure the panel cover after maintenance to maintain safety and prevent dust accumulation.
Electrical Panel Layout Overview
Access the main power distribution panel by opening the compartment under the driver’s side dashboard. Confirm that the ignition is off to prevent accidental shorts before handling any internal components.

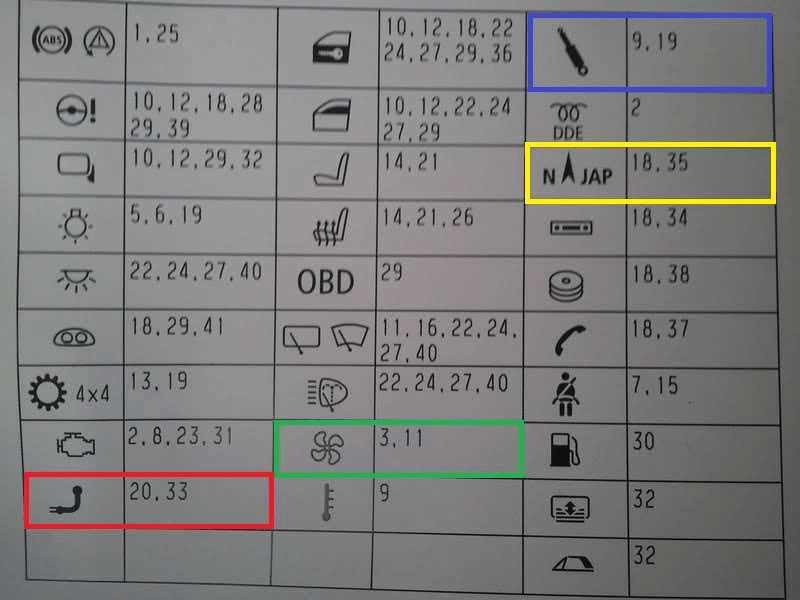

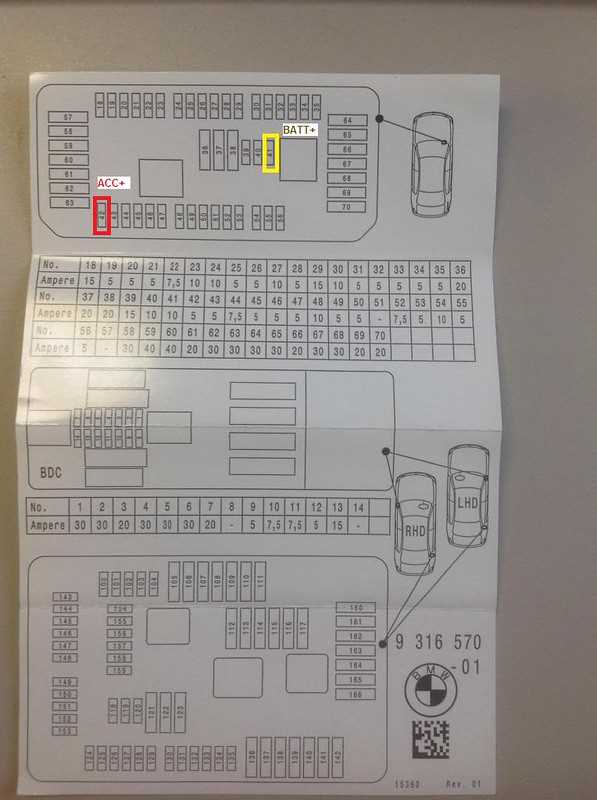

Check the position and orientation of each element using the printed guide inside the cover. Each slot is numbered and corresponds to specific circuits such as lighting, climate control, and infotainment systems.
Inspect terminals for wear or corrosion as these are common causes of intermittent failures. Light oxidation can be cleaned with a contact cleaner and a soft brush without disassembling the entire assembly.
Mark circuits that correspond to high-current components, including the air conditioning compressor and cooling fans. Replacing or testing these elements requires careful matching of amperage ratings to avoid overheating or damage.
Testing and Verification
Use a multimeter to verify continuity and voltage across each connection. Document readings for each slot to identify any discrepancies before inserting replacement elements.
Ensure proper seating of all connectors to prevent loose contacts. Panels with misaligned terminals often produce random malfunctions in interior and engine electronics.
After maintenance, close the protective cover securely and perform a functional check of all associated circuits. Run lights, wipers, and infotainment systems to confirm stable power distribution and identify any remaining faults.
Locating the Vehicle Electrical Panel and Access Points
Identify the main distribution area beneath the driver’s side dashboard or behind the glove compartment. Turn off the ignition and remove the cover carefully to avoid damaging nearby wiring.

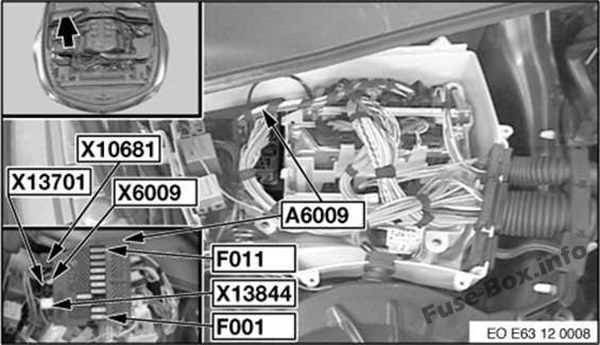

Check for secondary panels near the engine compartment and under the rear seat. These often contain high-current circuits for engine management, lighting, and auxiliary systems.
Follow these steps to locate each access point:
- Open the driver’s side lower trim panel and look for a rectangular compartment with a removable cover.
- In the glove area, slide the compartment open and locate a smaller panel secured by clips.
- Inspect under the rear seats for panels protecting rear lighting circuits and power outlets.
Mark each panel location on a small reference sheet or take a photograph. This helps quickly identify access points during troubleshooting or replacement tasks.
Check for obstructions around the panels, such as wiring harnesses or air ducts. Move these gently without pulling connectors to maintain secure connections.
Test each access by briefly removing the cover and confirming slot positions are visible and clearly labeled. Ensure proper illumination using a handheld LED flashlight for accurate inspection of internal components.
After confirming all locations, replace covers securely and note which circuits are served by each panel. This allows rapid identification of power distribution points for maintenance or emergency repairs.
