Locate the primary electrical control panel beneath the driver-side dashboard, slightly above the footwell. Ensure the ignition is off and the battery is disconnected before removing any covers. This prevents accidental short circuits or system damage.
Check for worn connectors and loose terminals around the panel. Use a small flashlight to inspect each slot, confirming wires are securely seated and insulation shows no cracks or discoloration.
Label each circuit before disconnection to maintain proper reconnection order. Utilize masking tape or numbered tags to track each lead, especially for lighting circuits, relays, and accessory power feeds.
For panels in older sedans, verify that all mounting screws and clips remain intact. Replacing any missing fasteners ensures the panel stays stable during vehicle movement and prevents vibration-related faults.
Use appropriate tools for testing each circuit, such as a multimeter or test light. Check continuity and voltage at each terminal before deciding to replace connectors or rewiring any circuit.
Document any modifications or replacements for future reference. Maintaining an accurate record simplifies troubleshooting and reduces the risk of accidental miswiring when performing maintenance or upgrades.

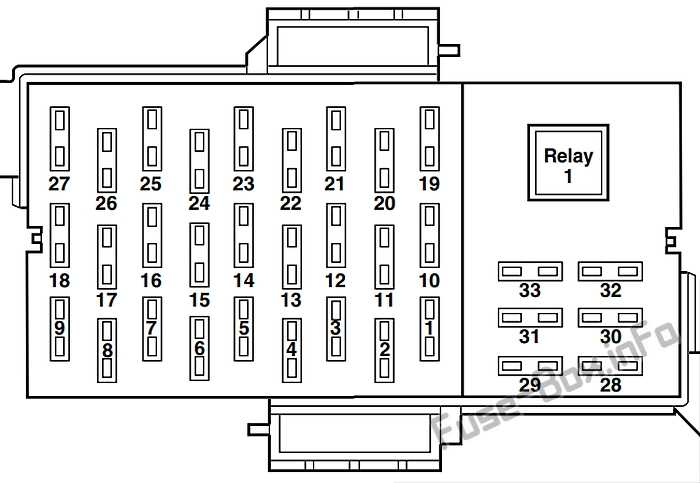

Main Electrical Panel Location and Access
Access the primary electrical panel behind the driver-side lower dashboard. Remove the protective cover by gently loosening the clips along the edges. Ensure the battery is disconnected to prevent electrical shorts before touching any terminals.
Check for any obstructing panels or panels with retaining screws that may need removal for full access. Keep a flashlight and a small mirror handy to inspect hard-to-see terminals and confirm that all connectors are properly seated before reconnecting power.
It looks like you typed just “r.” Could you clarify what you’d like me to do with that? Are you asking for something related to the previous topic, a new question, or just testing input?
Safe Connector Inspection and Replacement Procedures
Disconnect the battery terminals before handling any electrical connectors. Ensure the ignition is off to prevent accidental current flow that can damage components or cause injury.
Examine each connector for corrosion, rust, or discoloration. Replace terminals showing any sign of deterioration to maintain a reliable electrical path.
Check for loose or bent pins inside the connector housing. Straighten pins carefully using a small tool or replace the connector if alignment cannot be restored.
Inspect wire insulation near terminals for cracks, fraying, or burns. Trim damaged ends and reattach them with new connectors to prevent short circuits.
Release locking tabs gently when disconnecting connectors. Do not pull on wires directly, as this can damage the internal contacts and lead to intermittent electrical issues.
Apply a thin layer of dielectric grease to contacts before reconnecting. This prevents oxidation, enhances conductivity, and reduces heat buildup under high current loads.
After reconnection, test continuity for each circuit using a multimeter. Verify correct operation before restoring full electrical power to the vehicle.
Secure connectors and wiring with clips or ties to minimize movement and vibration. Maintain organized routing to facilitate future inspections and reduce mechanical strain on terminals.
