Corvette C5 Engine Compartment Relay Layout
Locate the power distribution panel immediately behind the passenger-side headlight. Each slot is labeled with amperage and circuit function. For headlights, cooling fans, and ignition circuits, use the 30A and 40A positions. Verify connections visually for corrosion before swapping any module to prevent shorts.
Reference the placement chart:
- Slot 1 – Headlamp high beams (20A)
- Slot 2 – Low beams (15A)
- Slot 3 – Cooling fan relay (40A)
- Slot 4 – Horn and turn signals (20A)
- Slot 5 – Fuel pump (30A)
- Slot 6 – ABS module (25A)
- Slot 7 – HVAC control (10A)
- Slot 8 – Auxiliary power (15A)
Check each terminal for tightness; loose contacts cause intermittent failures.
For diagnostics, remove the main cover and identify any burnt or discolored connectors. Keep a digital multimeter ready to trace voltage drops across terminals. Replacements should match exact amperage; using higher-rated units risks wire damage. Secure the cover firmly to prevent moisture ingress, which can trigger multiple electrical faults.
Locating the Engine Compartment Power Center in C5
Check the driver-side near the strut tower for a rectangular plastic enclosure with a removable lid; this is the primary relay and protection hub. It sits just behind the headlight assembly, slightly angled toward the firewall, making access straightforward without disassembling surrounding components.

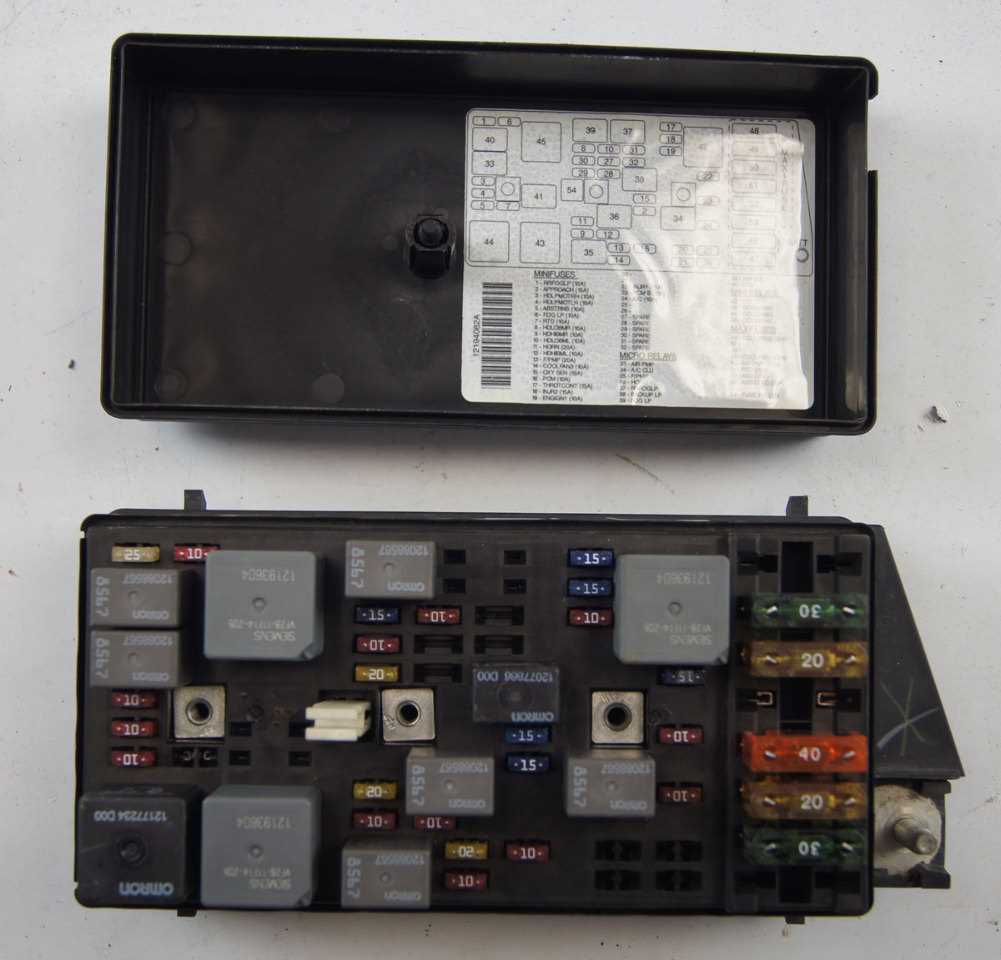

Open the cover by pressing the release tabs on either side. Inside, you’ll find an organized array of circuits, each labeled with embossed numbers and abbreviations indicating amperage and function. A compact service manual or the printed insert under the lid provides exact positions for high-current circuits like ignition, lighting, and cooling systems.
Tip: Keep a small flashlight handy and ensure the battery terminals are secure before inspecting. For models produced between 1997–2004, the enclosure layout remained consistent, allowing replacement parts to fit without modification. Avoid forcing connections, as the clips are designed for firm but gentle handling.
