Use the vehicle year before matching any slot chart, because the 2000–2006 release, the 2006–2014 update, and later versions do not share the same numbering. A blower motor issue, dead 12V outlet, silent wipers, or one failed headlamp often points to different positions across these generations. The fastest method is to confirm model year, engine type, and steering position, then compare the legend on the cover with the printed allocation list from the owner’s manual.
For cabin electrics, inspect the low-amperage links first: lighting, audio unit memory, instrument cluster, central locking, and auxiliary socket circuits usually sit in the 5A to 20A range. For under-hood systems, expect higher ratings tied to radiator fan stages, ABS, glow plugs on diesel variants, rear window heater, and engine control hardware. Never replace a blown link with a higher-rated one; if a 10A strip fails twice, the fault is usually in wiring, a motor drawing too much current, or moisture inside a connector.
A clear slot map saves time during diagnosis because the same symptom can come from two separate panels. No sound from the horn may trace to a front-compartment relay, while dead interior lights and radio presets usually send you to the passenger-compartment board. Pull each suspect part with a plastic extractor, inspect the metal bridge, and verify continuity with a multimeter; visual checks alone miss hairline breaks. For the most accurate match, use the exact trim level and production year rather than a generic Opel hatch wiring chart.
Opel/Vauxhall D-Series Electrical Panel Map: Precise Slot Positions, Amp Values, and Protected Systems
Check the cabin power panel first: it sits behind the trim cover at the left side of the dashboard, visible after opening the driver’s door. On most D-series versions, slot F6 carries 20A for the 12V front outlet, F7 uses 30A for the front wiper motor, F17 is 15A for the horn, F19 is 5A for exterior mirror control, F22 is 20A for central locking, and F26 is 7.5A for brake-light supply. If the heater fan stops working on speeds 1–4 but speed 5 still works, inspect the blower resistor and the 40A feed in the interior panel before replacing the motor itself.
The engine-bay distribution unit is mounted next to the battery under a clipped plastic lid. Typical assignments there include 60A for ABS pump supply, 30A for radiator fan low-speed circuit, 40A for fan high-speed circuit, 20A for engine management, 15A for fuel pump, and 10A for air-conditioning clutch control on cars equipped with A/C. For no-crank faults, verify the starter relay position and the high-current strip links before checking the ignition switch; a burned strip link can leave lamps and radio working while the starter remains dead.
Use the amperage printed for each slot and never fit a stronger insert to stop repeated failure. A 5A position usually protects control electronics or lighting logic, 7.5A is common for signal lines and body modules, 10A often feeds audio or climate control commands, 15A usually covers pumps or lamps, 20A supports sockets and locking motors, 30A serves wipers or fan motors, while 40A and above are reserved for heavy loads such as ABS and cooling fans. If one circuit fails after rain, inspect the left dashboard panel for moisture tracks and green corrosion on terminals; on this platform, water ingress from the scuttle area can create intermittent faults that look like a relay problem.
How to Find the Passenger Compartment and Engine Bay Fuse Boxes on a Corsa D
Open the front passenger door and look at the outer end of the dashboard, directly opposite the glove compartment. Pry off the small side trim cover with a plastic lever or a flat screwdriver wrapped in tape; behind it sits the interior electrical panel. On right-hand-drive cars, the same access point is mirrored on the driver’s side. Use the puller clipped inside the panel cover to remove inserts safely, and switch off ignition before touching any circuit protection element.
If the side cover feels stuck, pull from the notch at the lower edge rather than forcing the center. The panel is secured by plastic tabs that can crack if twisted sideways. A torch helps because the numbering is printed in small characters beside the rows. For quick orientation, the upper rows usually contain low-amperage inserts for cabin electronics, while higher-rated positions sit lower down.
Passenger Compartment Location Check
Do not search under the steering column first; on this model, the cabin distribution unit is hidden behind the dashboard end cap, not under the main lower trim. Once the cover is off, compare the position numbers stamped into the plastic frame with the lid chart or service manual. If access is tight, slide the passenger seat fully back and kneel outside the car rather than leaning across the sill, because that gives a straight view of the carrier and reduces the chance of pulling the wrong insert.

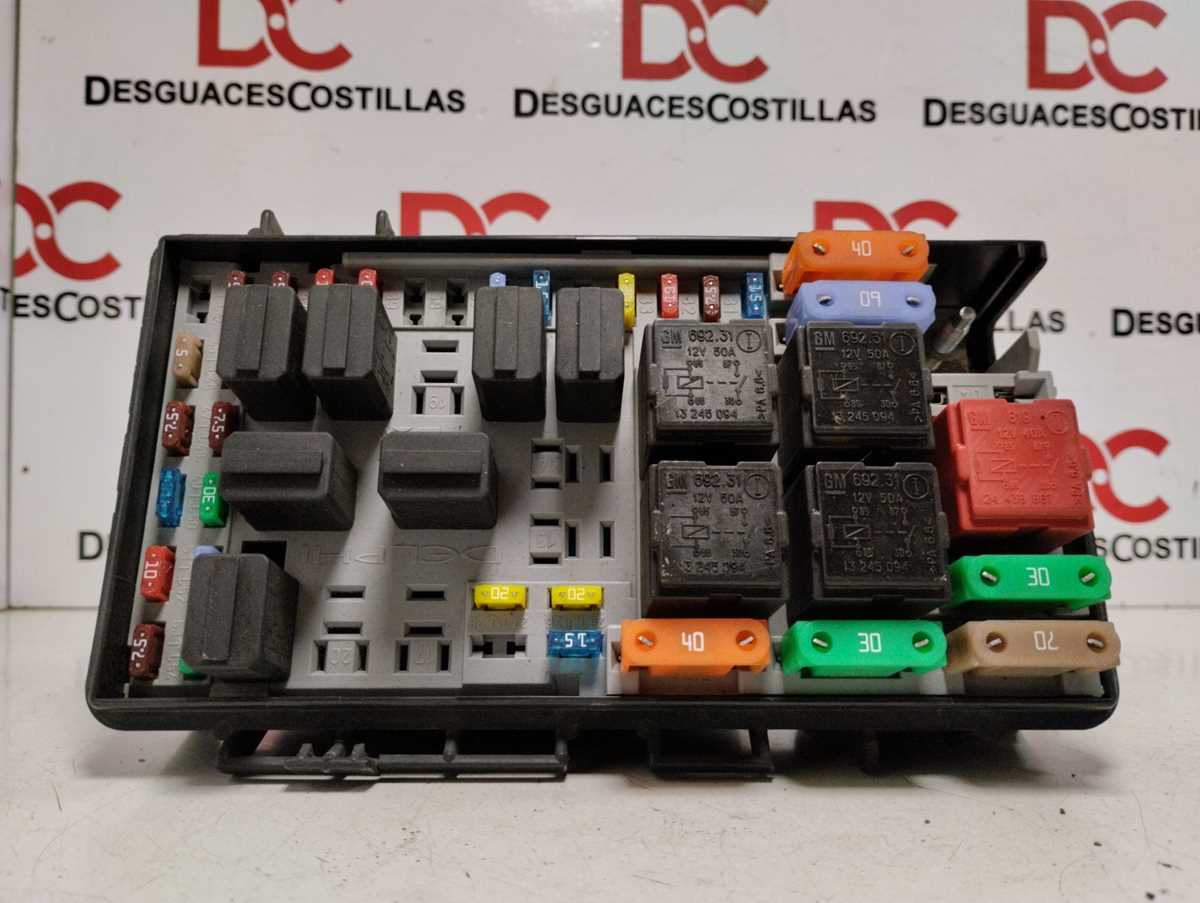

For the engine bay unit, release the bonnet, secure it with the stay, and move to the left side of the engine compartment near the battery. You will see a black rectangular housing with locking clips on its lid. Press the tabs and lift the cover vertically; on some versions, the lid needs a slight rearward movement before it comes free. This under-bonnet power distribution block usually contains higher-amperage links for cooling fan, ABS, glow plugs on diesel versions, and other heavy-load systems.
Engine Bay Access Points
Check for moisture or white-green corrosion around terminals before removing anything. Water ingress near the battery tray can affect contacts and create intermittent faults that look like a failed insert. If the lid has a sealing gasket, seat it evenly during refit; a pinched seal can let in spray and road grime. Keep the removed cover oriented the same way you found it, because many lids carry the circuit map on the inside and reversing it during inspection wastes time.
On facelift and pre-facelift versions, trim shape and lid markings may differ, but the two locations stay the same: dashboard side end cap for the cabin panel, left side of the engine compartment beside the battery for the under-bonnet unit. If you cannot identify the correct carrier, trace the thick positive cable from the battery; it leads to the main power distribution housing, while the interior assembly is always accessed through the side dashboard cover rather than through the glove compartment lining.
