Locate the interior power panel under the dashboard near the steering column and read the label on its cover to match each slot with its assigned circuit before removing anything. This prevents confusion when multiple systems stop working at once.
Cabin panel: handles lighting, dashboard cluster, audio system, and power windows. Engine compartment unit: placed near the battery, protects high-load systems such as cooling fans and ignition supply. Each insert has a color-coded rating like 10A, 15A, or 30A stamped on top.
Inspection method: pull out the suspect insert and check the metal strip inside. If it is broken or burned, replace it with the same amperage value only. A test light or multimeter can confirm power presence on both sides of the terminals.
Recurring failures indicate a wiring fault or overloaded circuit. Check connectors, ground points, and components connected to that line, such as the cigarette lighter or rear wiper motor. Avoid installing higher-rated parts, as this can overheat wires and damage insulation.
Citroen Xsara Picasso Fuse Box Diagram with Panel Locations and Circuit Mapping
Check the label inside the cabin electrical panel cover and match each numbered slot with its circuit before removing any component; this avoids disconnecting the wrong system.

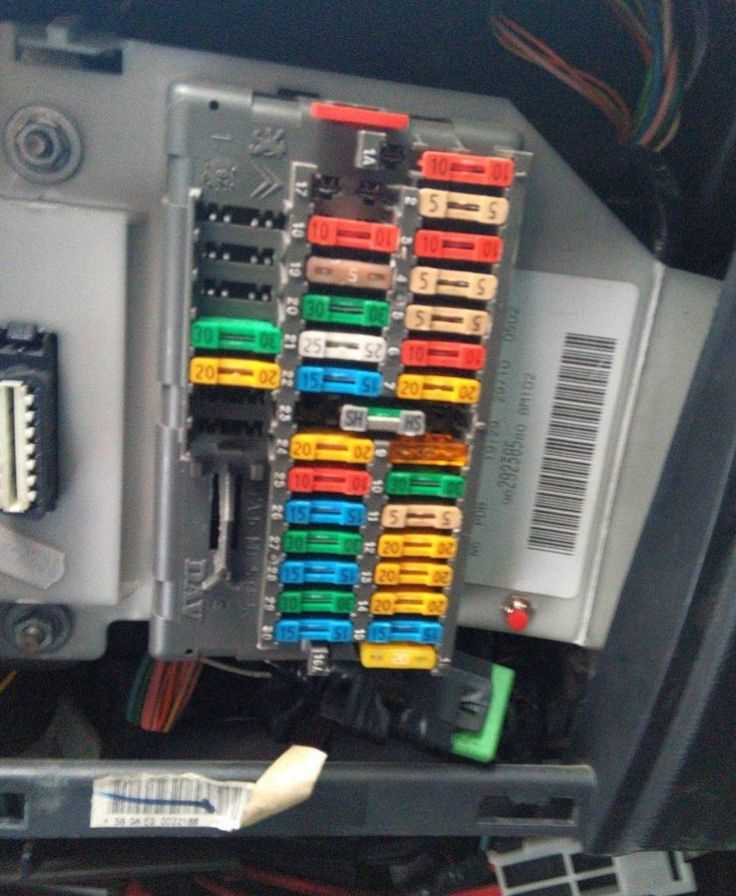

The interior panel is usually positioned beneath the dashboard on the driver side and contains low to mid-range amperage inserts responsible for interior lighting, infotainment, dashboard indicators, and window controls.
- Slot 1–5: lighting circuits and dashboard illumination
- Slot 6–10: audio system and accessory outlets
- Slot 11–15: central locking and power windows

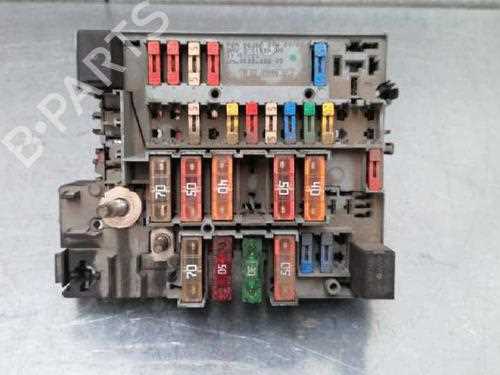

The engine compartment distribution unit sits near the battery and protects high-load systems such as radiator fans, ignition modules, and fuel delivery components.
- Large inserts rated 30A–50A handle cooling and ignition supply
- Relay positions control switching for starter motor and fan operation
- Main power links distribute current to interior circuits
Each insert uses a color code and stamped amperage value; always install the same rating to prevent overheating or wiring damage.
To verify a faulty element, use a test light across both terminals; power on one side only signals a broken internal strip.
Repeated failure in the same slot points to a short circuit, often caused by worn insulation, moisture in connectors, or overloaded accessories connected to that line.
After servicing, press every component firmly into place and close the panel cover tightly to protect contacts from dust and moisture.
Where fuse boxes are located in Citroen Xsara Picasso and how to access them

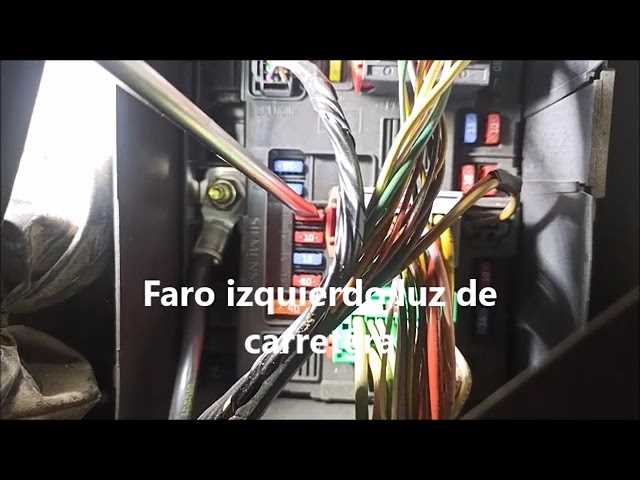

Open the driver door and remove the lower dashboard cover on the left side to reach the interior electrical panel; pull it gently to release the clips and expose the rows of inserts and relays.
Lift the hood and find the main power distribution unit next to the battery; press the locking tabs on both sides of the cover and raise it to access high-current links and switching modules for engine-related systems.
Switch off ignition before access, use the plastic puller stored inside the cover to remove inserts safely, and reinstall the protective lid tightly after inspection to keep moisture and debris away from контактов.
