Check the label inside the power distribution cover and match each slot number with its assigned circuit before removing any protective element. This prevents incorrect replacement and avoids disrupting working systems.
The vehicle uses multiple electrical centers located in the engine compartment and cabin, each responsible for different load groups such as lighting, control modules, and high-current components. Identify the correct section before testing to avoid confusion between similar layouts.
Each slot has a defined amperage rating, usually ranging from 5A to 40A depending on circuit demand. Installing a higher-rated component can overheat wiring, while a lower rating may fail during normal use. Always match the original value marked on the part.
Use a multimeter to check voltage across contacts while activating related systems like headlights or climate control. This method helps locate faults quickly and confirms whether the issue lies within the circuit or the connected component.

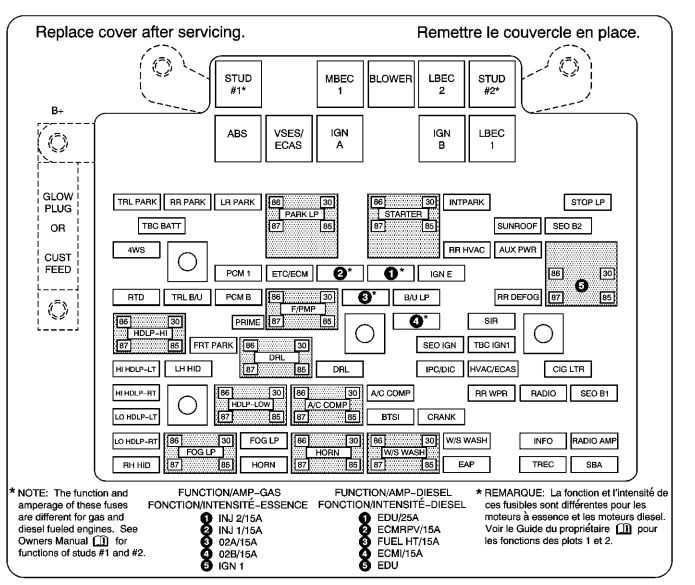

Avalanche Fuse Diagram with Relay Layout and Circuit Assignment Details
Use the cover chart inside the power distribution unit to match each slot number with its circuit before removing any protective element, ensuring correct identification of systems like lighting, control modules, and high-load components.
The layout separates circuits by function and load, with blade elements and relays grouped in a structured grid. Typical assignments include low-amperage lines for sensors and control units, mid-range ratings for lighting and outlets, and higher values for motors and actuators. Check ratings stamped on each component and confirm alignment with the printed chart to avoid wiring damage or repeated failure.
Follow this sequence during inspection:
- Locate the correct electrical center
- Match slot number with circuit function
- Verify amperage rating
- Test voltage across contacts with a multimeter

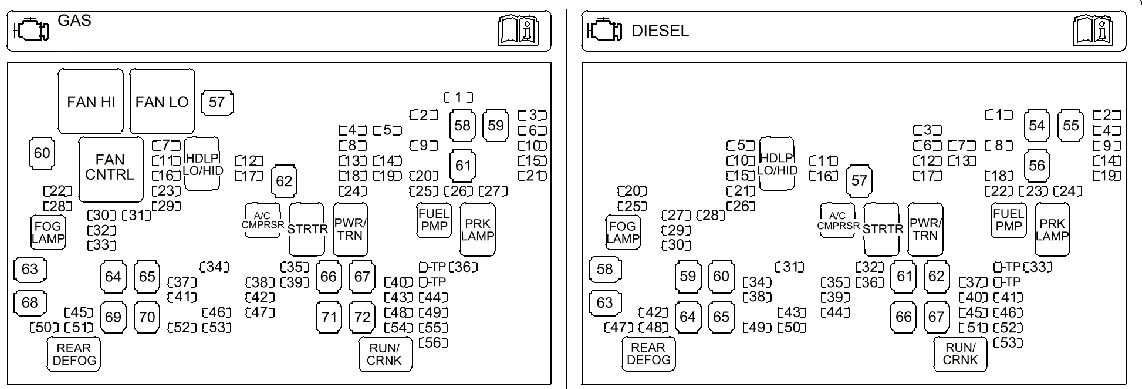

Exact Fuse Box Locations in Engine Bay and Cabin Sections
Open the engine compartment and locate the main power distribution unit near the battery on the driver side, secured by a sealed plastic cover designed to protect high-current circuits from moisture and debris.
Release the retaining clips and lift the cover to access circuits responsible for systems such as cooling fans, ABS, and engine control modules. Check the inner side of the cover for slot identification and circuit mapping.
Engine compartment placement
This unit is positioned close to the battery to reduce voltage drop and support high-load components through shorter wiring paths, minimizing resistance and heat buildup.

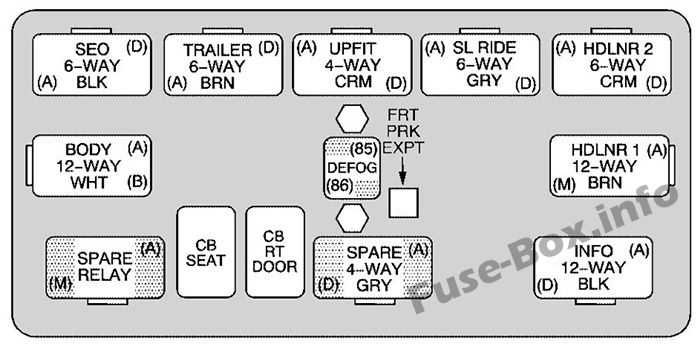

Inside the cabin, locate the secondary electrical center on the driver side dashboard edge, accessible only when the door is open. A snap-on trim panel conceals the internal layout.
Remove the cover carefully to reveal circuits linked to lighting, infotainment, and control systems. Use proper lighting to read slot numbers and assignments clearly.
Verify both locations before performing diagnostics, since confusion between these sections can lead to incorrect checks and unnecessary removal of functioning components.
